Explain why dimensional homogeneity does not guarantee the correctness of a physical equation, and determine the value of x in P = 1/2 KρAV^x using homogeneity.

Physics

ScanSolve AI Answer

Answer

3\text{3}

Step-by-step solution

6 steps
  1. State 2 reasons why the homogeneity of a physical equation does not guarantee its correctness.

    • Dimensional analysis does not account for dimensionless constants (e.g., 12\frac{1}{2}, π\pi, 2). An equation can be dimensionally correct but have the wrong numerical factor.
    • Dimensional analysis does not account for the vector nature of physical quantities. It treats all quantities as scalars, so it cannot determine if an equation correctly combines vector components or directions.
  2. Use the notion of homogeneity to determine the value of xx. The given expression is P=12KρAVxP = \frac{1}{2} K \rho A V^x. We need to find the dimensions of each term.

  1. Determine the dimensions of PP (rate of energy loss, which is power).

    $$
    [P] = [\text{Energy}] / [\text{Time}] = \text{ML}^2\text{T}^{-2} / \text{T} = \text{ML}^2\text{T}^{-3}
    $$

  2. Determine the dimensions of the terms on the right side.

    • KK is a dimensionless constant, so [K]=M0L0T0[K] = \text{M}^0\text{L}^0\text{T}^0.
    • ρ\rho is density, so [ρ]=[Mass]/[Volume]=M/L3=ML−3[\rho] = [\text{Mass}] / [\text{Volume}] = \text{M} / \text{L}^3 = \text{ML}^{-3}.
    • AA is sectional area, so [A]=[Length]2=L2[A] = [\text{Length}]^2 = \text{L}^2.
    • VV is speed, so [V]=[Length]/[Time]=LT−1[V] = [\text{Length}] / [\text{Time}] = \text{LT}^{-1}.
  3. Substitute these dimensions into the given expression and equate the dimensions of both sides.

    $$
    [P] = [K] [\rho] [A] [V]^x
    $$
    $$
    \text{ML}^2\text{T}^{-3} = (\text{M}^0\text{L}^0\text{T}^0) (\text{ML}^{-3}) (\text{L}^2) (\text{LT}^{-1})^x
    $$

  4. Simplify the dimensions on the right side.

    $$
    \text{ML}^2\text{T}^{-3} = \text{M}^{1} \text{L}^{-3+2+x} \text{T}^{-x}
    $$
    $$
    \text{ML}^2\text{T}^{-3} = \text{M}^{1} \text{L}^{-1+x} \text{T}^{-x}
    $$

  5. Equate the exponents of each fundamental dimension (M, L, T) on both sides.

    For M: $1 = 1$
    For L: $2 = -1+x$
    For T: $-3 = -x$

  6. Solve for xx using the equations from Step 5.

    From the T exponents:
    $$
    -3 = -x \implies x = 3
    $$
    Verify with the L exponents:
    $$
    2 = -1+x
    $$
    $$
    2 = -1+3
    $$
    $$
    2 = 2
    $$
    The value of $x$ is consistent.

    The value of $x$ is $\boxed{\text{3}}$.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

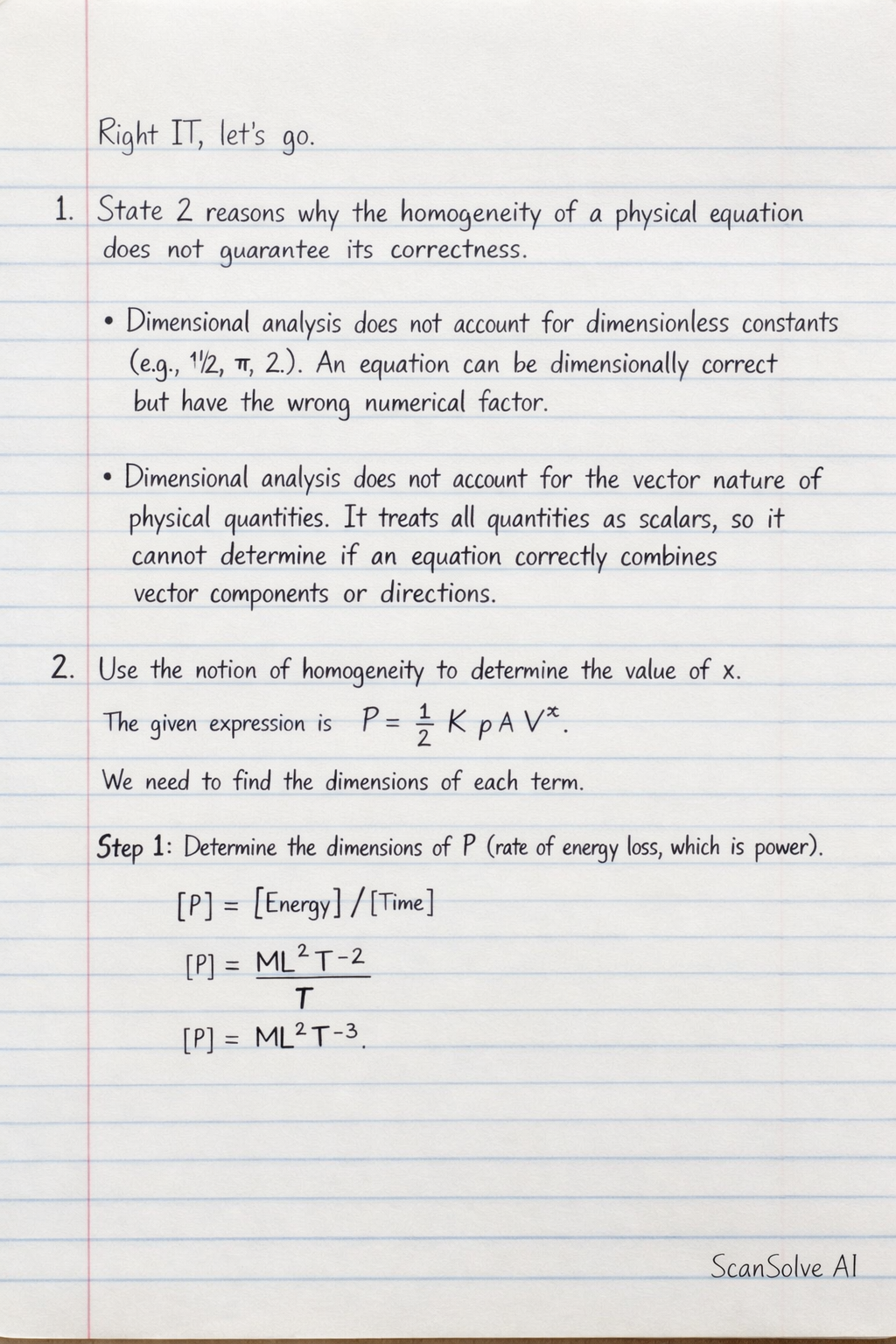

Handwritten step-by-step solution preview
