Calculate the equivalent resistance of the two parallel resistors (R_p).
This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.
ScanSolve AI Answer
tahellemadenko01, let's knock this out.

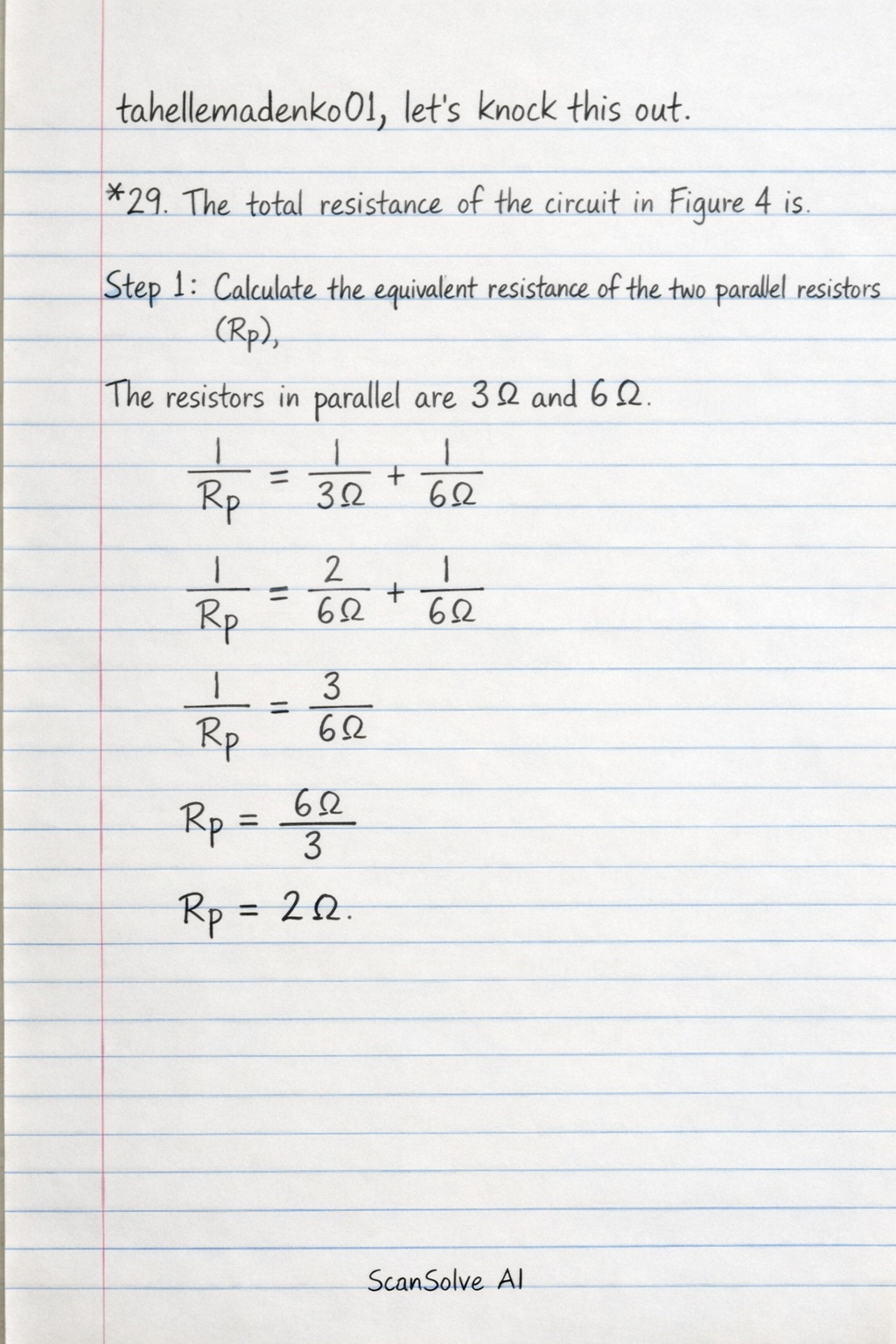

29. The total resistance of the circuit in Figure 4 is
Step 1: Calculate the equivalent resistance of the two parallel resistors ($R_p$).
The resistors in parallel are $3 \text{ Ω}$ and $6 \text{ Ω}$.
$$\frac{1}{R_p} = \frac{1}{3 \text{ Ω}} + \frac{1}{6 \text{ Ω}}$$
$$\frac{1}{R_p} = \frac{2}{6 \text{ Ω}} + \frac{1}{6 \text{ Ω}}$$
$$\frac{1}{R_p} = \frac{3}{6 \text{ Ω
