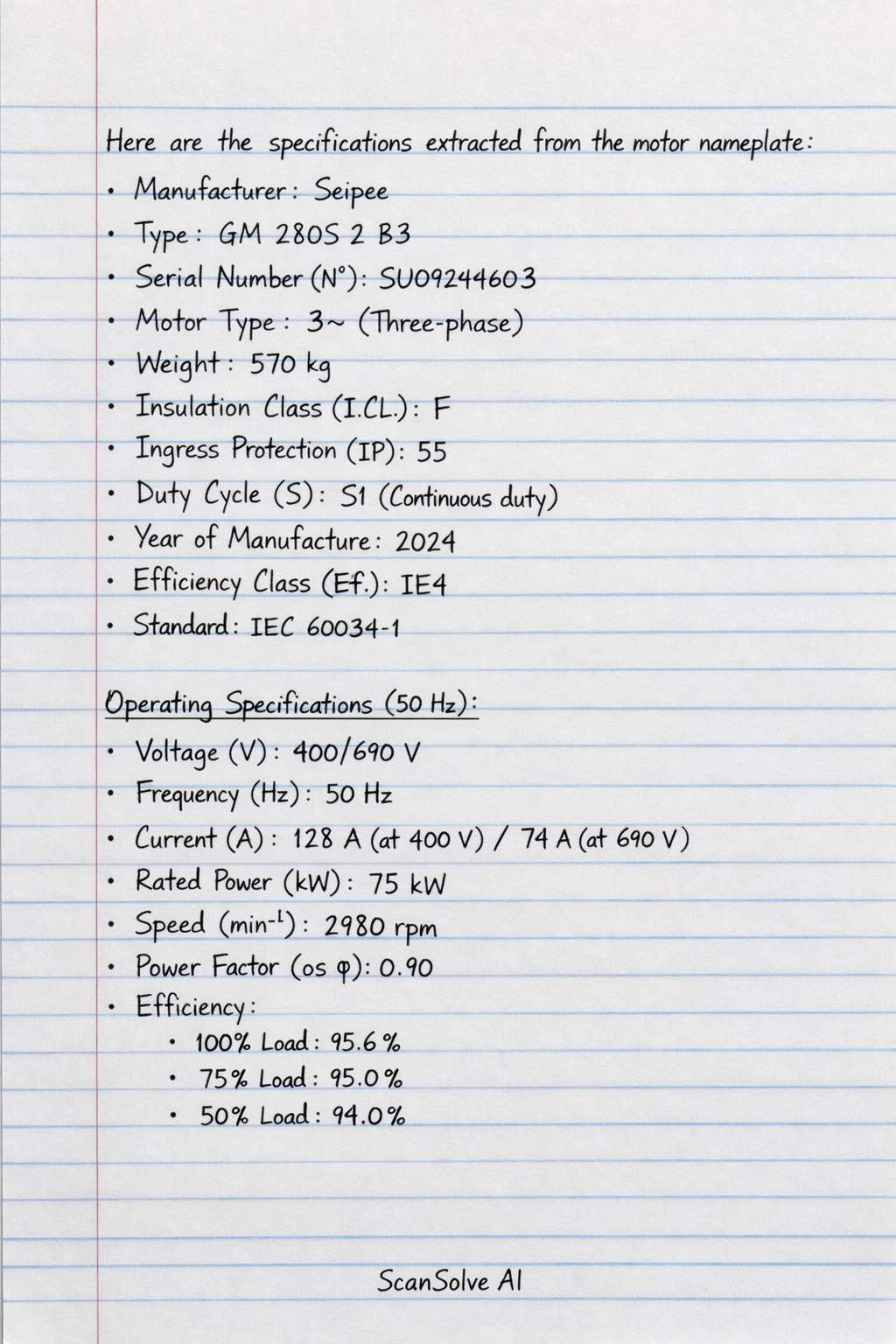

Here are the specifications extracted from the motor nameplate: Manufacturer: Seipee Type: GM 280S 2 B3 Serial Number (N°): SU09244603 Motor Type: 3~ (Three-phase) Weight: 570 kg Insulation Class (I.CL.): F Ingress Protection (IP): 55 Duty Cycle (S): S1 (Continuous duty) Year of Manufacture: 2024 Efficiency Class (Eff.): IE4 Standard: IEC 60034-1 Operating Specifications (50 Hz): Voltage (V): 400/690 V Frequency (Hz): 50 Hz Current (A): 128 A (at 400 V) / 74 A (at 690 V) Rated Power (kW): 75 kW Speed (min⁻¹): 2980 rpm Power Factor (cos φ): 0.90 Efficiency: 100% Load: 95.6% 75% Load: 95.0% 50% Load: 94.0% Operating Specifications (60 Hz): Voltage (V): 460 V Frequency (Hz): 60 Hz Current (A): 120 A Rated Power (kW): 90.3 kW Speed (min⁻¹): 3575 rpm Power Factor (cos φ): 0.89 Efficiency: 100% Load: 95.4% 75% Load: 95.0% 50% Load: 94.0% Send me the next one 📸
