Plot a graph with voltage (V) on the vertical axis and current (I) on the horizontal axis. (ii) Determine the slope of the graph. (iii) State the significance of the slope.

Physics

ScanSolve AI Answer

Answer

b(ii)

5.0 Ω5.0 \, \Omega

Step-by-step solution

3 steps

Part a

The tabulated results are:

Current (I) / A0.100.200.300.400.50
Voltage (V) / V0.501.001.502.002.50

Part b(i)

To plot the graph

  1. Draw two perpendicular axes.
  2. Label the vertical axis "Voltage (V)" and the horizontal axis "Current (I)".
  3. Choose appropriate scales for both axes. For example, for current, 1 cm could represent 0.05 A, and for voltage, 1 cm could represent 0.25 V.
  4. Plot each pair of (Current, Voltage) readings as a point on the graph: (0.10, 0.50), (0.20, 1.00), (0.30, 1.50), (0.40, 2.00), (0.50, 2.50).
  5. Draw a straight line of best fit through the plotted points.

Part b(ii)

5.0 Ω5.0 \, \Omega

To determine the slope of the graph

  1. Choose two distinct points on the straight line of best fit.

    Using the points from the table, for example, (I1,V1)=(0.10 A,0.50 V)(I_1, V_1) = (0.10 \text{ A}, 0.50 \text{ V}) and (I2,V2)=(0.50 A,2.50 V)(I_2, V_2) = (0.50 \text{ A}, 2.50 \text{ V}).

  2. Calculate the change in voltage (ΔV\Delta V) and the change in current (ΔI\Delta I).

    ΔV=V2−V1=2.50 V−0.50 V=2.00 V\Delta V = V_2 - V_1 = 2.50 \text{ V} - 0.50 \text{ V} = 2.00 \text{ V} ΔI=I2−I1=0.50 A−0.10 A=0.40 A\Delta I = I_2 - I_1 = 0.50 \text{ A} - 0.10 \text{ A} = 0.40 \text{ A}

  3. Calculate the slope using the formula Slope=ΔVΔI\text{Slope} = \frac{\Delta V}{\Delta I}.

    Slope=2.00 V0.40 A=5.0VA\text{Slope} = \frac{2.00 \text{ V}}{0.40 \text{ A}} = 5.0 \frac{\text{V}}{\text{A}} Slope=5.0 Ω\text{Slope} = \boxed{5.0 \, \Omega}

Part b(iii)

The significance of the slope

The slope of the Voltage (V) versus Current (I) graph represents the resistance of the conductor.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QRead and record the voltage and the corresponding current readings. Tabulate the results. Plot a…QUsing the provided graph, estimate V when I = 10.0 A, estimate I when V = 8.0 V, and determine the…QDraw a graph of Voltage vs. Current for the given series data and calculate its slope.QState Ohm's law. (ii) Describe how to plot a V-I graph given the data table. (iii) Calculate the…QPlot a graph of V as ordinate against I as abscissa and calculate its slope (2).
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

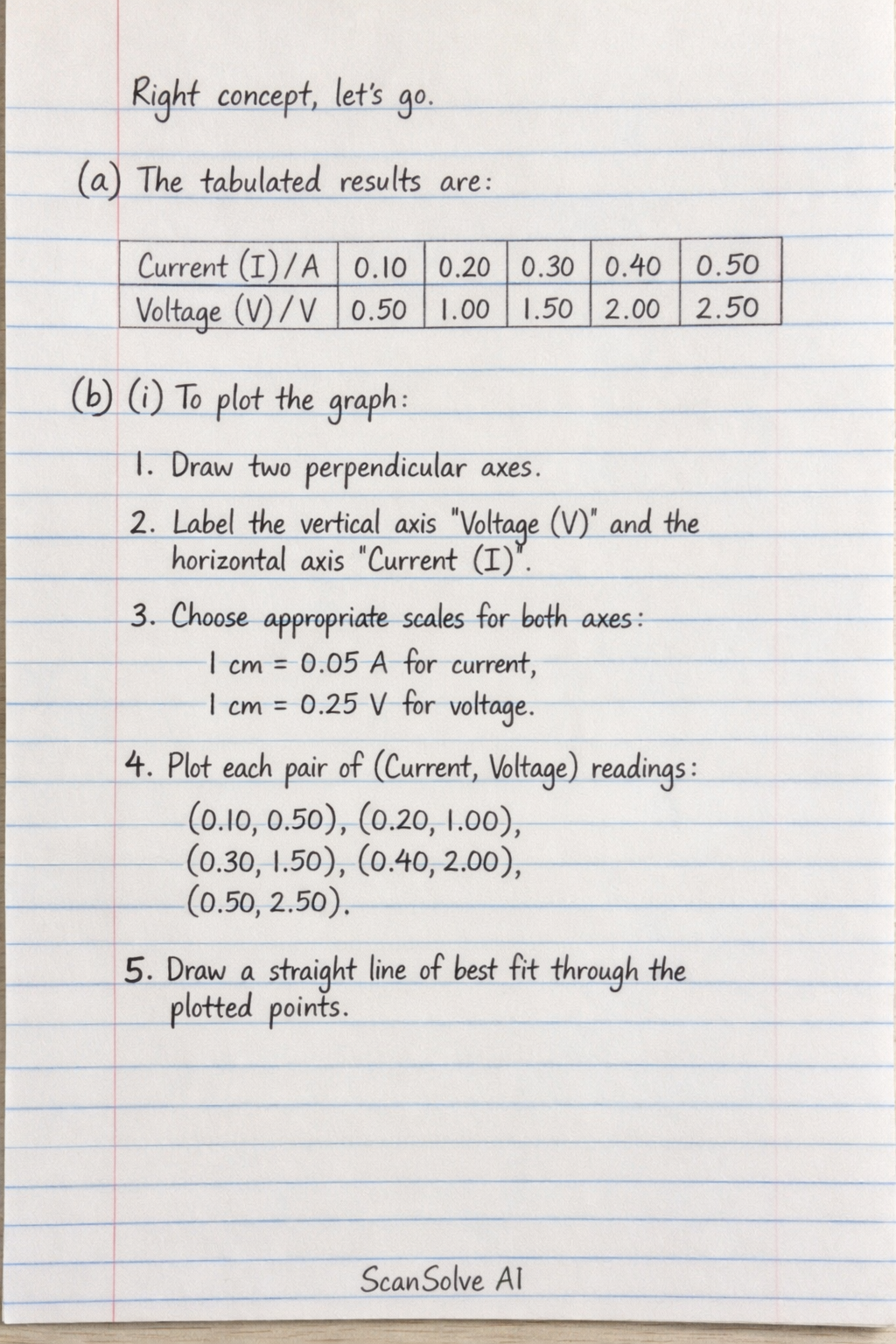

Handwritten step-by-step solution preview
