We read your photo as:

Identify the device used to store electric charges.

Physics

ScanSolve AI Answer

Answers

3 parts
a

–||–\text{--} \text{|} \text{|} \text{--}

b(i)

11100 shillings\text{11100 shillings}

b(ii)

740 days\text{740 days}

Step-by-step solution

7 steps

Here are the solutions for the questions:

Part a· 2 steps

  1. Identify the device used to store electric charges.

    A device used to store electric charges is a capacitor.

  2. Draw the circuit symbol for a capacitor.

    The circuit symbol for a capacitor is:

    –||–\boxed{ \text{--} \text{|} \text{|} \text{--} }

    Function: A capacitor stores electrical energy in an electric field between two conductive plates.

Part b(i)

11100 shillings\text{11100 shillings}

**The total cost of energy bought.

  1. Identify the amount of energy bought and the cost per unit.

    Energy bought = 7400 units.
    Cost per unit = 1.50 shillings.

  2. Calculate the total cost.

    Total Cost=Energy bought×Cost per unit\text{Total Cost} = \text{Energy bought} \times \text{Cost per unit} Total Cost=7400 units×1.50 shillings/unit\text{Total Cost} = 7400 \text{ units} \times 1.50 \text{ shillings/unit} Total Cost=11100 shillings\text{Total Cost} = 11100 \text{ shillings}

    The total cost of energy bought is 11100 shillings\boxed{\text{11100 shillings}}.

Part b(ii)

740 days\text{740 days}

**The number of days the heater can be used.

  1. Calculate the energy consumed by the heater per day.

    Power of heater (PP) = 2 kW.
    Time used per day (tt) = 5 hours.
    Energy consumed per day (EdayE_{\text{day}}) = P×tP \times t.

    Eday=2 kW×5 h=10 kWh/dayE_{\text{day}} = 2 \text{ kW} \times 5 \text{ h} = 10 \text{ kWh/day}

  2. Identify the total energy available.

    Total energy available (EtotalE_{\text{total}}) = 7400 units = 7400 kWh.

  3. Calculate the number of days the heater can be used.

    Number of days=EtotalEday\text{Number of days} = \frac{E_{\text{total}}}{E_{\text{day}}} Number of days=7400 kWh10 kWh/day\text{Number of days} = \frac{7400 \text{ kWh}}{10 \text{ kWh/day}} Number of days=740 days\text{Number of days} = 740 \text{ days}

    The heater can be used for 740 days\boxed{\text{740 days}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QWhich of the following options correctly describes the materials that can store electrical energy?QAn electroscope has a sharp pin attached to its top. Part (b) asks for observations and explanations…QWhich of the following statements about electric charge is true?QExplain the main objectives of Electrostatics, including identification of charges, uses of an…QWhat prove that do you have that you have contracted a functional eletric cell
Browse by topic:Electromagnetism
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

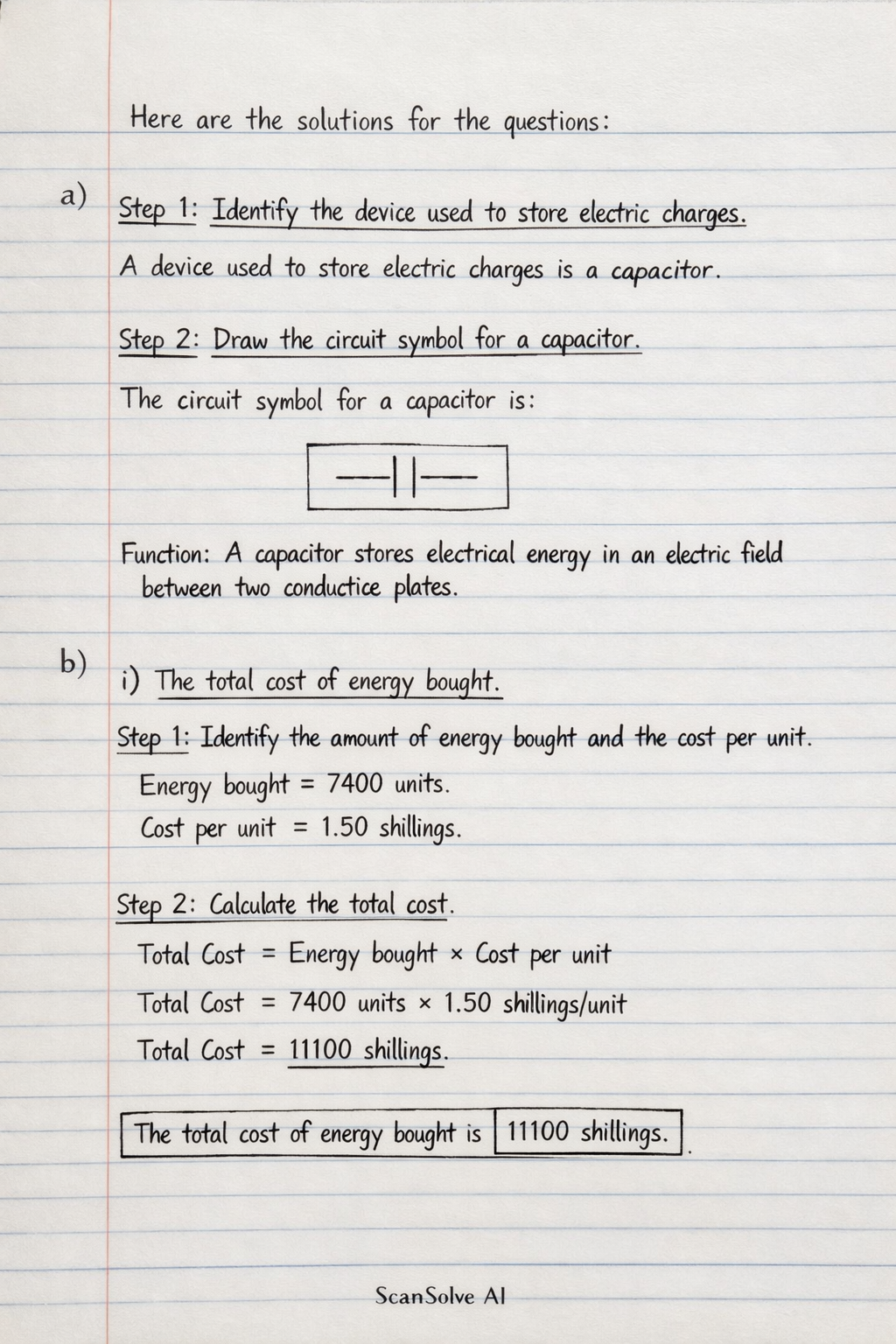

Handwritten step-by-step solution preview
