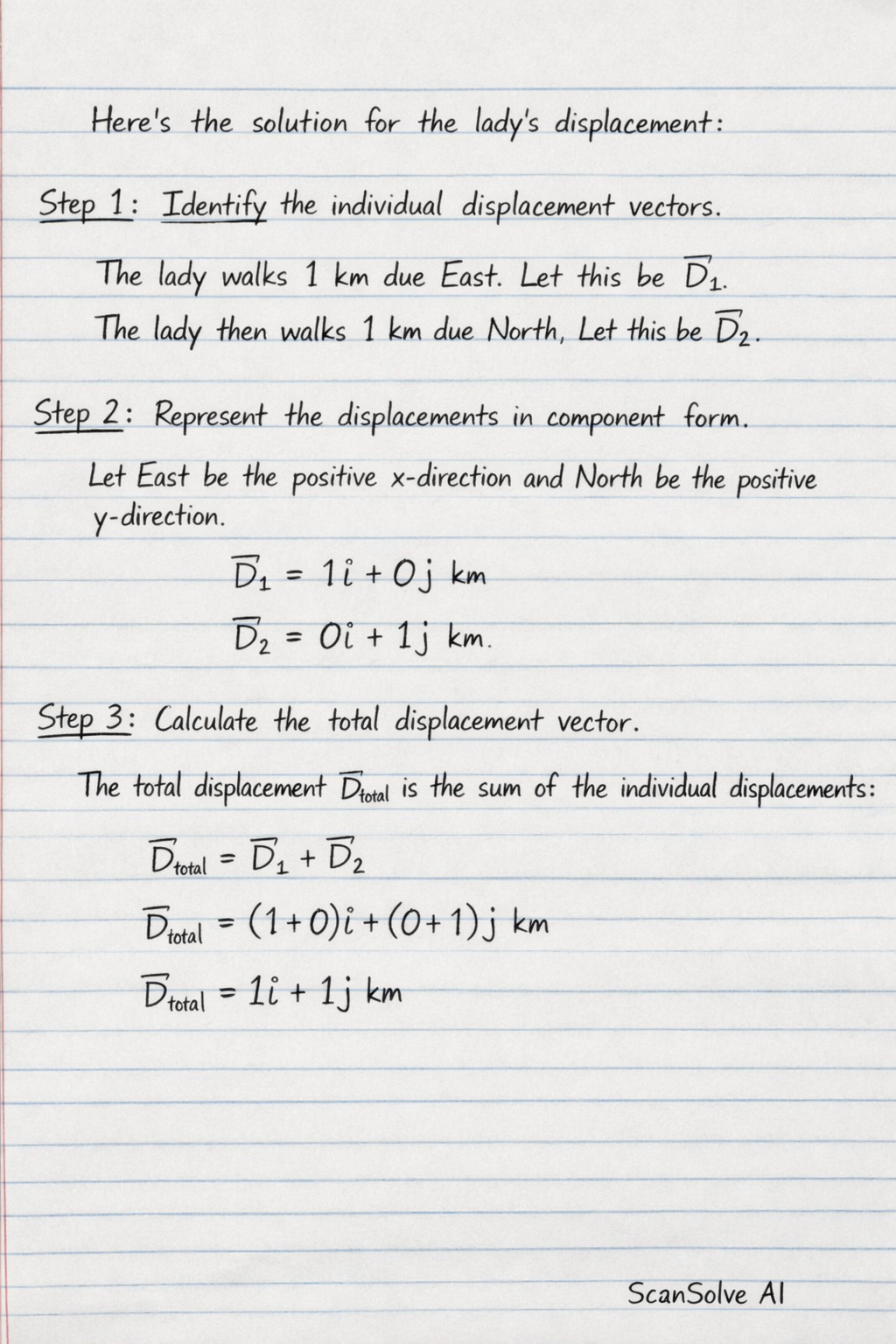

Here's the solution for the lady's displacement:

Identify the individual displacement vectors.
The lady walks 1 km due East. Let this be $\mathbf{D_1}$ .
The lady then walks 1 km due North. Let this be $\mathbf{D_2}$ .
Represent the displacements in component form.
Let East be the positive x-direction and North be the positive y-direction.
$\mathbf{D_1} = 1\mathbf{i} + 0\mathbf{j} \text{ km}$ $\mathbf{D_2} = 0\mathbf{i} + 1\mathbf{j} \text{ km}$
Calculate the total displacement vector.
The total displacement $\mathbf{D_{total}}$ is the sum of the individual displacements:
$\mathbf{D_{total}} = \mathbf{D_1} + \mathbf{D_2}$ $\mathbf{D_{total}} = (1+0)\mathbf{i} + (0+1)\mathbf{j} \text{ km}$ $\mathbf{D_{total}} = 1\mathbf{i} + 1\mathbf{j} \text{ km}$
Calculate the magnitude of the total displacement.
The magnitude of the total displacement is found using the Pythagorean theorem:
$|\mathbf{D_{total}}| = \sqrt{(1 \text{ km})^2 + (1 \text{ km})^2}$ $|\mathbf{D_{total}}| = \sqrt{1 + 1} \text{ km}$ $|\mathbf{D_{total}}| = \sqrt{2} \text{ km}$ $|\mathbf{D_{total}}| \approx 1.414 \text{ km}$
Calculate the direction of the total displacement.
The direction $\theta$ is found using the arctangent function:
$\theta = \arctan\left(\frac{\text{North component}}{\text{East component}}\right)$ $\theta = \arctan\left(\frac{1 \text{ km}}{1 \text{ km}}\right)$ $\theta = \arctan(1)$ $\theta = 45^\circ$
Since both components are positive, the direction is $45^\circ$ North of East.

The lady's displacement is $1.414 \text{ km at } 45^\circ \text{ North of East}$ .
