Solve it without values

Physics

ScanSolve AI Answer

Step-by-step solution

3 steps

  1. Define the forces and angle.

    Let the magnitudes of the two forces be F1F_1 and F2F_2. Let the angle between these two forces be θ\theta.

  2. Calculate the magnitude of the resultant force.

    According to the parallelogram law of forces, the magnitude of the resultant force RR is given by the formula:

    R=F12+F22+2F1F2cos⁡θR = \sqrt{F_1^2 + F_2^2 + 2F_1F_2 \cos \theta}

  3. Calculate the direction of the resultant force.

    Let α\alpha be the angle that the resultant force RR makes with the force F1F_1. This angle can be found using the formula:

    tan⁡α=F2sin⁡θF1+F2cos⁡θ\tan \alpha = \frac{F_2 \sin \theta}{F_1 + F_2 \cos \theta}

    Therefore, the angle α\alpha is:

    α=arctan⁡(F2sin⁡θF1+F2cos⁡θ)\alpha = \arctan \left( \frac{F_2 \sin \theta}{F_1 + F_2 \cos \theta} \right)
Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QSolve in simple wayQSolve it for me
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

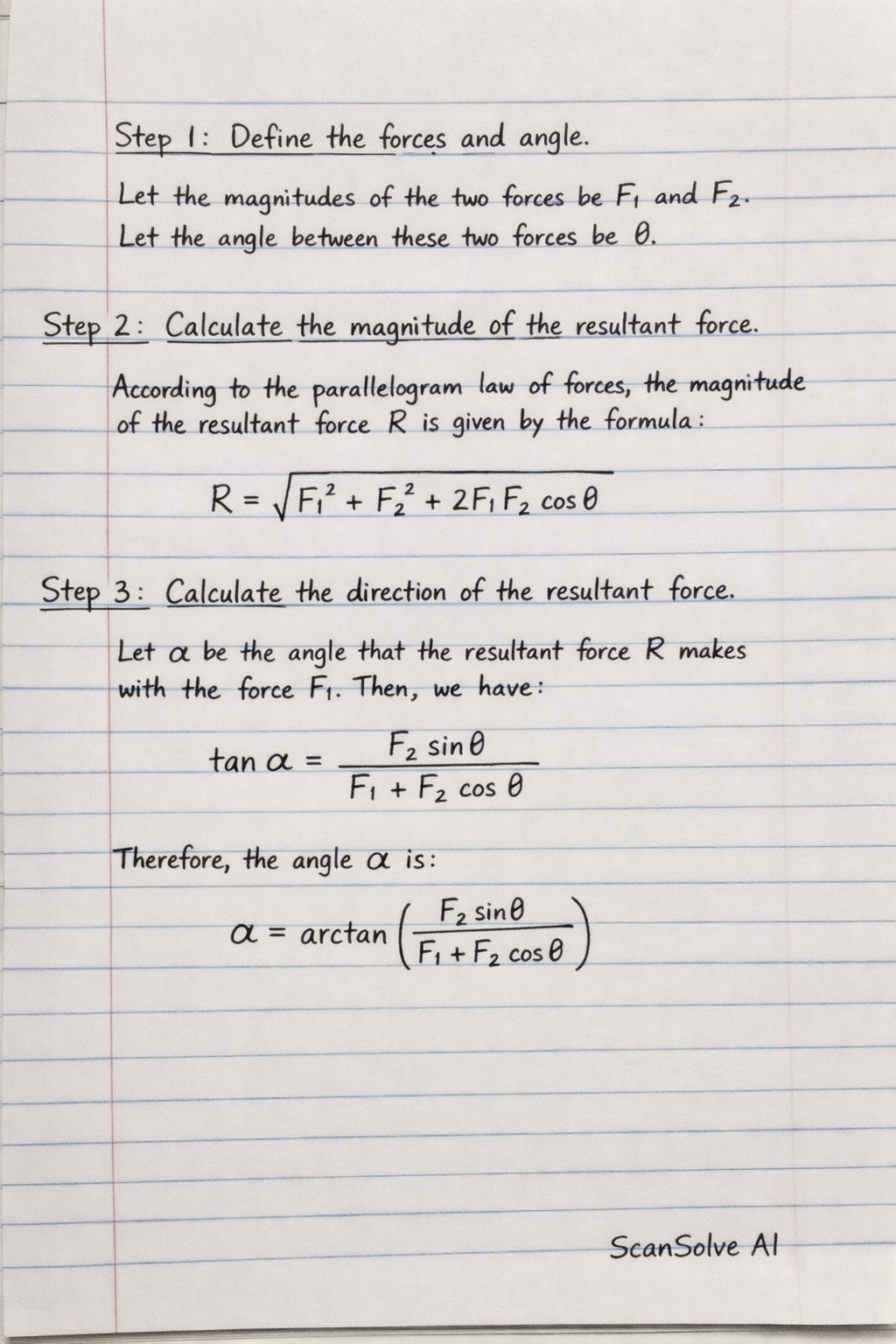

Handwritten step-by-step solution preview
