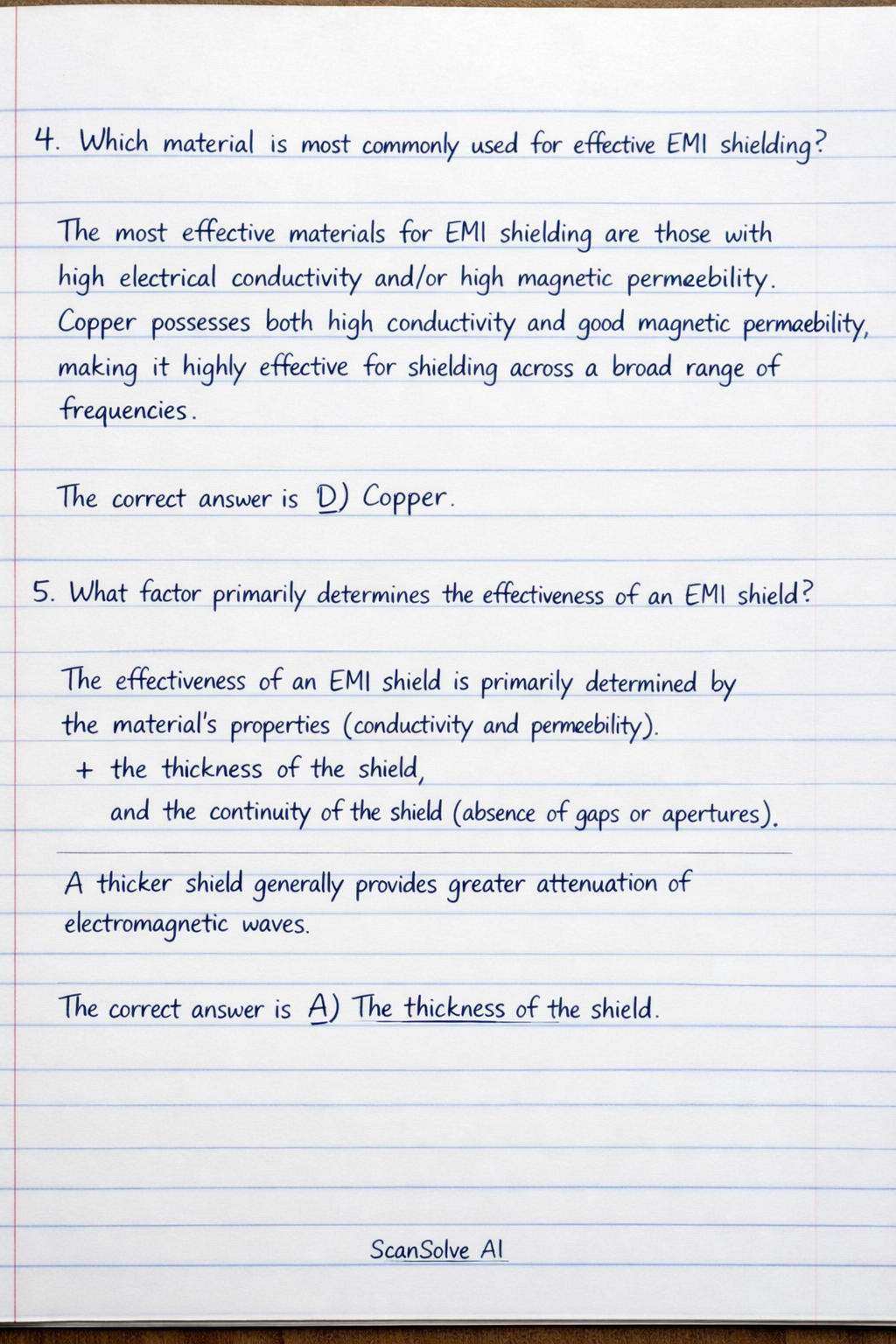

4. Which material is most commonly used for effective EMI shielding? The most effective materials for EMI shielding are those with high electrical conductivity and/or high magnetic permeability. Copper possesses both high conductivity and good magnetic permeability, making it highly effective for shielding across a broad range of frequencies. The correct answer is D) Copper. 5. What factor primarily determines the effectiveness of an EMI shield? The effectiveness of an EMI shield is primarily determined by the material's properties (conductivity and permeability), the thickness of the shield, and the continuity of the shield (absence of gaps or apertures). A thicker shield generally provides greater attenuation of electromagnetic waves. The correct answer is A) The thickness of the shield. 6. Which of the following is true about Faraday cages in EMI shielding? A Faraday cage works by causing external electromagnetic fields to induce currents in its conductive material. These induced currents generate their own electromagnetic fields that oppose the external fields inside the cage, effectively redirecting the external electromagnetic waves around the enclosed space and preventing them from penetrating. The correct answer is D) They redirect electromagnetic waves around the enclosed space. 7. Which type of grounding is most effective for minimizing EMI in electronic systems? Single-point grounding is a technique where all ground connections in a system are connected to a single common point. This method is highly effective in preventing ground loops and common-mode noise, which are significant sources of EMI in electronic systems. The correct answer is D) Single-point ground. 8. What problem can arise from improper grounding in an electronic circuit? Ground loops are a common problem caused by multiple ground connections creating different paths for current. These loops can pick up electromagnetic interference, leading to noise, signal degradation, and unwanted voltage differences in the circuit. The correct answer is C) Ground loops.
