here are the solutions to questions Q.1 to Q.18 from Section A.

Section A

Q.1:

  1. Use the formula for electric field intensity between parallel plates

    E=VdE = \frac{V}{d}

    where VV is the potential difference and dd is the separation.

  2. Substitute the given values V=12 VV = 12 \text{ V} and d=3 cm=0.03 md = 3 \text{ cm} = 0.03 \text{ m}.

    E=12 V0.03 mE = \frac{12 \text{ V}}{0.03 \text{ m}} E=400 V/m or 400 N/CE = 400 \text{ V/m} \text{ or } 400 \text{ N/C}

    The correct option is 400 N/C\boxed{\text{400 N/C}}.

    Q.2:
    The electric flux through a closed surface, according to Gauss's Law (ΦE=Qencϵ0\Phi_E = \frac{Q_{enc}}{\epsilon_0}), depends only on the net charge enclosed by the surface and the permittivity of the medium. It does not depend on the shape or size of the surface.
    The correct option is Shape and size of the surface\boxed{\text{Shape and size of the surface}}.

    Q.3:
    When a dielectric material is inserted between the plates of a charged capacitor, it becomes polarized. This polarization creates an induced electric field within the dielectric that opposes the original electric field, thereby reducing the net electric field in the region between the plates.
    The correct option is Decreases\boxed{\text{Decreases}}.

    Q.4:

  3. The resistance of a wire is given by R=ρLAR = \rho \frac{L}{A}, where ρ\rho is resistivity, LL is length, and AA is cross-sectional area.

    The volume V=ALV = AL.

  4. If the length LL is doubled to 2L2L while the volume VV remains constant, the new area A′A' must be A′=V/(2L)=(AL)/(2L)=A/2A' = V/(2L) = (AL)/(2L) = A/2.

  5. Calculate the new resistance R′R'.

    R′=ρ2LA/2=ρ4LA=4RR' = \rho \frac{2L}{A/2} = \rho \frac{4L}{A} = 4R

    The resistance is quadrupled.
    The correct option is is quadrupled\boxed{\text{is quadrupled}}.

    Q.5:
    A thermocouple generates a voltage when there is a temperature difference between two dissimilar electrical conductors. This phenomenon is known as the Seebeck effect.
    The correct option is Seebeck effect\boxed{\text{Seebeck effect}}.

    Q.6:

  6. Use the formula for the magnetic force on a current-carrying wire

    F=ILBsin⁡θF = I L B \sin\theta

    where II is current, LL is length, BB is magnetic field strength, and θ\theta is the angle between the current direction and the magnetic field.

  7. Substitute the given values

    I=5 AI = 5 \text{ A}, L=100 cm=1 mL = 100 \text{ cm} = 1 \text{ m}, B=4 TB = 4 \text{ T}, θ=45∘\theta = 45^\circ.

    F=(5 A)(1 m)(4 T)sin⁡(45∘)F = (5 \text{ A}) (1 \text{ m}) (4 \text{ T}) \sin(45^\circ) F=20×12 NF = 20 \times \frac{1}{\sqrt{2}} \text{ N} F=202 N=102 N≈14.14 NF = \frac{20}{\sqrt{2}} \text{ N} = 10\sqrt{2} \text{ N} \approx 14.14 \text{ N}

    The correct option is 14.14 N\boxed{\text{14.14 N}}.

    Q.7:
    The iron core in a transformer is laminated (made of thin, insulated sheets) to increase the electrical resistance to eddy currents. This significantly reduces the magnitude of these circulating currents, thereby minimizing the energy loss as heat due to the heating effect of eddy currents.
    The correct option is Reduce heating effect of eddy currents\boxed{\text{Reduce heating effect of eddy currents}}.

    Q.8:
    In an RLC series AC circuit, resonance occurs when the inductive reactance (XLX_L) equals the capacitive reactance (XCX_C). The impedance ZZ is given by Z=R2+(XL−XC)2Z = \sqrt{R^2 + (X_L - X_C)^2}. At resonance, XL−XC=0X_L - X_C = 0, so the impedance becomes $Z = \sqrt{

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

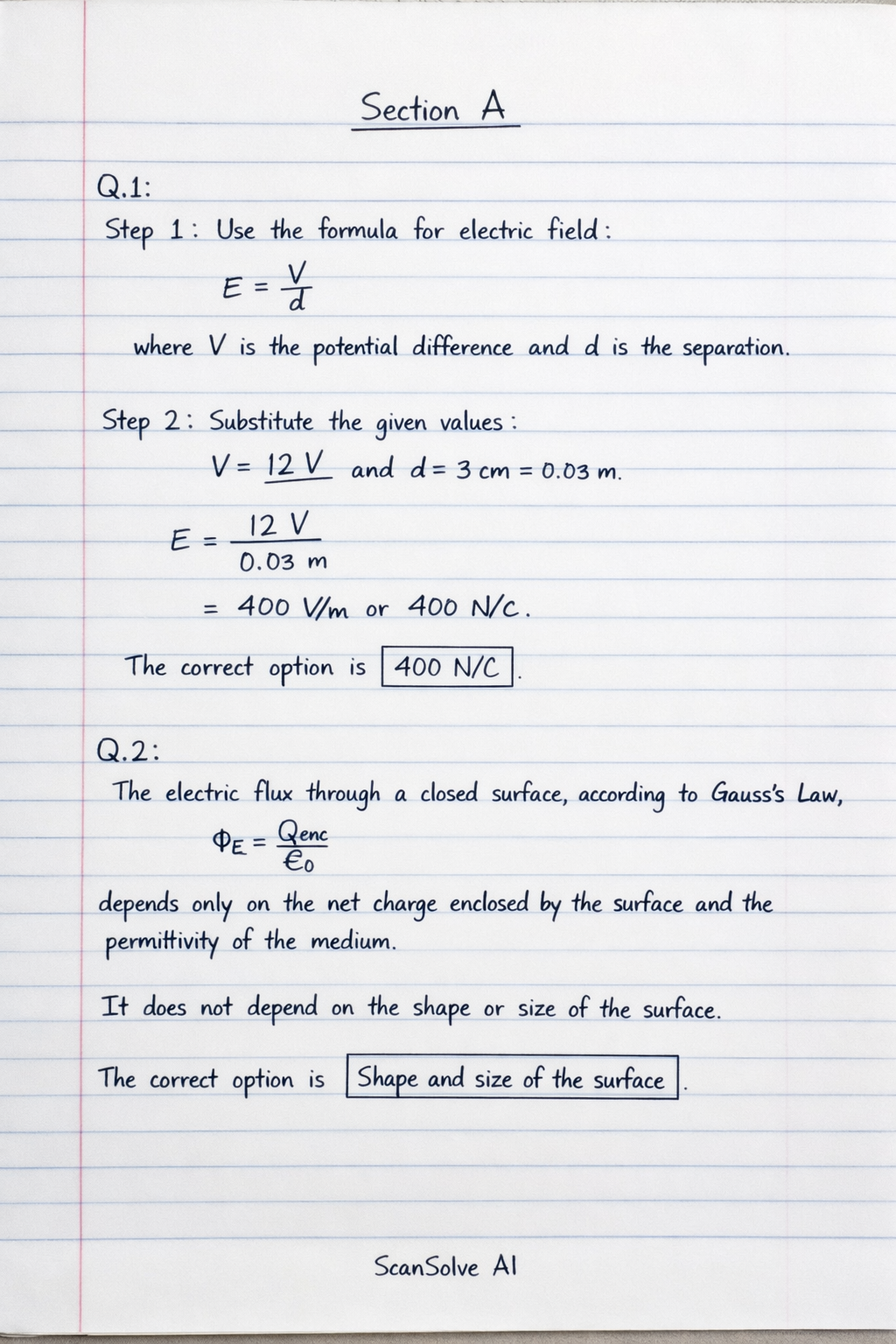

Handwritten step-by-step solution preview
