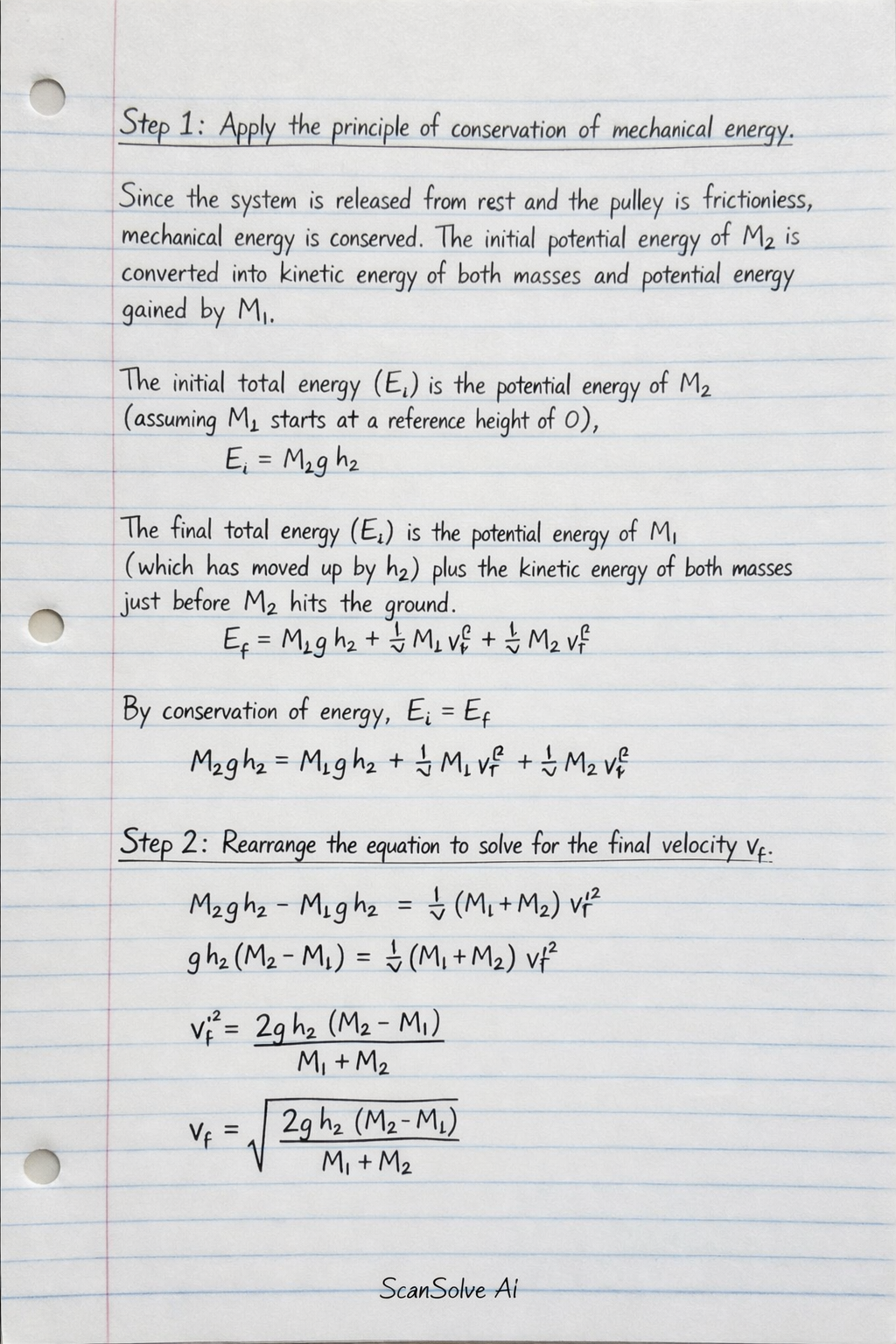

Step 1: Apply the principle of conservation of mechanical energy.
Since the system is released from rest and the pulley is frictionless, mechanical energy is conserved. The initial potential energy of $M_2$ is converted into kinetic energy of both masses and potential energy gained by $M_1$.
The initial total energy ($E_i$) is the potential energy of $M_2$ (assuming $M_1$ starts at a reference height of $0$).
$$E_i = M_2 g h_2$$
The final total energy ($E_f$) is the potential energy of $M_1$ (which has moved up by $h_2$) plus the kinetic energy of both masses just before $M_2$ hits the ground.
$$E_f = M_1 g h_2 + \frac{1}{2} M_1 v_f^2 + \frac{1}{2} M_2 v_f^2$$
By conservation of energy, $E_i = E_f$.
$$M_2 g h_2 = M_1 g h_2 + \frac{1}{2} M_1 v_f^2 + \frac{1}{2} M_2 v_f^2$$
Step 2: Rearrange the equation to solve for the final velocity $v_f$.
$$M_2 g h_2 - M_1 g h_2 = \frac{1}{2} (M_1 + M_2) v_f^2$$
$$g h_2 (M_2 - M_1) = \frac{1}{2} (M_1 + M_2) v_f^2$$
$$v_f^2 = \frac{2 g h_2 (M_2 - M_1)}{M_1 + M_2}$$
$$v_f = \sqrt{\frac{2 g h_2 (M_2 - M_1)}{M_1 + M_2}}$$
Step 3: Substitute the given values into the equation.
Given:
$M_1 = 1.5 \text{ kg}$
$M_2 = 4.5 \text{ kg}$
$h_2 = 2 \text{ m}$
$g = 9.81 \text{ m/s}^2$
$$v_f = \sqrt{\frac{2 \times 9.81 \text{ m/s}^2 \times 2 \text{ m} \times (4.5 \text{ kg} - 1.5 \text{ kg})}{1.5 \text{ kg} + 4.5 \text{ kg}}}$$
$$v_f = \sqrt{\frac{2 \times 9.81 \times 2 \times (3.0)}{6.0}} \text{ m/s}$$
$$v_f = \sqrt{\frac{117.72}{6.0}} \text{ m/s}$$
$$v_f = \sqrt{19.62} \text{ m/s}$$
$$v_f \approx 4.429 \text{ m/s}$$
The velocity with which $M_2$ hits the ground is approximately $4.43 \text{ m/s}$.
$$\boxed{\text{4.43 m/s}}$$
That's 2 down. 3 left today — send the next one.
Not acceleration the question is when two masses are released from rest determine the velocity with which m2 hits the ground
|Physics
ScanSolve AI Answer
Step 1: Apply the principle of conservation of mechanical energy.
Since the system is released from rest and the pulley is frictionless, mechanical energy is conserved. The initial potential energy of M2 is converted into kinetic energy of both masses and potential energy gained by M1.
The initial total energy (Ei) is the potential energy of M2 (assuming M1 starts at a reference height of 0).
Ei=M2gh2
The final total energy (Ef) is the potential energy of M1 (which has moved up by h2) plus the kinetic energy of both masses just before M2 hits the ground.
Ef=M1gh2+21M1vf2+21M2vf2
By conservation of energy, Ei=Ef.
M2gh2=M1gh2+21M1vf2+21M2vf2
Step 2: Rearrange the equation to solve for the final velocity vf.
M2gh2−M1gh2=21(M1+M2)vf2gh2(M2−M1)=21(M1+M2)vf2vf2=M1+M22gh2(M2−M1)vf=M1+M22gh2(M2−M1)
Step 3: Substitute the given values into the equation.
Given:
M1=1.5 kgM2=4.5 kgh2=2 mg=9.81m/s2
vf=1.5kg+4.5kg2×9.81m/s2×2m×(4.5kg−1.5kg)vf=6.02×9.81×2×(3.0) m/svf=6.0117.72 m/svf=19.62 m/svf≈4.429 m/s
The velocity with which M2 hits the ground is approximately 4.43 m/s.
4.43m/s
