State the pitch of the micrometer screw gauge. 2. What are the two limitations of the micrometer screw gauge? 3. The micrometer screw gauge below has a zero error of negative 0.19mm. state its actual

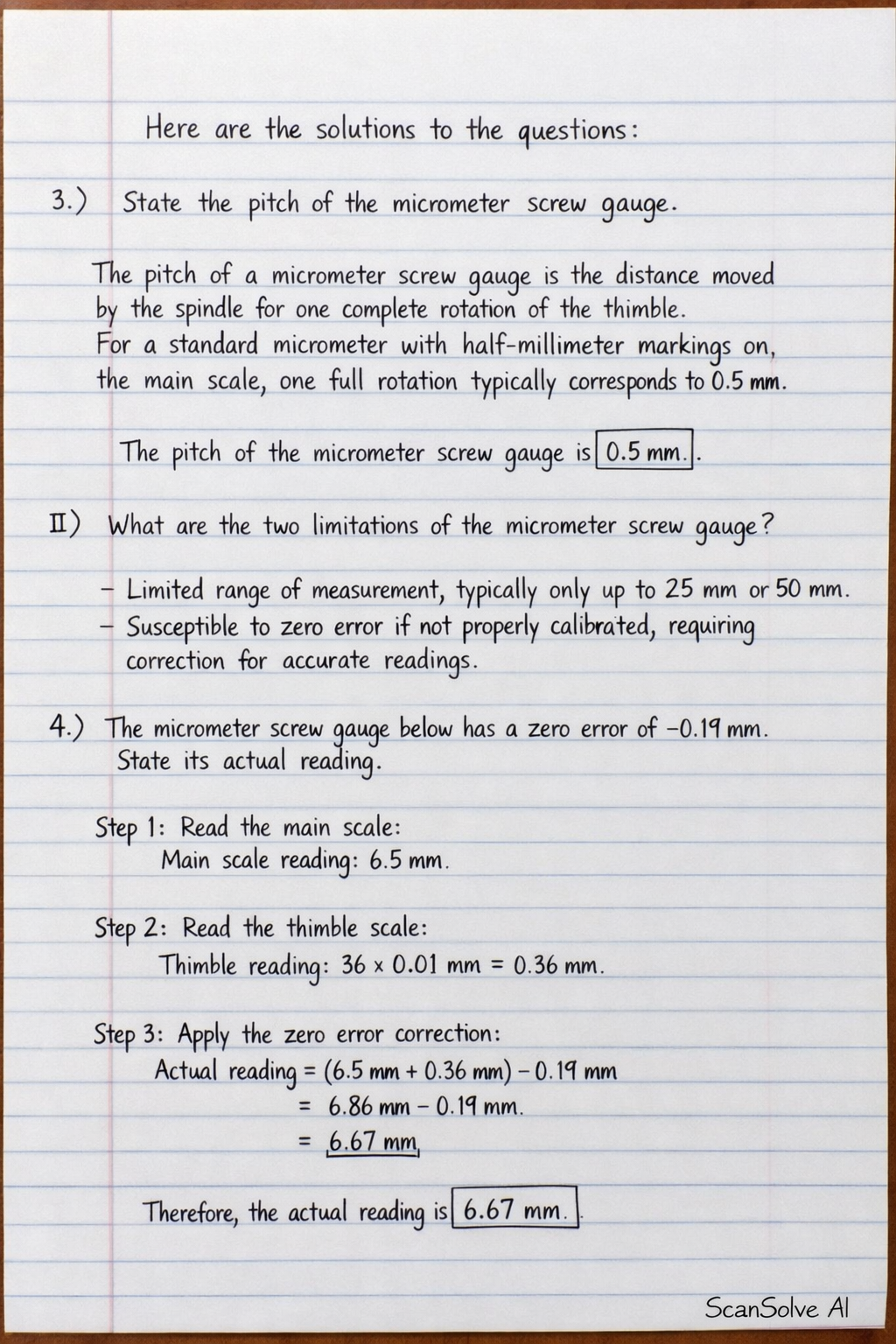

Here are the solutions to the questions:

3.
I) State the pitch of the micrometer screw gauge.
The pitch of a micrometer screw gauge is the distance moved by the spindle for one complete rotation of the thimble. For a standard micrometer with half-millimeter markings on the main scale, one full rotation typically corresponds to 0.5 mm.
The pitch of the micrometer screw gauge is $\boxed{\text{0.5 mm}}$.

II) What are the two limitations of the micrometer screw gauge?

• It has a limited range of measurement, typically only up to 25 mm or 50 mm.
• It is susceptible to zero error if not properly calibrated, which requires correction for accurate readings.

4. The micrometer screw gauge below has a zero error of negative 0.19mm. state its actual reading.

Step 1: Read the main
