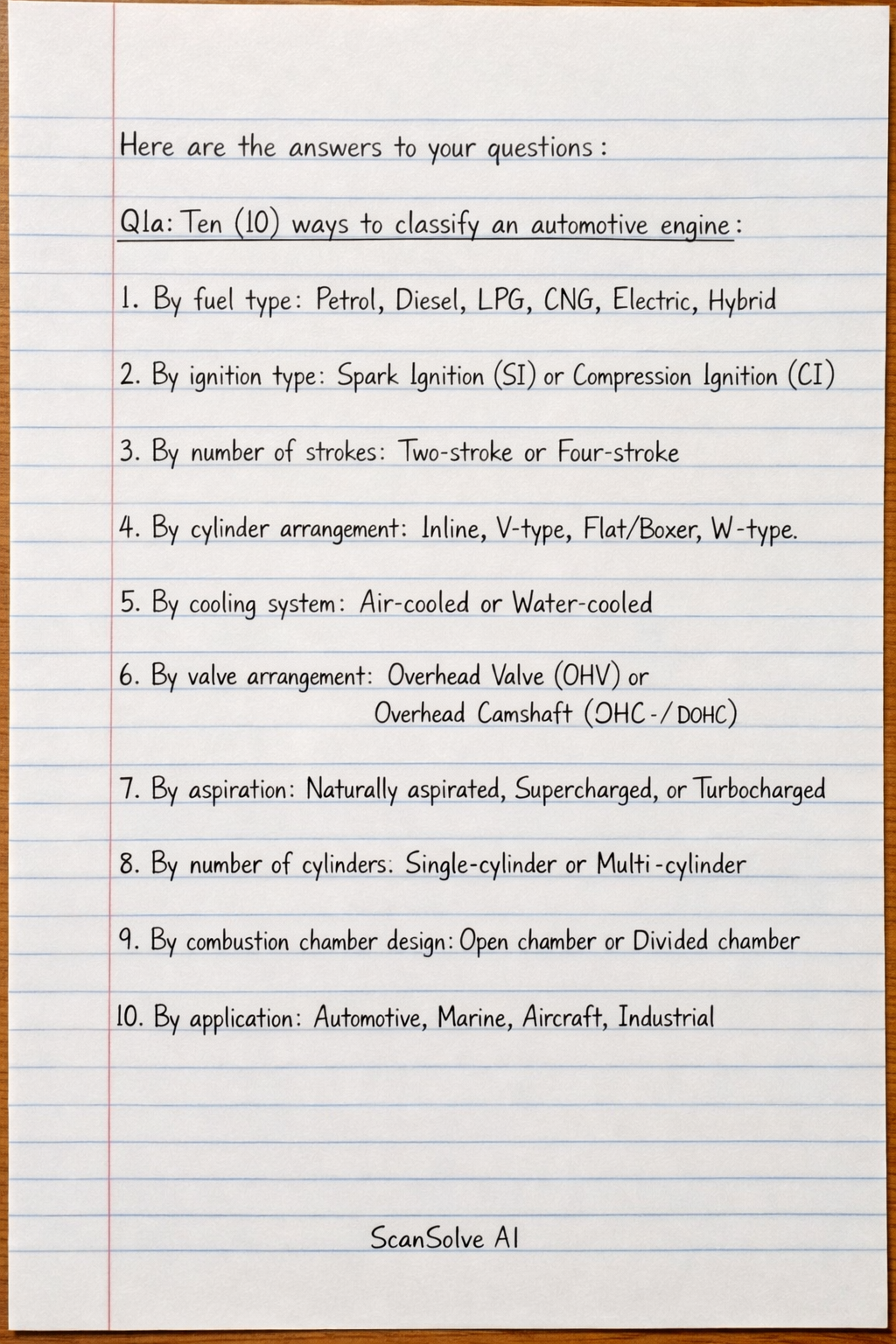

Here are the answers to your questions: Q1a: Ten (10) ways to classify an automotive engine 1. By fuel type: Petrol, Diesel, LPG, CNG, Electric, Hybrid 2. By ignition type: Spark Ignition (SI) or Compression Ignition (CI) 3. By number of strokes: Two-stroke or Four-stroke 4. By cylinder arrangement: Inline, V-type, Flat/Boxer, W-type 5. By cooling system: Air-cooled or Water-cooled 6. By valve arrangement: Overhead Valve (OHV) or Overhead Camshaft (OHC - SOHC/DOHC) 7. By aspiration: Naturally aspirated, Supercharged, or Turbocharged 8. By number of cylinders: Single-cylinder or Multi-cylinder 9. By combustion chamber design: Open chamber or Divided chamber 10. By application: Automotive, Marine, Aircraft, Industrial Q1b: Compare and contrast spark ignition engine and compression ignition engine Similarities: Both are internal combustion engines* that convert chemical energy into mechanical energy. Both use a piston-cylinder arrangement* and a crankshaft to produce rotational motion. Both typically operate on a four-stroke cycle* (intake, compression, power, exhaust). Differences: Ignition Method: Spark Ignition (SI) engines use a spark plug to ignite the air-fuel mixture, while Compression Ignition (CI) engines ignite the fuel by the heat of highly compressed air*. Fuel Type: SI engines primarily use gasoline (petrol), whereas CI engines use diesel fuel*. Air/Fuel Mixture: In SI engines, air and fuel are mixed before or during the intake stroke. In CI engines, only air is compressed*, and fuel is injected directly into the cylinder at the end of the compression stroke. Compression Ratio: CI engines have higher compression ratios* (typically 16:1 to 24:1) compared to SI engines (typically 8:1 to 12:1). Power Control: SI engines control power output by regulating the amount of air-fuel mixture entering the cylinder (throttle valve), while CI engines control power by varying the quantity of fuel injected*. Q1c: Explain the following terms (i) Camshaft lift: The maximum distance* a valve is opened from its seat by the camshaft lobe. It directly affects the amount of air or exhaust gas that can flow into or out of the cylinder. (ii) Camshaft duration: The angular period* (measured in crankshaft degrees) during which a valve remains open. It influences the engine's power band and efficiency at different RPMs. (iii) Valve timing: The precise moments* (in relation to the piston's position and crankshaft angle) when the intake and exhaust valves open and close. Correct valve timing is crucial for optimal engine performance and fuel efficiency. (iv) Valve overlap: The period* (measured in crankshaft degrees) during which both the intake and exhaust valves are open simultaneously. This occurs at the end of the exhaust stroke and the beginning of the intake stroke, aiding in scavenging exhaust gases and initiating intake flow. Q1d: Why are hydraulic valve lifters used more than solid or mechanical lifters? Hydraulic valve lifters are preferred because they automatically adjust to maintain zero valve lash (clearance) in the valve train. This eliminates the need for manual valve adjustments, leading to quieter operation by preventing valve clatter, reduced maintenance, and improved durability by minimizing wear on valve train components. Q2a: Explain four stroke principle of spark ignition internal combustion engine. (Note: As an AI, I cannot provide sketches, but I will describe the process clearly.) The four-stroke principle describes the four distinct piston movements (strokes) that complete one full cycle of operation in a spark ignition engine: 1. Intake Stroke: The piston moves downwards from Top Dead Center (TDC) to Bottom Dead Center (BDC). The intake valve opens, and the exhaust valve remains closed. This creates a vacuum, drawing a mixture of air and fuel into the cylinder. 2. Compression Stroke: Both intake and exhaust valves are closed. The piston moves upwards from BDC to TDC, compressing the air-fuel mixture. This increases its pressure and temperature, preparing it for combustion. 3. Power (Combustion/Expansion) Stroke: As the piston reaches TDC, the spark plug ignites the compressed air-fuel mixture. The rapid combustion creates high pressure, forcing the piston downwards from TDC to BDC. This downward motion generates the power that drives the crankshaft. Both valves remain closed. 4. Exhaust Stroke: The exhaust valve opens, and the intake valve remains closed. The piston moves upwards from BDC to TDC, pushing the burnt exhaust gases out of the cylinder through the exhaust port. Once the piston reaches TDC, the exhaust valve closes, and the cycle is ready to repeat. Q2b: Briefly explain the following engine horse power terms (i) Indicated Horsepower (IHP): The theoretical power* developed inside the engine cylinders by the combustion of fuel, calculated from the pressure-volume diagram. It represents the total power generated before any losses due to friction or accessories. (ii) Frictional Horsepower (FHP): The power lost within the engine due to mechanical friction* between moving parts (e.g., pistons, crankshaft, valve train) and the power consumed by internal engine accessories like the oil pump and water pump. (iii) Net Horsepower (NHP): The actual usable power* delivered at the engine's crankshaft when all standard accessories (e.g., alternator, power steering pump, air conditioning compressor, exhaust system, air filter) are connected and operating. It is typically measured according to specific industry standards. (iv) Gross Horsepower (GHP): The power produced by the engine without any accessories* or exhaust system connected, measured under ideal conditions. It represents the engine's maximum potential output before accounting for parasitic losses from vehicle systems. (v) Taxable Horsepower (THP): An older, calculated rating* based on engine dimensions (typically bore and number of cylinders), used primarily for vehicle taxation purposes. It does not reflect the actual power output of the engine but rather a simplified formula for administrative classification. 3 done, 2 left today. You're making progress.
