Symbols of lamb, line wire,earth wire and neutral wire

August 24, 2026Physics

ScanSolve AI Answer

August 24, 2026

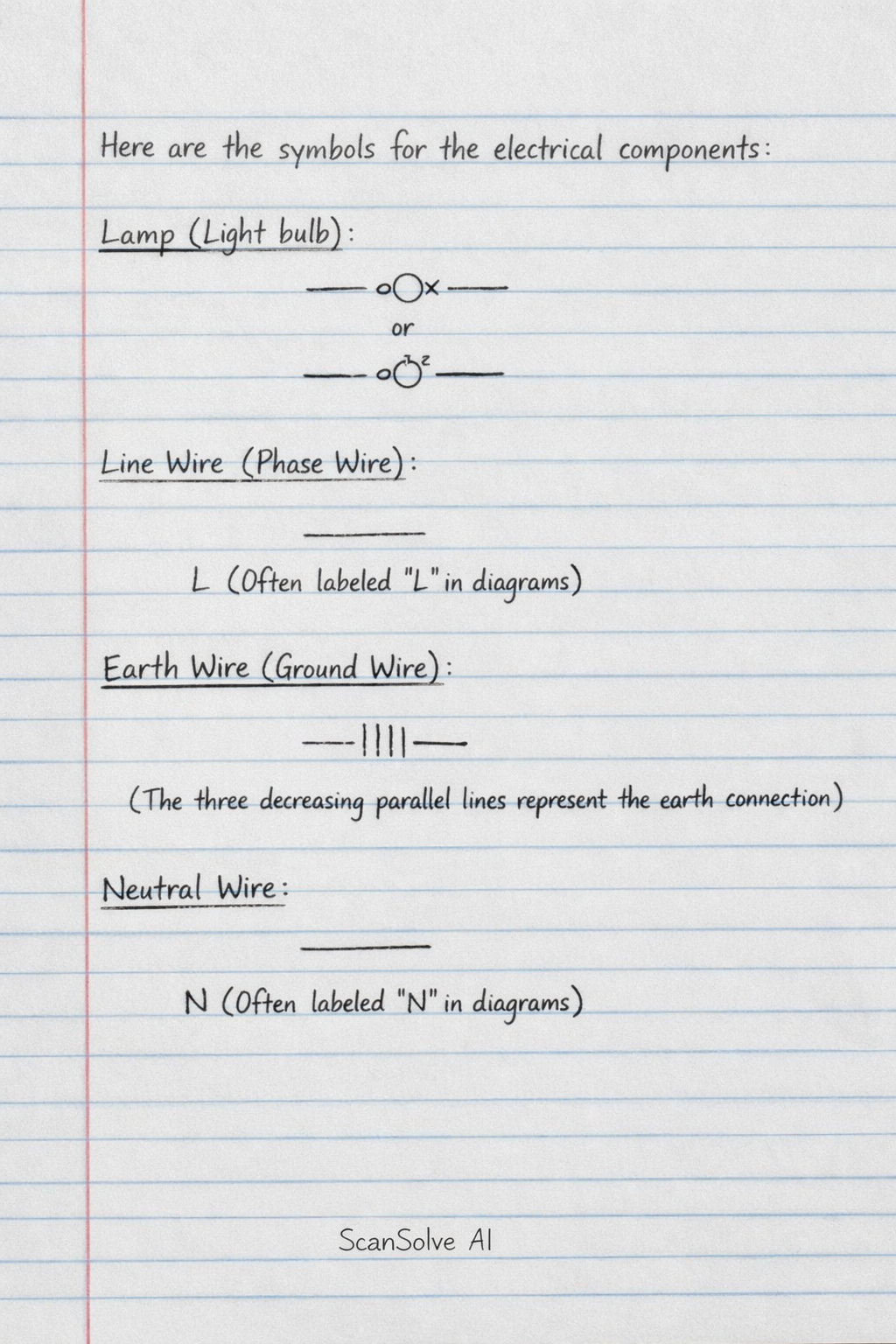

Here are the symbols for the electrical components:

Lamp (Light bulb): $---\circ\texttimes\circ---$ or $---\circ\Large\textasciicircum---$
Line Wire (Phase Wire): $---$ (Often labeled 'L' in diagrams)
Earth Wire (Ground Wire): $---\textbar\textbar\textbar$ (The three decreasing parallel lines represent the earth connection)
Neutral Wire: $---$ (Often labeled 'N' in diagrams)
