Explain how to locate an object using ray tracing and why an enlarged pinhole causes a blurred image. Also, explain magnetization via hammering using domain theory.

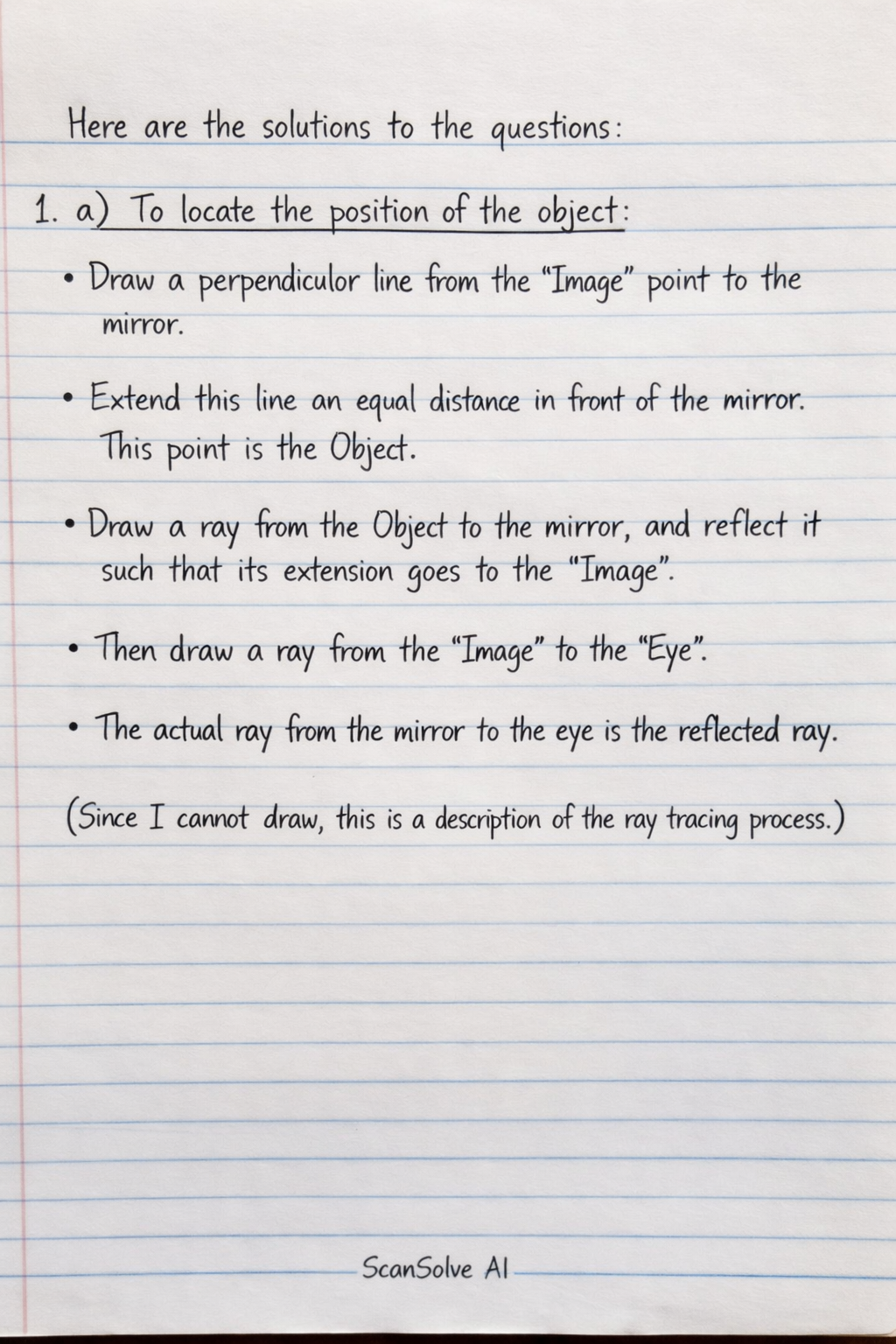

Here are the solutions to the questions:

1. a) To locate the position of the object:

   • Draw a perpendicular line from the "Image" point to the mirror.
   • Extend this line an equal distance in front of the mirror. This point is the Object.
   • To show how the eye sees it: Draw a ray from the Object to the mirror, and reflect it such that its extension goes to the "Image". Then draw a ray from the "Image" to the "Eye". The actual ray from the mirror to the eye is the reflected ray.

   (Since I cannot draw, this is a description of the ray tracing process.)

   b) An enlarged hole in a pinhole camera produces a blurred image because:

   • Instead of light from each point on the object passing through a single point (the pinhole) to form a distinct point on the screen, light from a single point on the object can pass through different parts of the enlarged hole. This causes the light from that single object point to spread out over a small area on the screen.
   • Similarly, light from multiple points on the object can pass through the enlarged hole and overlap on the same area of the screen. This overlapping of light from different parts of the object results in a blurred image.

2. Using domain theory, a steel nail can be magnetized through hammering as follows:

   • In an unmagnetized steel nail, the magnetic domains (tiny regions of aligned atomic magnets) are randomly oriented, causing their magnetic fields to cancel out, resulting in no net magnetism.
   • When the nail is hammered, especially while aligned with an external magnetic field (like the Earth's magnetic field), the mechanical vibrations provide energy.
   • This energy allows the domains to overcome internal friction and realign themselves more easily with the external magnetic field.
   • Repeated hammering helps to permanently align a significant number of these domains in the same direction, leading to a net magnetic field and thus magnetizing the nail.

3. Two properties of an image formed by a concave mirror that make it suitable for use by a barber are:

   • The image is enlarged (magnified), allowing the barber to see details of the customer's hair more clearly.
   • The image is upright (erect), which means it is not inverted, making it easier for the barber to work.

4. a) Similarity:

   • Both images are the same size as the object. (For the convex lens, $u=2f$, so $M=1$. For the plane mirror, the image is always the same size.)

   b) Difference:

   • The image formed by the convex lens is real and inverted, while the image formed by the plane mirror is virtual and upright.
