Understand the resonance conditions for a closed-end tube.

Physics

ScanSolve AI Answer

Answer

49.50 cm\text{49.50 cm}

Step-by-step solution

3 steps
  1. Understand the resonance conditions for a closed-end tube.

    In a resonance tube (which is typically a closed-end tube due to the water column), resonance occurs when the length of the air column (LL) is an odd multiple of a quarter wavelength. The formula for resonance lengths is:

    Ln=(2n−1)λ4L_n = \frac{(2n-1)\lambda}{4}

    where n=1,2,3,…n = 1, 2, 3, \dots represents the order of resonance.

    • For the first resonance (n=1n=1): L1=(2(1)−1)λ4=λ4L_1 = \frac{(2(1)-1)\lambda}{4} = \frac{\lambda}{4}
    • For the second resonance (n=2n=2): L2=(2(2)−1)λ4=3λ4L_2 = \frac{(2(2)-1)\lambda}{4} = \frac{3\lambda}{4}
    • For the third resonance (n=3n=3): L3=(2(3)−1)λ4=5λ4L_3 = \frac{(2(3)-1)\lambda}{4} = \frac{5\lambda}{4}
  2. Use the given first resonance position to find the wavelength (λ\lambda).

    The problem states that the first position of resonance is 16.50 cm16.50 \, \text{cm} from the open end. So, L1=16.50 cmL_1 = 16.50 \, \text{cm}.
    Using the formula for the first resonance:

    L1=λ4L_1 = \frac{\lambda}{4} 16.50 cm=λ416.50 \, \text{cm} = \frac{\lambda}{4}

    Now, solve for λ\lambda:

    λ=4×16.50 cm\lambda = 4 \times 16.50 \, \text{cm} λ=66.00 cm\lambda = 66.00 \, \text{cm}
  3. Calculate the distance to the next resonance position.

    The "next position where resonance occurs" refers to the second resonance (L2L_2).
    Using the formula for the second resonance:

    L2=3λ4L_2 = \frac{3\lambda}{4}

    Substitute the calculated value of λ\lambda:

    L2=3×66.00 cm4L_2 = \frac{3 \times 66.00 \, \text{cm}}{4} L2=3×(66.004) cmL_2 = 3 \times \left(\frac{66.00}{4}\right) \, \text{cm} L2=3×16.50 cmL_2 = 3 \times 16.50 \, \text{cm} L2=49.50 cmL_2 = 49.50 \, \text{cm}

    The distance from the open end to the next position where resonance occurs is 49.50 cm\boxed{\text{49.50 cm}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

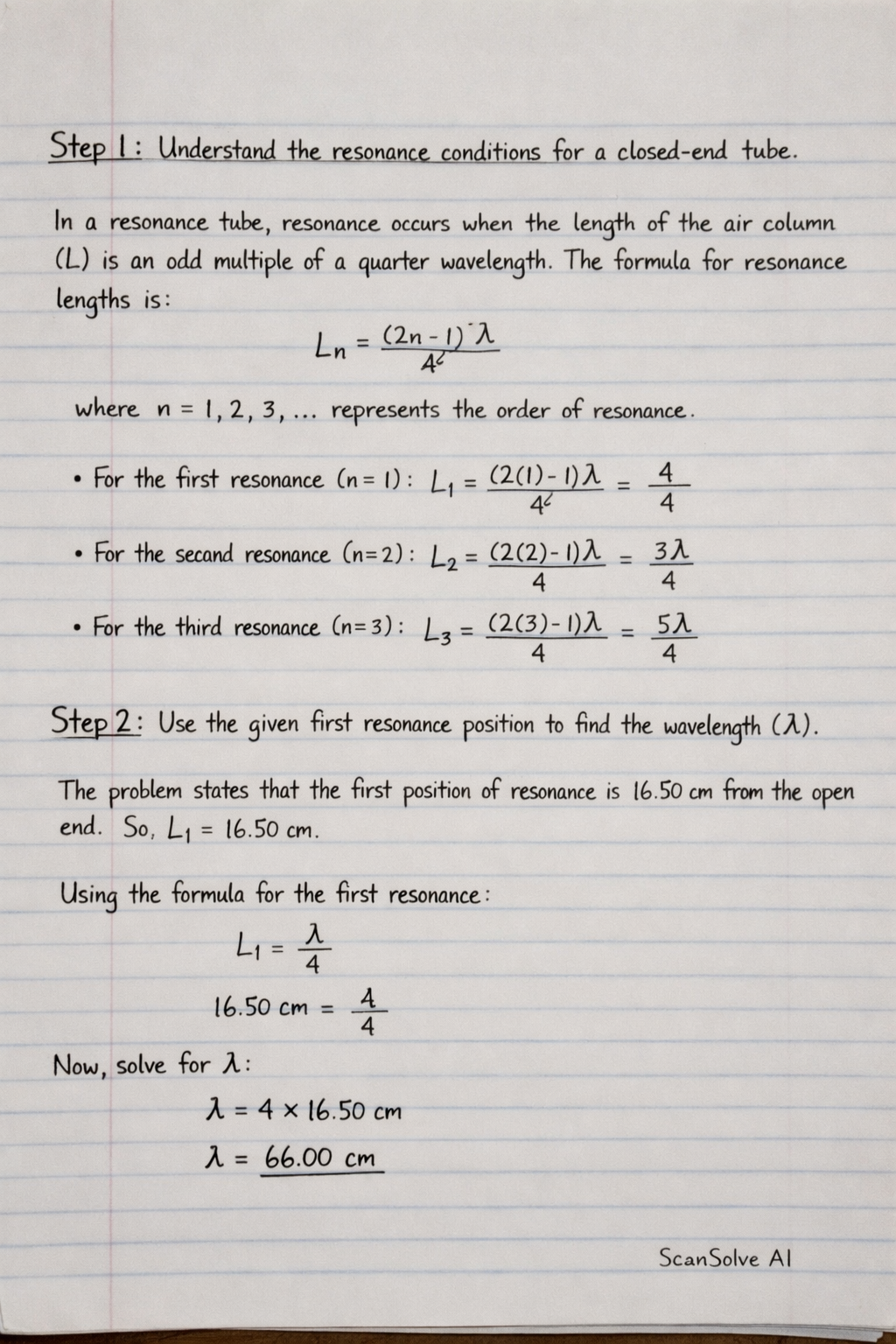

Handwritten step-by-step solution preview
