Will the current increase or decrease, if two more cells are added to the circuit in 7.4? Check your prediction using the formula.

ScanSolve AI Tutor · Accepted Answer

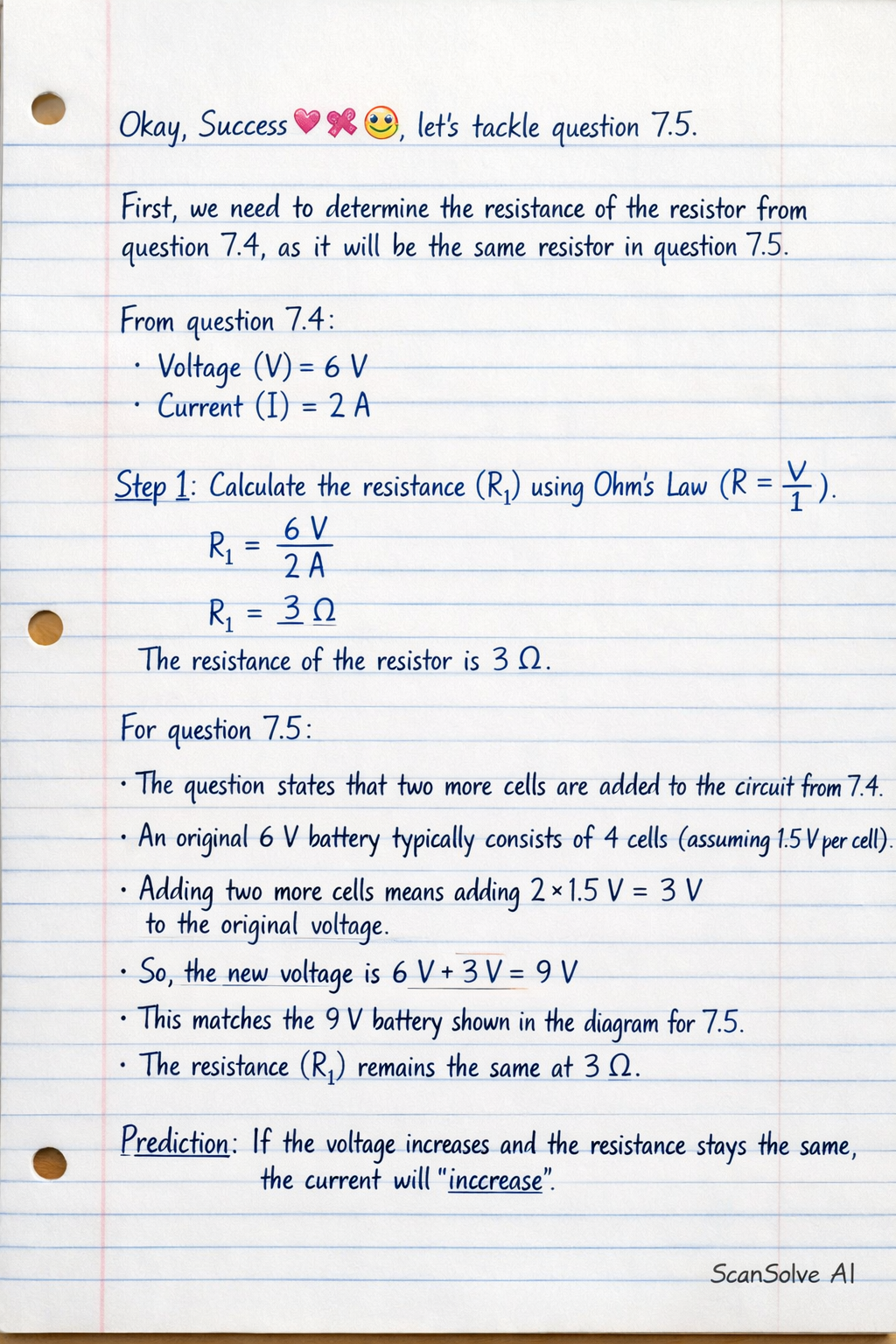

Okay, Success💗🎀🥹, let's tackle question 7.5.

First, we need to determine the resistance of the resistor from question 7.4, as it will be the same resistor in question 7.5.

From question 7.4:

Calculate the resistance ( $R_1$ ) using Ohm's Law ( $R = \frac{V}{I}$ ).
$R_1 = \frac{6 \text{ V}}{2 \text{ A}}$ $R_1 = 3 \ \Omega$
The resistance of the resistor is $3 \ \Omega$ .

For question 7.5:
The question states that two more cells are added to the circuit from 7.4.
An original 6 V battery typically consists of 4 cells (assuming 1.5 V per cell). Adding two more cells means adding $2 \times 1.5 \text{ V} = 3 \text{ V}$ to the original voltage.
So, the new voltage is $6 \text{ V} + 3 \text{ V} = 9 \text{ V}$ . This matches the 9 V battery shown in the diagram for 7.5.
The resistance ( $R_1$ ) remains the same at $3 \ \Omega$ .

Prediction: If the voltage increases and the resistance stays the same, the current will increase.
Identify the new voltage and the resistance for the circuit in 7.5.
New Voltage ( $V_1$ ) = $9 \text{ V}$
Resistance ( $R_1$ ) = $3 \ \Omega$
Calculate the new current ( $I_1$ ) using Ohm's Law ( $I = \frac{V}{R}$ ).
$I_1 = \frac{V_1}{R_1}$ $I_1 = \frac{9 \text{ V}}{3 \ \Omega}$ $I_1 = 3 \text{ A}$
Compare the new current with the original current.
Original current = $2 \text{ A}$
New current = $3 \text{ A}$
Since $3 \text{ A} > 2 \text{ A}$ , the current will increase.
$\text{The current will increase to } 3 \text{ A}$
