Describe the Contact Process for the industrial manufacture of sulfuric acid, including reactants, reactions, and products.

Chemistry

ScanSolve AI Answer

Step-by-step solution

6 steps

  1. Answer part a).

    The raw materials for the industrial manufacture of sulfuric acid (Contact Process) are sulfur and oxygen.
    U: Sulphur\boxed{\textbf{Sulphur}}
    V: Oxygen\boxed{\textbf{Oxygen}}

  2. Answer part b).

    In the combustion chamber, sulfur reacts with oxygen.

    S(s)+O2(g)→SO2(g)\text{S(s)} + \text{O}_2\text{(g)} \rightarrow \text{SO}_2\text{(g)}

    The product formed is Sulphur dioxide\boxed{\textbf{Sulphur dioxide}}.

  3. Answer part c) i).

    The reaction taking place in the contact chamber is the conversion of sulfur dioxide to sulfur trioxide.

    2SO2(g)+O2(g)⇌2SO3(g)\text{2SO}_2\text{(g)} + \text{O}_2\text{(g)} \rightleftharpoons \text{2SO}_3\text{(g)}

  4. Answer part c) ii).

    The catalyst used in the contact chamber for the conversion of sulfur dioxide to sulfur trioxide is Vanadium(V) oxide (V2O5)\boxed{\textbf{Vanadium(V) oxide (V}_2\textbf{O}_5\textbf{)}}.

  5. Answer part c) iii).

    In the absorption tower, sulfur trioxide is absorbed in concentrated sulfuric acid to form oleum.

    SO3(g)+H2SO4(l)→H2S2O7(l)\text{SO}_3\text{(g)} + \text{H}_2\text{SO}_4\text{(l)} \rightarrow \text{H}_2\text{S}_2\text{O}_7\text{(l)}

    The compound formed in the absorption tower is Oleum (H2S2O7)\boxed{\textbf{Oleum (H}_2\textbf{S}_2\textbf{O}_7\textbf{)}}.

  6. Answer part d).

    When carbon burns in limited oxygen, it forms carbon monoxide.

    2C(s)+O2(g)→2CO(g)\text{2C(s)} + \text{O}_2\text{(g)} \rightarrow \text{2CO(g)}

    The colourless, odourless gas formed is Carbon monoxide (CO)\boxed{\textbf{Carbon monoxide (CO)}}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Chemistry Questions

QThe key reaction in the Contact Process for the manufacture of Sulphuric acid is the oxidation of…QProcess of making sulphuric acidQThe flow chart below shows some of the processes involved in large scale production of sulphuric…QDescribe how nitric acid and sulfuric acid are manufactured.QDescribe the extraction of zinc and the production of sulfuric acid from zinc ore, including…
See all Chemistry questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

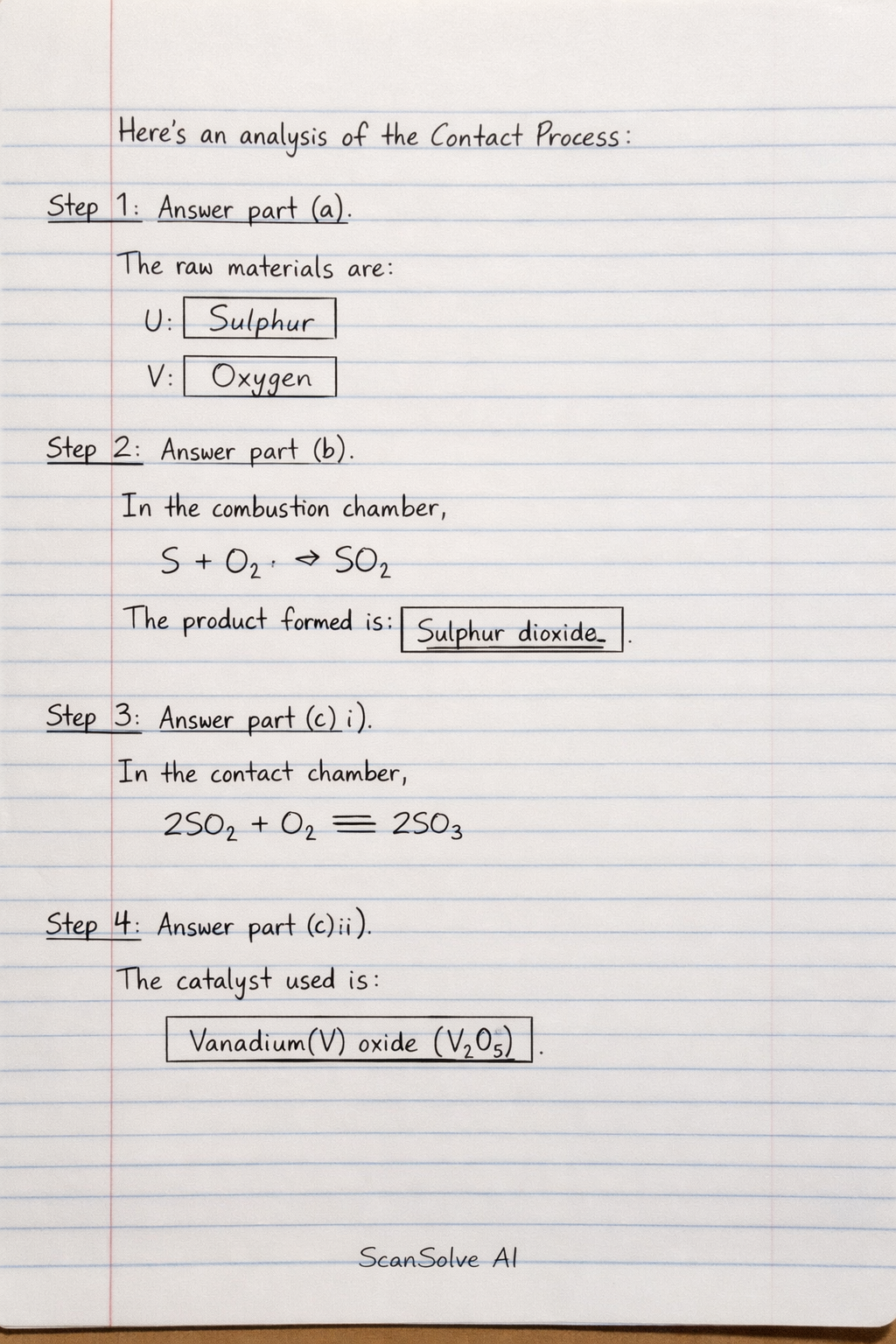

Handwritten step-by-step solution preview
