We read your photo as:

Draw a well labeled diagram of the electrochemical cell when copper and magnesium half cells are connected.

Chemistry

ScanSolve AI Answer

This answer stops before the end.

It was cut off when it was first written. Ask ScanSolve this question again for the full working.

Step-by-step solution

4 steps

Haya hapa majibu kwa maswali yako:

Part a· 4 steps

Indicate in the table with a tick (✓) where a reaction occurs and a cross (x) where no reaction occurs.

Ili kubaini kama mmenyuko utatokea, tunalinganisha uwezo wa kupunguza wa kawaida (Eθ\text{E}^\theta) wa metali na ioni ya chuma. Metali itaitikia na ioni ya chuma ikiwa metali hiyo ina uwezo wa kupunguza hasi zaidi (au ni wakala wa kupunguza wenye nguvu zaidi) kuliko chuma kinachoundwa kutoka kwa ioni.

Uwezo wa kupunguza wa kawaida uliotolewa:
Zn2+(aq)+2e−⟶Zn(s)\text{Zn}^{2+}(\text{aq}) + 2\text{e}^- \longrightarrow \text{Zn(s)}, Eθ=−0.76V\text{E}^\theta = -0.76\text{V}
Pb2+(aq)+2e−⟶Pb(s)\text{Pb}^{2+}(\text{aq}) + 2\text{e}^- \longrightarrow \text{Pb(s)}, Eθ=−0.13V\text{E}^\theta = -0.13\text{V}
Cu2+(aq)+2e−⟶Cu(s)\text{Cu}^{2+}(\text{aq}) + 2\text{e}^- \longrightarrow \text{Cu(s)}, Eθ=+0.34V\text{E}^\theta = +0.34\text{V}
Ag+(aq)+e−⟶Ag(s)\text{Ag}^{+}(\text{aq}) + \text{e}^- \longrightarrow \text{Ag(s)}, Eθ=+0.80V\text{E}^\theta = +0.80\text{V}

  1. Metal: Cu, Metal ion: Ag+(aq)\text{Ag}^{+}(\text{aq})

    Eθ(Cu2+/Cu)=+0.34V\text{E}^\theta(\text{Cu}^{2+}/\text{Cu}) = +0.34\text{V}
    Eθ(Ag+/Ag)=+0.80V\text{E}^\theta(\text{Ag}^{+}/\text{Ag}) = +0.80\text{V}
    Kwa kuwa Eθ(Cu2+/Cu)\text{E}^\theta(\text{Cu}^{2+}/\text{Cu}) ni hasi zaidi kuliko Eθ(Ag+/Ag)\text{E}^\theta(\text{Ag}^{+}/\text{Ag}), Cu ni wakala wa kupunguza wenye nguvu zaidi kuliko Ag. Hivyo, Cu itapunguza Ag+\text{Ag}^{+}.
    Mmenyuko: ✓

  2. Metal: Zn, Metal ion: Cu2+(aq)\text{Cu}^{2+}(\text{aq})

    Eθ(Zn2+/Zn)=−0.76V\text{E}^\theta(\text{Zn}^{2+}/\text{Zn}) = -0.76\text{V}
    Eθ(Cu2+/Cu)=+0.34V\text{E}^\theta(\text{Cu}^{2+}/\text{Cu}) = +0.34\text{V}
    Kwa kuwa Eθ(Zn2+/Zn)\text{E}^\theta(\text{Zn}^{2+}/\text{Zn}) ni hasi zaidi kuliko Eθ(Cu2+/Cu)\text{E}^\theta(\text{Cu}^{2+}/\text{Cu}), Zn ni wakala wa kupunguza wenye nguvu zaidi kuliko Cu. Hivyo, Zn itapunguza Cu2+\text{Cu}^{2+}.
    Mmenyuko: ✓

  3. Metal: Ag, Metal ion: Pb2+(aq)\text{Pb}^{2+}(\text{aq})

    Eθ(Ag+/Ag)=+0.80V\text{E}^\theta(\text{Ag}^{+}/\text{Ag}) = +0.80\text{V}
    Eθ(Pb2+/Pb)=−0.13V\text{E}^\theta(\text{Pb}^{2+}/\text{Pb}) = -0.13\text{V}
    Kwa kuwa Eθ(Ag+/Ag)\text{E}^\theta(\text{Ag}^{+}/\text{Ag}) ni chanya zaidi kuliko Eθ(Pb2+/Pb)\text{E}^\theta(\text{Pb}^{2+}/\text{Pb}), Ag ni wakala wa kupunguza dhaifu kuliko Pb. Hivyo, Ag haitapunguza Pb2+\text{Pb}^{2+}.
    Mmenyuko: x

  4. Metal: Pb, Metal ion: Zn2+(aq)\text{Zn}^{2+}(\text{aq})

    Eθ(Pb2+/Pb)=−0.13V\text{E}^\theta(\text{Pb}^{2+}/\text{Pb}) = -0.13\text{V}
    Eθ(Zn2+/Zn)=−0.76V\text{E}^\theta(\text{Zn}^{2+}/\text{Zn}) = -0.76\text{V}
    Kwa kuwa Eθ(Pb2+/Pb)\text{E}^\theta(\text{Pb}^{2+}/\text{Pb}) ni chanya zaidi kuliko Eθ(Zn2+/Zn)\text{E}^\theta(\text{Zn}^{2+}/\text{Zn}), Pb ni wakala wa kupunguza dhaifu kuliko Zn. Hivyo, Pb haitapunguza Zn2+\text{Zn}^{2+}.
    Mmenyuko: x

    Jedwali lililokamilika:

    MetalMetal ionReaction / No reaction
    CuAg+(aq)\text{Ag}^{+}(\text{aq})✓
    ZnCu2+(aq)\text{Cu}^{2+}(\text{aq})✓
    AgPb2+(aq)\text{Pb}^{2+}(\text{aq})x
    PbZn2+(aq)\text{Zn}^{2+}(\text{aq})x

Part b

Identify the strongest reducing agent.

Wakala wa kupunguza wenye nguvu zaidi ni spishi ambayo huoksidishwa kwa urahisi zaidi. Katika suala la uwezo wa kupunguza wa kawaida, spishi iliyo na uwezo wa kupunguza hasi zaidi ndiyo wakala wa kupunguza wenye nguvu zaidi.
Kutoka kwenye orodha:
Zn2+/Zn:Eθ=−0.76V\text{Zn}^{2+}/\text{Zn}: \text{E}^\theta = -0.76\text{V}
Pb2+/Pb:Eθ=−0.13V\text{Pb}^{2+}/\text{Pb}: \text{E}^\theta = -0.13\text{V}
Cu2+/Cu:Eθ=+0.34V\text{Cu}^{2+}/\text{Cu}: \text{E}^\theta = +0.34\text{V}
Ag+/Ag:Eθ=+0.80V\text{Ag}^{+}/\text{Ag}: \text{E}^\theta = +0.80\text{V}
Thamani hasi zaidi ni −0.76V-0.76\text{V}, ambayo inalingana na Zn(s)\text{Zn(s)}.
Wakala wa kupunguza wenye nguvu zaidi ni:

Zn(s)\boxed{\text{Zn(s)}}

Part c

Draw a well labeled diagram of the electrochemical cell when copper and magnesium half cells are connected.

(Kumbuka: Uwezo wa kupunguza wa kawaida kwa Mg2+/Mg\text{Mg}^{2+}/\text{Mg} ni Eθ=−2.37V\text{E}^\theta = -2.37\text{V}.)
Kwa kuwa Mg ina uwezo wa kupunguza hasi zaidi kuliko Cu (−2.37V-2.37\text{V} dhidi ya +0.34V+0.34\text{V}), Mg itakuwa anodi (oksidesheni) na Cu itakuwa katodi (upunguzaji).

Mchoro wa Seli ya Kielektroniki ya Shaba na Magnesiamu:

                                 Voltmeter
                                    |
                                    |
                                    V
        -----------------------------------------------------
       |                                                     |
       |                                                     |
       |  Anode (Mg)                                         |  Cathode (Cu)
       |  (Oxidation)                                        |  (Reduction)
       |                                                     |
       |  Mg(s) --> Mg2+(aq) + 2e-                           |  Cu2+(aq) + 2e- --> Cu(s)
       |                                                     |
       |  <--------------------------------------------------|  (Electron flow)
       |                                                     |
       |  Mg electrode                                       |  Cu electrode
       |  (in MgSO4 solution)                                |  (in CuSO4 solution)
       |                                                     |
       |  ---------------------------------------------------|
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |                                                 |  |
       |  |
Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Chemistry Questions

QCompare and contrast Galvanic and Electrolytic cells and design a galvanic cell diagram for Cu/Cu2+…QDescribe the components and reactions of a Zinc-copper galvanic cell, including standard electrode…QQUESTION 9 (Start on a new page.) The simplified diagram below represents an electrolytic cell used…QWrite the half-reaction for the deposition of copper.QCalculate the standard EMF of the cell given the standard electrode potentials for Zn and Cu…
See all Chemistry questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

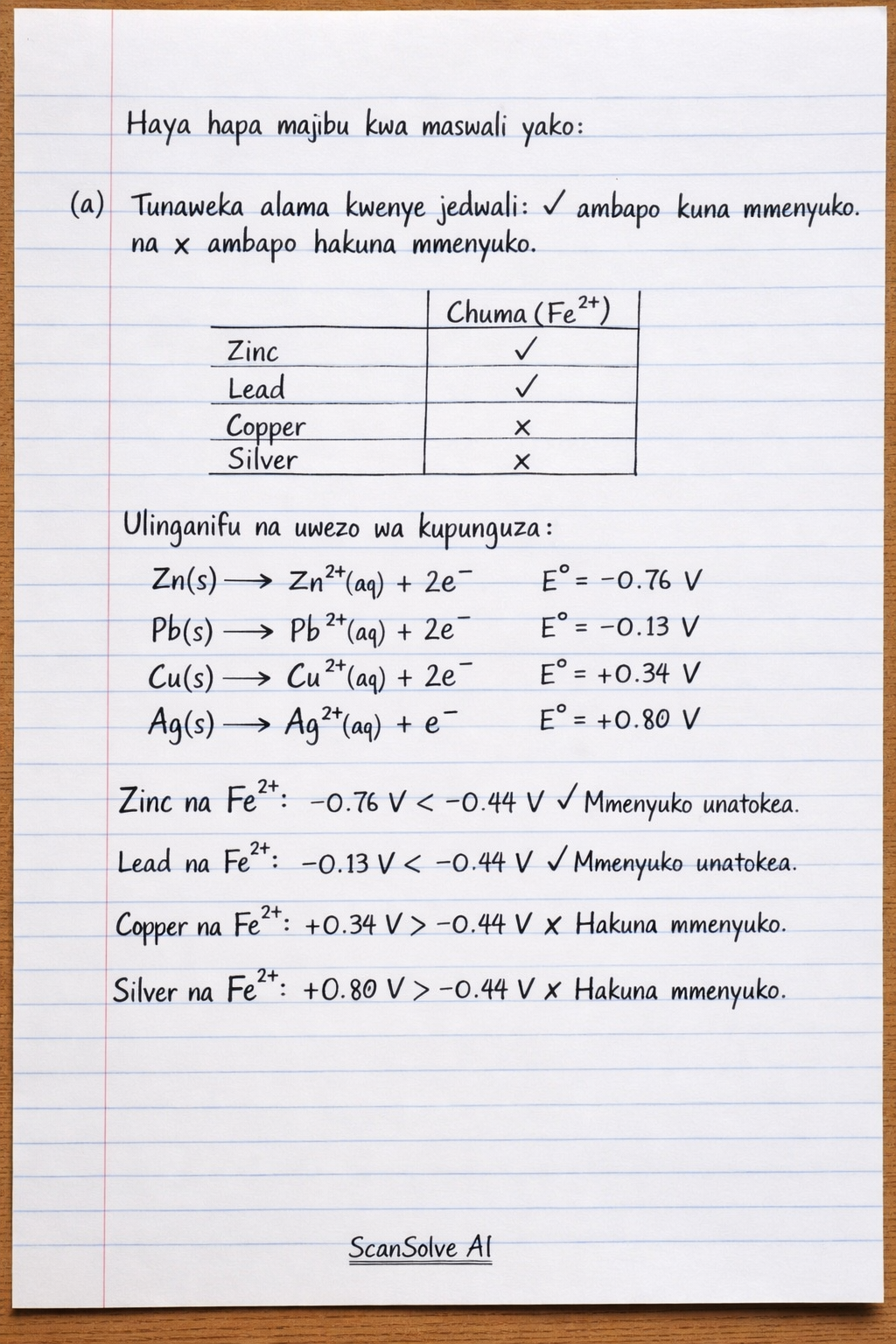

Handwritten step-by-step solution preview
