Calculate(i)the rate of energy consumption (ii)the total heat energy developed in 15mins in the circuit above

Economics

ScanSolve AI Answer

Answers

2 parts
i

12.5 W\text{12.5 W}

ii

11250 J\text{11250 J}

Step-by-step solution

4 steps

Here are the calculations for the circuit:

Part i· 2 steps

Calculate the rate of energy consumption

  1. Calculate the equivalent resistance of the two resistors connected in parallel.

    The formula for two resistors in parallel is Rp=R1×R2R1+R2R_p = \frac{R_1 \times R_2}{R_1 + R_2}.

    Rparallel=4 Ω×4 Ω4 Ω+4 Ω=16 Ω28 Ω=2 ΩR_{parallel} = \frac{4 \, \Omega \times 4 \, \Omega}{4 \, \Omega + 4 \, \Omega} = \frac{16 \, \Omega^2}{8 \, \Omega} = 2 \, \Omega
  2. Calculate the rate of energy consumption (power) for the circuit.

    The total current flowing into the parallel combination is I=2.5 AI = 2.5 \, \text{A}. The formula for power is P=I2RparallelP = I^2 R_{parallel}.

    P=(2.5 A)2×2 Ω=6.25 A2×2 Ω=12.5 WP = (2.5 \, \text{A})^2 \times 2 \, \Omega = 6.25 \, \text{A}^2 \times 2 \, \Omega = 12.5 \, \text{W}

    The rate of energy consumption is 12.5 W\boxed{\text{12.5 W}}.

Part ii

11250 J\text{11250 J}

Calculate the total heat energy developed in 15 minutes

  1. Convert the time from minutes to seconds.

    t=15 min×60 smin=900 st = 15 \, \text{min} \times 60 \, \frac{\text{s}}{\text{min}} = 900 \, \text{s}
  2. Calculate the total heat energy developed.

    The formula for heat energy is Q=P×tQ = P \times t, where PP is the power calculated in part (i).

    Q=12.5 W×900 s=11250 JQ = 12.5 \, \text{W} \times 900 \, \text{s} = 11250 \, \text{J}

    The total heat energy developed is 11250 J\boxed{\text{11250 J}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

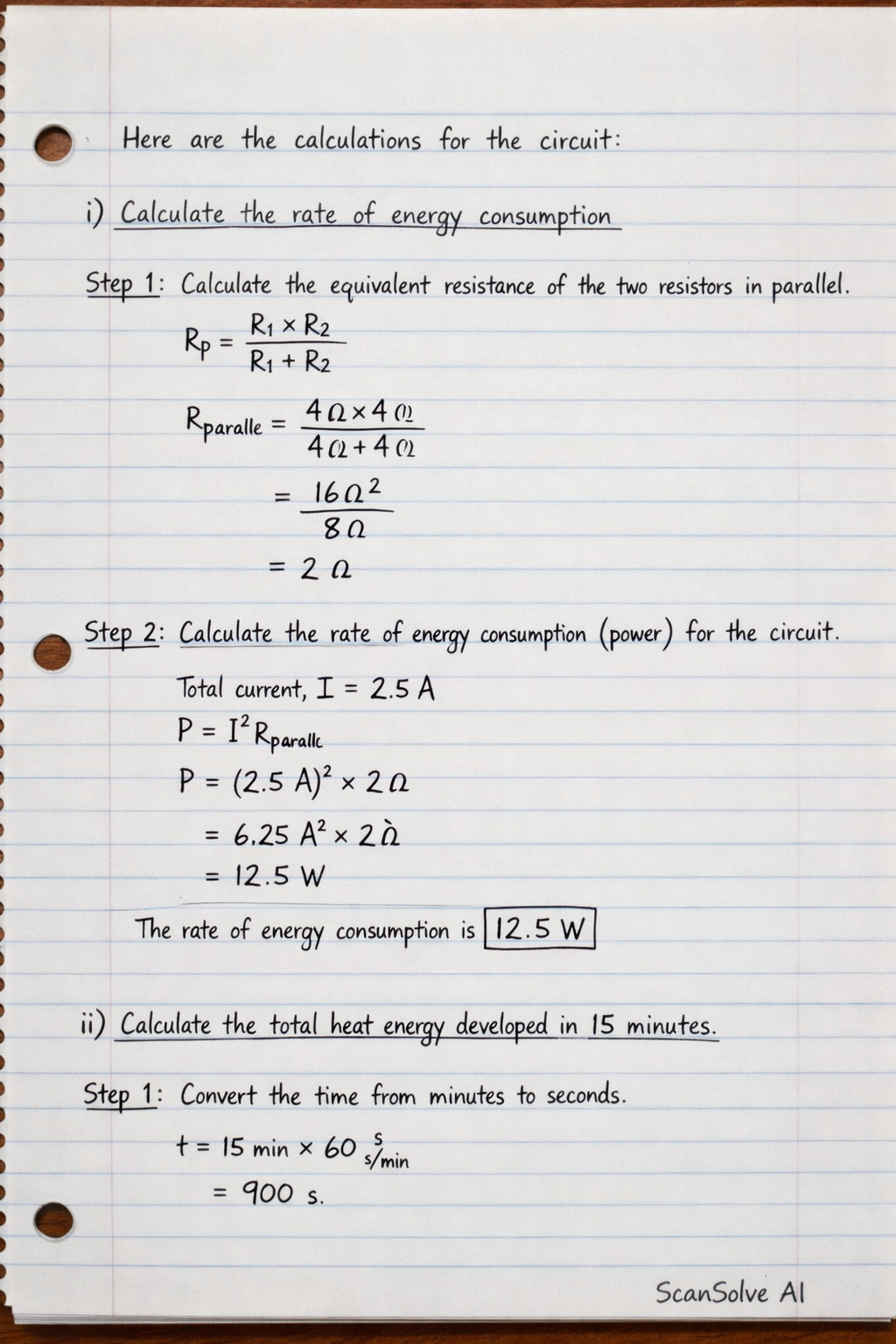

Handwritten step-by-step solution preview
