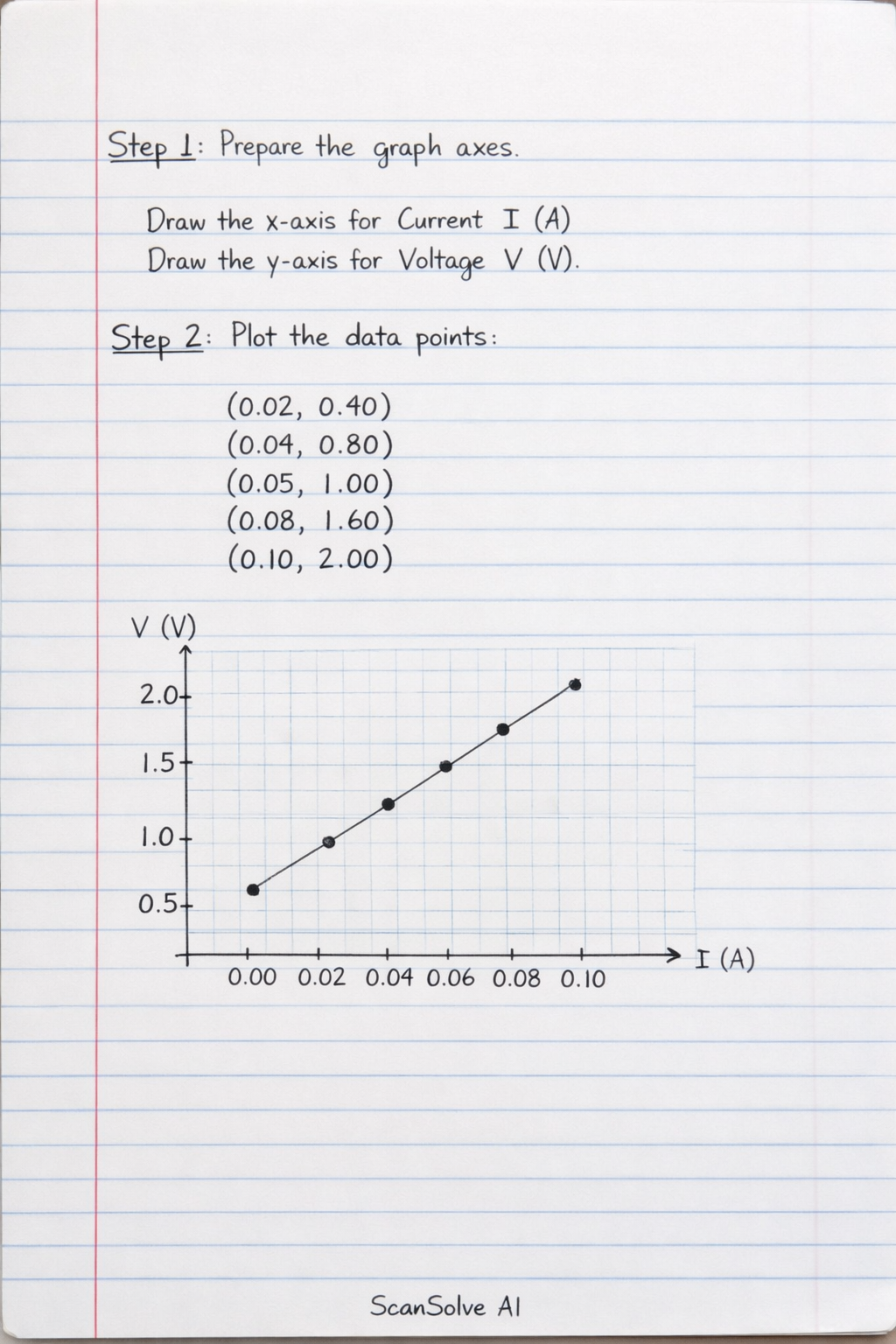

Hey sucess, good to see you again. To draw the graph and determine the slope, we will use the "Series" data provided. In this experiment, Voltage (V) is typically plotted on the y-axis and Current (I) on the x-axis. The slope of the V-I graph represents the resistance (R). Step 1: Prepare the graph axes Draw a horizontal axis (x-axis) for Current I (in Amperes, A) and a vertical axis (y-axis) for Voltage V (in Volts, V). Choose appropriate scales for both axes to accommodate the range of values. For current, the range is from 0.02 A to 0.10 A. For voltage, the range is from 0.40 V to 2.00 V. Step 2: Plot the data points Plot the following points on your graph paper: • (0.02 A, 0.40 V) • (0.04 A, 0.80 V) • (0.05 A, 1.00 V) • (0.08 A, 1.60 V) • (0.10 A, 2.00 V) Step 3: Draw the best-fit line Draw a straight line that passes through or is closest to all the plotted points. Since the data is linear, the line should pass through all points. Step 4: Determine the slope To calculate the slope, choose two distinct points on the best-fit line. We will use the first and last data points for accuracy. Point 1: (I_1, V_1) = (0.02 A, 0.40 V) Point 2: (I_2, V_2) = (0.10 A, 2.00 V) The formula for the slope m is: m = ( V)/( I) = (V_2 - V_1)/(I_2 - I_1) Substitute the values: m = 2.00 V - 0.40 V0.10 A - 0.02 A m = 1.60 V0.08 A m = 20 VA The unit VA is equivalent to Ohms (). The slope of the V-I graph represents the resistance of the circuit. The slope is 20 . Send me the next one 📸
