In the diagram below, a circle with the centre at A (−3; −1) and a tangent CD to the circle at point B. Given…

Question

In the diagram below, a circle with the centre at A (−3; −1) and a tangent CD to the circle at point B. Given also that CD cuts the x-axis at −6 and that the equation of the line segment AB (radius) is −x + 2y − 1 = 0.

ScanSolve AI Tutor · Accepted Answer

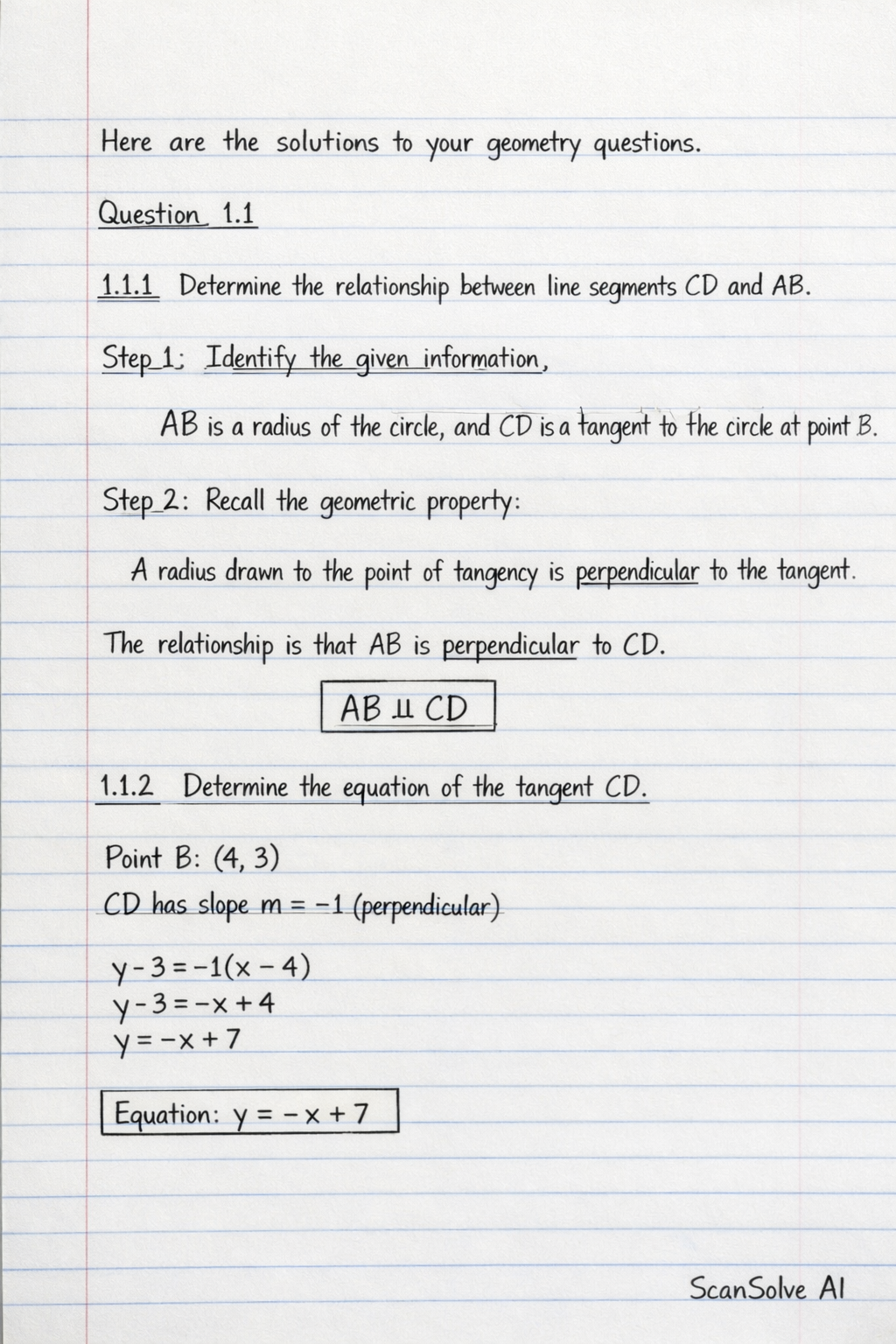

Here are the solutions to your geometry questions.

Question 1.1

1.1.1

Determine the relationship between line segments CD and AB.

Identify the given information.
AB is a radius of the circle, and CD is a tangent to the circle at point B.
Recall the geometric property that a radius drawn to the point of tangency is perpendicular to the tangent.
The relationship is that AB is perpendicular to CD.
$\boxed{\text{AB} \perp \text{CD}}$
1.1.2

Determine the equation of the tangent CD.
Find the gradient of the line segment AB.
The equation of AB is $-x + 2y - 1 = 0$ .
Rearrange to $y = mx + c$ form:
$2y = x + 1$ $y = \frac{1}{2}x + \frac{1}{2}$
The gradient of AB is $m_{AB} = \frac{1}{2}$ .
Determine the gradient of the tangent CD.
Since CD is perpendicular to AB, the product of their gradients is $-1$ .
$m_{CD} \cdot m_{AB} = -1$ $m_{CD} \cdot \frac{1}{2} = -1$ $m_{CD} = -2$
Use the point C $(-6, 0)$ (where CD cuts the $x$ -axis at $-6$ ) and the gradient $m_{CD} = -2$ to find the equation of CD using the point-slope form $y - y_1 = m(x - x_1)$ .
$y - 0 = -2(x - (-6))$ $y = -2(x + 6)$ $y = -2x - 12$
The equation of the tangent CD is $\boxed{y = -2x - 12}$ .

1.1.3

Determine the coordinates of point B.
Point B is the intersection of line AB and line CD.
We have their equations:
Equation of AB: $-x + 2y - 1 = 0$ (1)
Equation of CD: $y = -2x - 12$ (2)
Substitute equation (2) into equation (1) to solve for $x$ .
$-x + 2(-2x - 12) - 1 = 0$ $-x - 4x - 24 - 1 = 0$ $-5x - 25 = 0$ $-5x = 25$ $x = -5$
Substitute $x = -5$ into equation (2) to solve for $y$ .
$y = -2(-5) - 12$ $y = 10 - 12$ $y = -2$
The coordinates of point B are $\boxed{(-5, -2)}$ .

1.1.4

Determine the equation of the circle in the form $(x - a)^2 + (y - b)^2 = r^2$ .
Identify the center of the circle.
The center is A $(-3, -1)$ . So, $a = -3$ and $b = -1$ .
Calculate the radius $r$ .
The radius is the distance between the center A $(-3, -1)$ and point B $(-5, -2)$ (a point on the circle). Use the distance formula $r = \sqrt{(x_2 - x_1)^2 + (y_2 - y_1)^2}$ .
$r = \sqrt{(-5 - (-3))^2 + (-2 - (-1))^2}$ $r = \sqrt{(-5 + 3)^2 + (-2 + 1)^2}$ $r = \sqrt{(-2)^2 + (-1)^2}$ $r = \sqrt{4 + 1}$ $r = \sqrt{5}$
Square the radius to get $r^2$ .
$r^2 = (\sqrt{5})^2 = 5$
Substitute the center coordinates and $r^2$ into the standard equation of a circle.
$(x - (-3))^2 + (y - (-1))^2 = 5$ $(x + 3)^2 + (y + 1)^2 = 5$
The equation of the circle is $\boxed{(x + 3)^2 + (y + 1)^2 = 5}$ .
