We read your photo as:

1a) Coulomb's Law states that:

Physics

ScanSolve AI Answer

Step-by-step solution

5 steps

1a) Coulomb's Law states that:

  • The magnitude of the electrostatic force between two point charges is directly proportional to the product of the magnitudes of the charges and inversely proportional to the square of the distance between them.
  • The force acts along the line joining the two charges. It is repulsive if the charges have the same sign and attractive if they have opposite signs.

1b)

  1. Identify the given values and convert them to SI units.

    Charge 1, q1=2μC=2×10−6Cq_1 = 2\mu C = 2 \times 10^{-6} C
    Charge 2, q2=12μC=12×10−6Cq_2 = 12\mu C = 12 \times 10^{-6} C
    Distance, r=650mm=0.650mr = 650mm = 0.650 m
    Coulomb's constant, k=14πϵ0≈8.9875×109 N⋅m2/C2k = \frac{1}{4\pi\epsilon_0} \approx 8.9875 \times 10^9 \, \text{N} \cdot \text{m}^2/\text{C}^2

  2. Apply Coulomb's Law formula for the magnitude of the force.

    F=k∣q1q2∣r2F = k \frac{|q_1 q_2|}{r^2}

  3. Substitute the values into the formula.

    F=(8.9875×109 N⋅m2/C2)∣(2×10−6 C)(12×10−6 C)∣(0.650 m)2F = (8.9875 \times 10^9 \, \text{N} \cdot \text{m}^2/\text{C}^2) \frac{|(2 \times 10^{-6} \, \text{C})(12 \times 10^{-6} \, \text{C})|}{(0.650 \, \text{m})^2}

  4. Calculate the product of the charges and the square of the distance.

    ∣q1q2∣=(2×10−6)(12×10−6)=24×10−12 C2|q_1 q_2| = (2 \times 10^{-6})(12 \times 10^{-6}) = 24 \times 10^{-12} \, \text{C}^2 r2=(0.650)2=0.4225 m2r^2 = (0.650)^2 = 0.4225 \, \text{m}^2

  5. Perform the final calculation.

    F=(8.9875×109)24×10−120.4225F = (8.9875 \times 10^9) \frac{24 \times 10^{-12}}{0.4225} F=215.7×10−30.4225F = \frac{215.7 \times 10^{-3}}{0.4225} F≈0.5105 NF \approx 0.5105 \, \text{N}

    The magnitude of the force between the charges is approximately 0.511 N.

    0.511 N\boxed{0.511 \, \text{N}}
Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QWhat is Coulomb's Law and what are the initial conditions for a charge q1?QRecall Coulomb's Law, which states that the electrostatic force (F) between two charges is inversely…QWhich of the following statements are NOT true? (A) Coulomb's law is inverse square law. (B) In…QState coulombs law a capacitor storesQ1a. States Faradays laws of electro-magnetic induction. 1b. From the second law shown that the…
Browse by topic:Electromagnetism
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

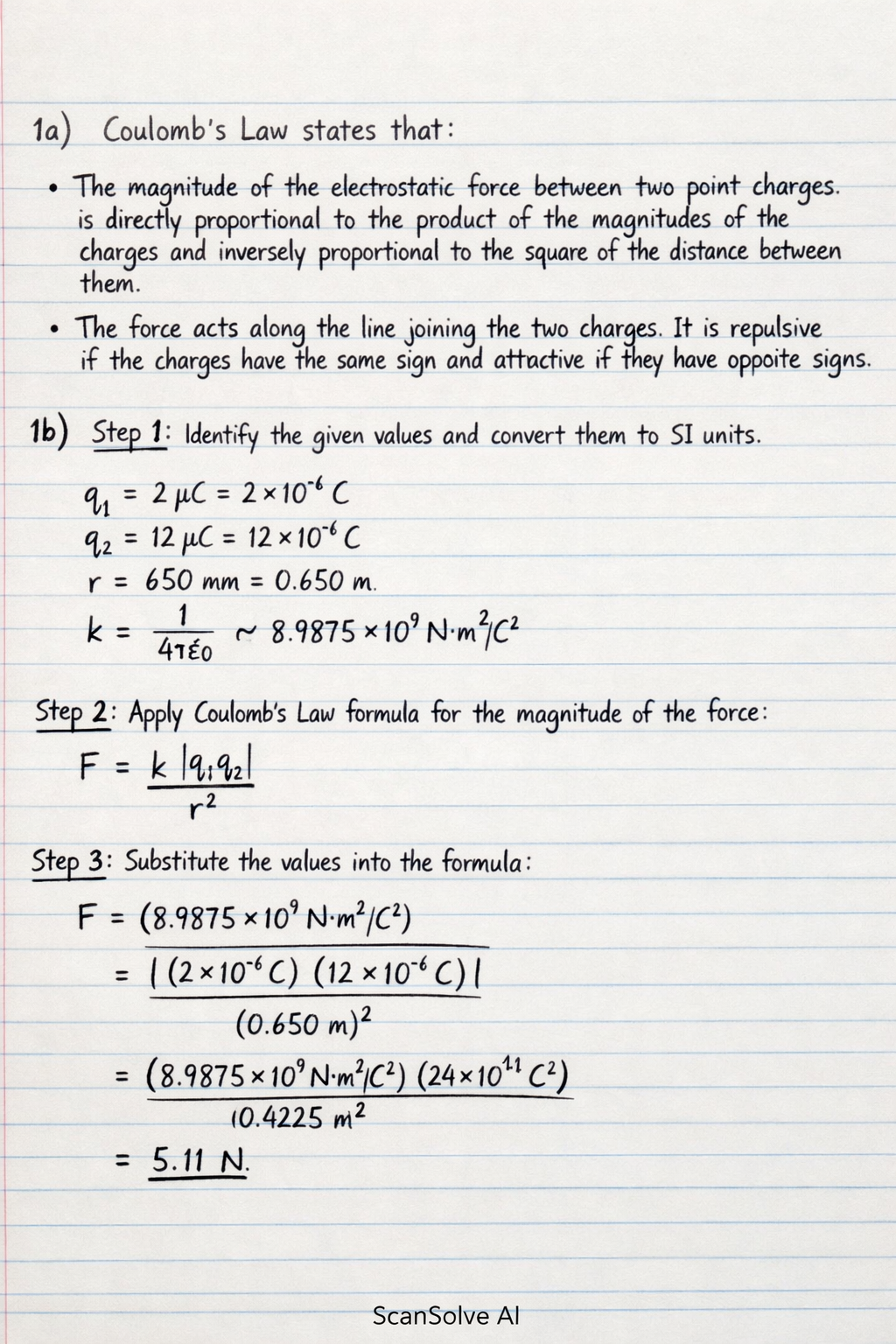

Handwritten step-by-step solution preview
