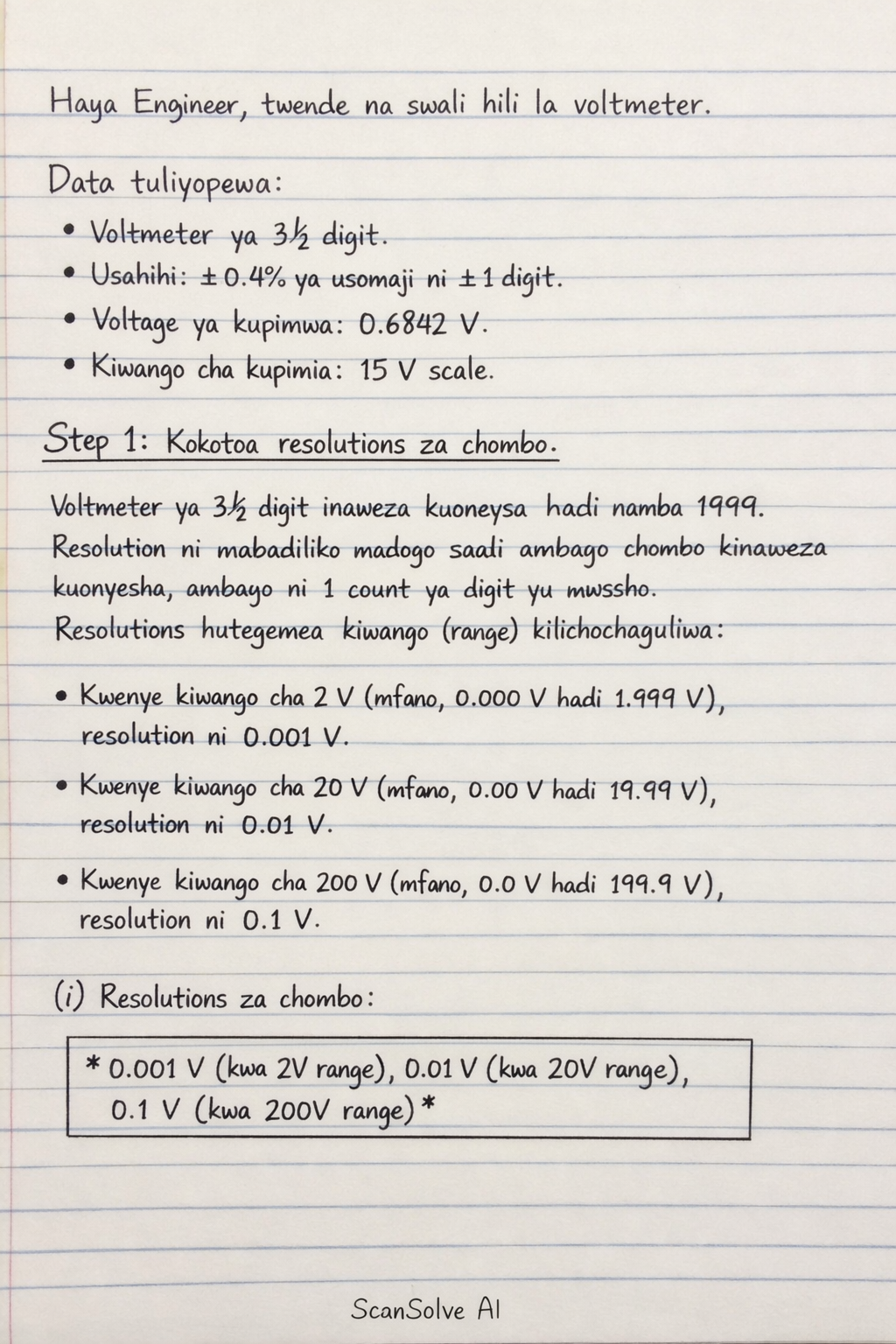

Haya Engineer, twende na swali hili la voltmeter. Data tuliyopewa: Voltmeter ya 3(1)/(2) digit. Usahihi: ± 0.4\% ya usomaji na ± 1 digit. Voltage ya kupimwa: 0.6842 \ V. Kiwango cha kupimia: 15 \ V scale. Step 1: Kokotoa resolutions za chombo. Voltmeter ya 3(1)/(2) digit inaweza kuonyesha hadi namba 1999. Resolution ni mabadiliko madogo zaidi ambayo chombo kinaweza kuonyesha, ambayo ni 1 count ya digit ya mwisho. Resolutions hutegemea kiwango (range) kilichochaguliwa: • Kwenye kiwango cha 2 \ V (mfano, 0.000 \ V hadi 1.999 \ V), resolution ni 0.001 \ V. • Kwenye kiwango cha 20 \ V (mfano, 0.00 \ V hadi 19.99 \ V), resolution ni 0.01 \ V. • Kwenye kiwango cha 200 \ V (mfano, 0.0 \ V hadi 199.9 \ V), resolution ni 0.1 \ V. (i) Resolutions za chombo: 0.001 V (kwa 2V range), 0.01 V (kwa 20V range), 0.1 V (kwa 200V range) Step 2: Amua jinsi voltage ya 0.6842 \ V itaonyeshwa kwenye kiwango cha 15 \ V. Kiwango cha 15 \ V kinamaanisha kuwa voltmeter imewekwa kwenye range inayoweza kupima hadi 15 \ V. Kwa voltmeter ya 3(1)/(2) digit, range inayofaa zaidi ni 20 \ V (ambayo huonyesha hadi 19.99 \ V). Kwenye range hii ya 20 \ V, resolution ni 0.01 \ V. Hii inamaanisha kuwa usomaji utazungushwa hadi sehemu mbili za desimali. Voltage ya kuonyeshwa ni 0.6842 \ V. Kuzungusha 0.6842 \ V hadi sehemu mbili za desimali kunatoa 0.68 \ V. (ii) Jinsi voltage ya 0.6842 \ V itaonyeshwa: 0.68 V Last free one today — make it count tomorrow, or type /upgrade for unlimited.
