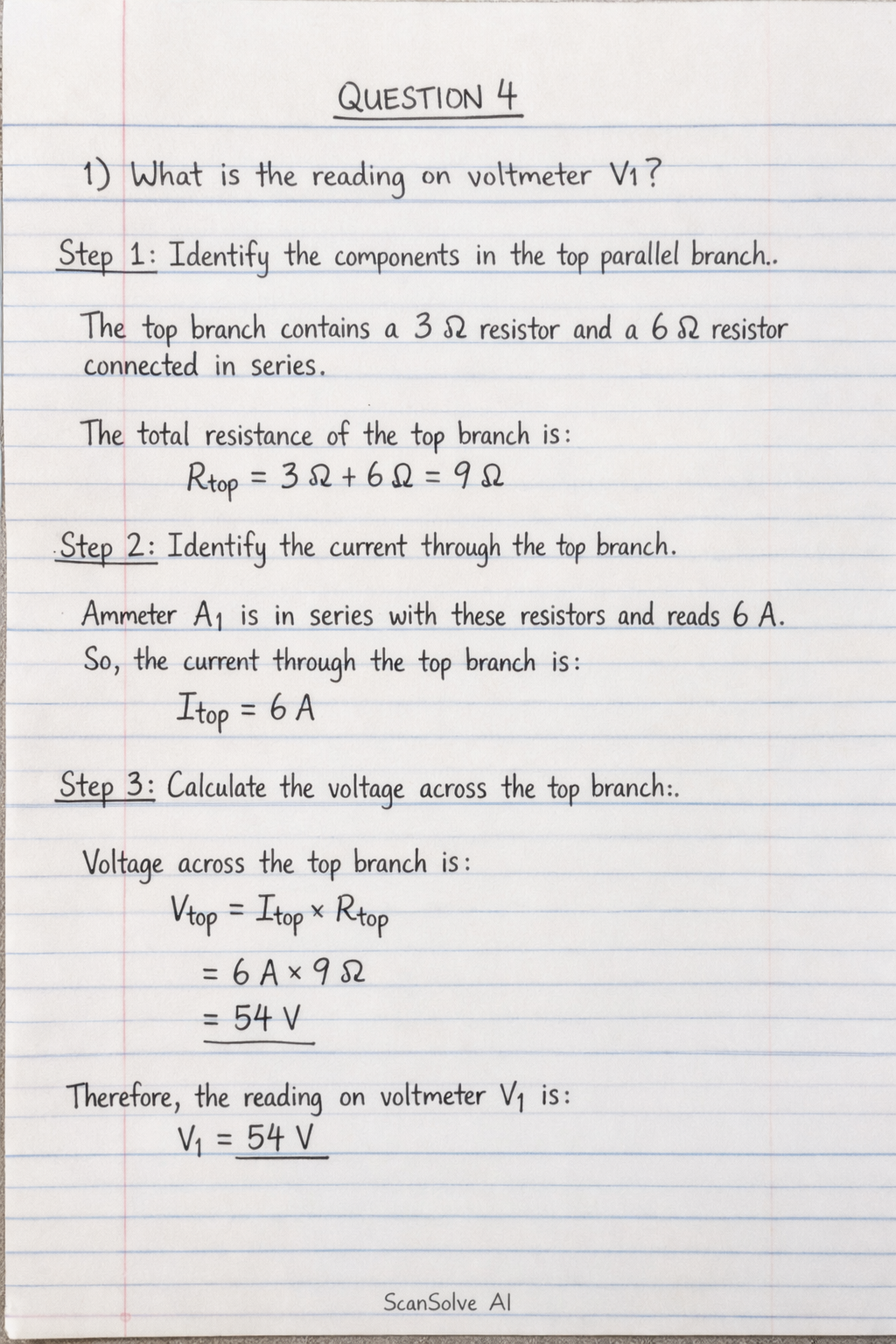

QUESTION 4 1) What is the reading on voltmeter V1? Step 1: Identify the components in the top parallel branch. The top branch contains a 3 \, resistor and a 6 \, resistor connected in series. The total resistance of the top branch is R_top = 3 \, + 6 \, = 9 \, . Step 2: Identify the current through the top branch. Ammeter A1 is in series with these resistors and reads 6 \, A. So, the current through the top branch is I_top = 6 \, A. Step 3: Calculate the voltage across the top
