We read your photo as:

A body starts from rest and accelerates at 2 m/s² and then retards at 3 m/s² to come to rest. If the total time taken is 10 s, find the maximum speed attained.

Physics

ScanSolve AI Answer

Answer

12 m/s\text{12 m/s}

Step-by-step solution

4 steps

  1. Identify the given values.

    The body starts from rest and accelerates with a1=2 m/s2a_1 = 2 \text{ m/s}^2.
    It then retards to rest with a2=3 m/s2a_2 = 3 \text{ m/s}^2.
    The total time taken is t=10 st = 10 \text{ s}.

  2. Use the formula for maximum velocity.

    When a body starts from rest, accelerates with a1a_1 for time t1t_1 to reach maximum velocity vmaxv_{max}, and then retards with a2a_2 for time t2t_2 to come to rest, the maximum velocity attained is given by the formula:

    vmax=a1a2a1+a2tv_{max} = \frac{a_1 a_2}{a_1 + a_2} t

  3. Substitute the given values into the formula.

    vmax=2 m/s2×3 m/s22 m/s2+3 m/s2×10 sv_{max} = \frac{2 \text{ m/s}^2 \times 3 \text{ m/s}^2}{2 \text{ m/s}^2 + 3 \text{ m/s}^2} \times 10 \text{ s}

  4. Calculate the maximum speed.

    vmax=6 m2/s45 m/s2×10 sv_{max} = \frac{6 \text{ m}^2/\text{s}^4}{5 \text{ m/s}^2} \times 10 \text{ s} vmax=65×10 m/sv_{max} = \frac{6}{5} \times 10 \text{ m/s} vmax=1.2×10 m/sv_{max} = 1.2 \times 10 \text{ m/s} vmax=12 m/sv_{max} = 12 \text{ m/s}

    The maximum speed attained is 12 m/s12 \text{ m/s}. This corresponds to option (1).

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QA car accelerates from rest to 20 m/s in 10s, stays at 20 m/s for 20s, then decelerates to rest in…QA body accelerates uniformly from rest at 2 ms-².calculate the magnitude of it's velocity after…QA body accelerates from rest at 0.2m/s2 for one-fifth of a minute - calculate the distance covered…QA car accelerates from rest to 20 m/s in 10 s, maintains this speed for 20 s, and then decelerates…QA body starts from rest and moves with uniform acceleration. If its velocity after 5 seconds is 20…
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

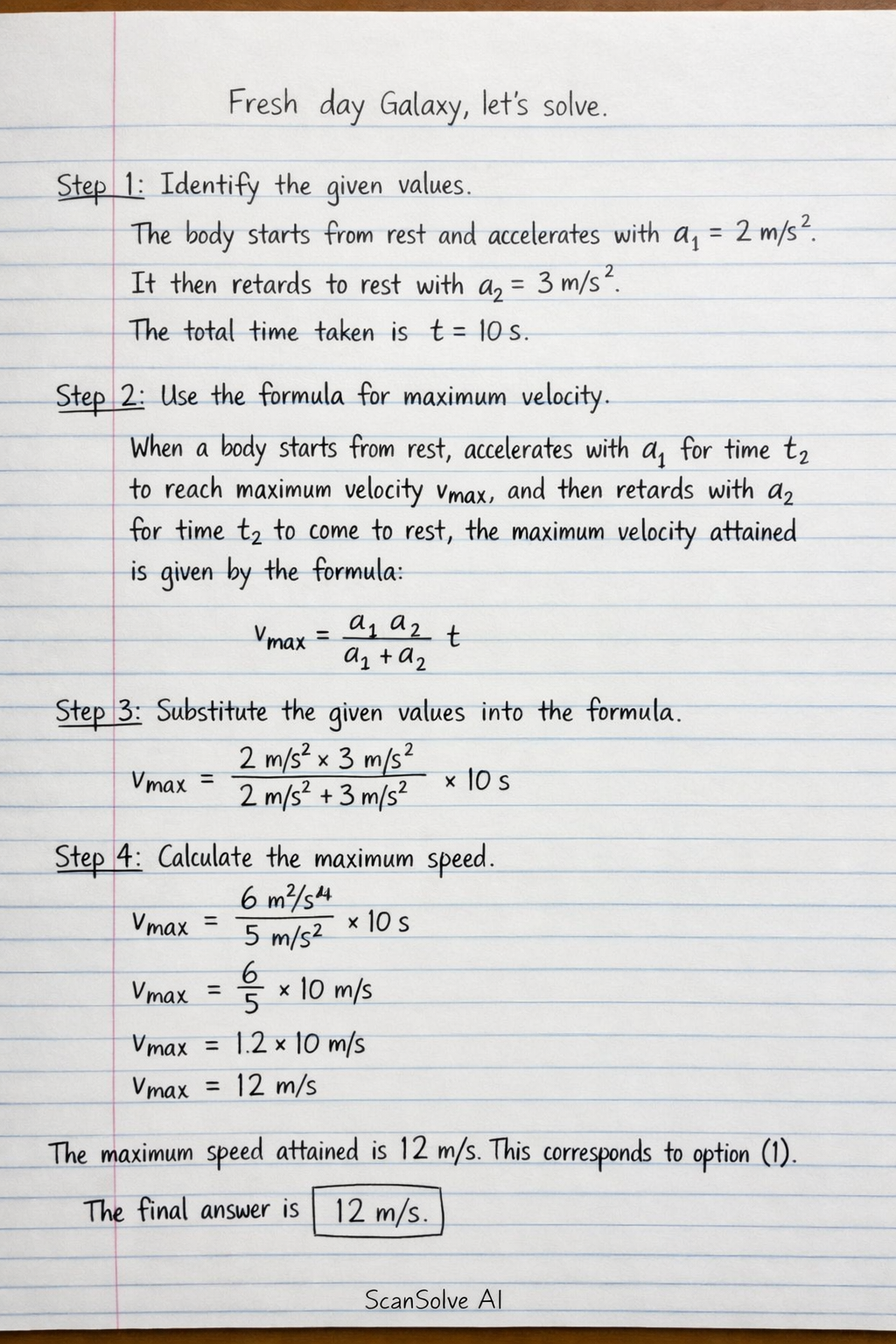

Handwritten step-by-step solution preview
