A capacitor has 7 parallel plates separated by sheets of mica 0.5mm thick and a relative permittivity of 6. The capacitor whose area of each plate is 500 cm 2 is connected to a 400V supply, Calculate the; i Capacitance of the capacitor ii Charge in the capacitor (Eo = 8.85 × 10⁻¹² fm⁻¹)

ScanSolve AI Tutor · Accepted Answer

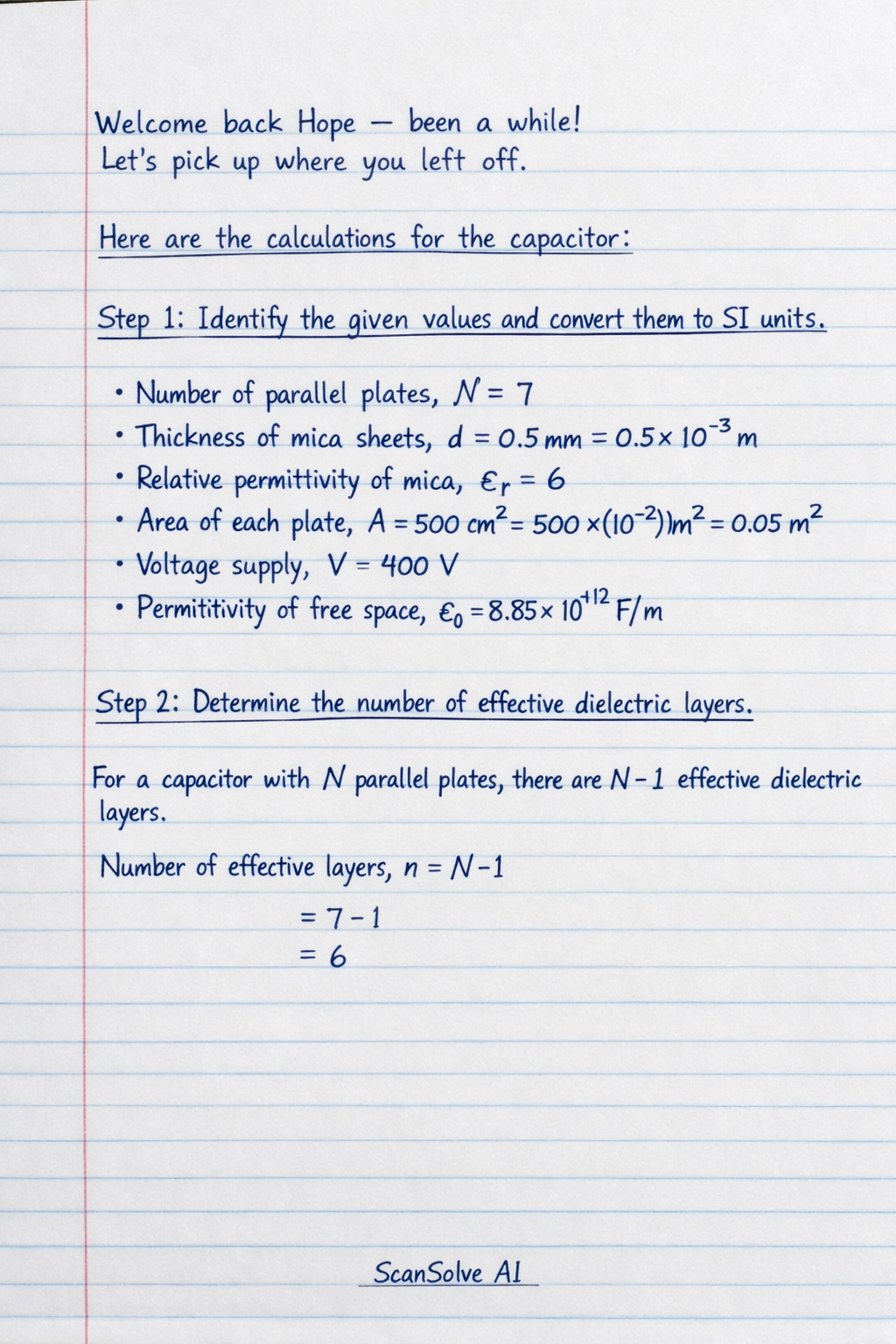

Here are the calculations for the capacitor:

Identify the given values and convert them to SI units.
- Number of parallel plates, $N = 7$
- Thickness of mica sheets, $d = 0.5 \, \text{mm} = 0.5 \times 10^{-3} \, \text{m}$
- Relative permittivity of mica, $\epsilon_r = 6$
- Area of each plate, $A = 500 \, \text{cm}^2 = 500 \times (10^{-2})^2 \, \text{m}^2 = 0.05 \, \text{m}^2$
- Voltage supply, $V = 400 \, \text{V}$
- Permittivity of free space, $\epsilon_0 = 8.85 \times 10^{-12} \, \text{F/m}$
Determine the number of effective dielectric layers.
For a capacitor with $N$ parallel plates, there are $N-1$ effective dielectric layers.
Number of effective layers, $n = N-1 = 7-1 = 6$ .
Calculate the capacitance of the capacitor.
The formula for the capacitance of a multi-plate capacitor is:
$C = (N-1) \frac{\epsilon_r \epsilon_0 A}{d}$
Substitute the values:
$C = 6 \times \frac{6 \times 8.85 \times 10^{-12} \, \text{F/m} \times 0.05 \, \text{m}^2}{0.5 \times 10^{-3} \, \text{m}}$ $C = 6 \times \frac{2.655 \times 10^{-12} \, \text{F}}{0.5 \times 10^{-3}}$ $C = 6 \times 5.31 \times 10^{-9} \, \text{F}$ $C = 31.86 \times 10^{-9} \, \text{F}$ $C = 31.86 \, \text{nF}$
The capacitance of the capacitor is $\boxed{\text{31.86 nF}}$ .
Calculate the charge in the capacitor.
The formula for charge is $Q = CV$ .
Substitute the calculated capacitance and the given voltage:
$Q = 31.86 \times 10^{-9} \, \text{F} \times 400 \, \text{V}$ $Q = 12744 \times 10^{-9} \, \text{C}$ $Q = 1.2744 \times 10^{-5} \, \text{C}$
The charge in the capacitor is $\boxed{\text{1.2744} \times 10^{-5} \, \text{C}}$ .
