A man of mass 70 kg is standing on a weighing scale in a lift. Calculate the reading on the scale when the lift is moving upward with an acceleration of 2 m/s², downward with an acceleration of 2 m/s²

Physics

ScanSolve AI Answer

Answers

4 parts
a

826 N826 \text{ N}

b

546 N546 \text{ N}

c

686 N686 \text{ N}

d

0 N0 \text{ N}

Step-by-step solution

8 steps

The reading on the scale is the normal force (NN) exerted by the scale on the man. We use Newton's second law, ∑F=ma\sum F = ma. Taking the upward direction as positive, the forces acting on the man are the normal force (NN) upwards and his weight (mgmg) downwards.
So, N−mg=maN - mg = ma, which means N=m(g+a)N = m(g+a).
Given:
Mass of the man (mm) = 70 kg70 \text{ kg}
Acceleration due to gravity (gg) = 9.8 m/s29.8 \text{ m/s}^2

Part a· 2 steps

The lift is moving upward with an acceleration of 2 m/s22 \text{ m/s}^2.

  1. Identify the acceleration.

    The acceleration (aa) is +2 m/s2+2 \text{ m/s}^2 (upward is positive).

  2. Calculate the normal force.

    N=m(g+a)N = m(g+a) N=70 kg(9.8 m/s2+2 m/s2)N = 70 \text{ kg} (9.8 \text{ m/s}^2 + 2 \text{ m/s}^2) N=70 kg(11.8 m/s2)N = 70 \text{ kg} (11.8 \text{ m/s}^2) N=826 NN = 826 \text{ N}

    The reading on the scale is 826 N\boxed{826 \text{ N}}.

Part b

546 N546 \text{ N}

The lift is moving downward with an acceleration of 2 m/s22 \text{ m/s}^2.

  1. Identify the acceleration.

    The acceleration (aa) is −2 m/s2-2 \text{ m/s}^2 (downward is negative).

  2. Calculate the normal force.

    N=m(g+a)N = m(g+a) N=70 kg(9.8 m/s2−2 m/s2)N = 70 \text{ kg} (9.8 \text{ m/s}^2 - 2 \text{ m/s}^2) N=70 kg(7.8 m/s2)N = 70 \text{ kg} (7.8 \text{ m/s}^2) N=546 NN = 546 \text{ N}

    The reading on the scale is 546 N\boxed{546 \text{ N}}.

Part c

686 N686 \text{ N}

The lift is moving with constant velocity.

  1. Identify the acceleration.

    Constant velocity means the acceleration (aa) is 0 m/s20 \text{ m/s}^2.

  2. Calculate the normal force.

    N=m(g+a)N = m(g+a) N=70 kg(9.8 m/s2+0 m/s2)N = 70 \text{ kg} (9.8 \text{ m/s}^2 + 0 \text{ m/s}^2) N=70 kg(9.8 m/s2)N = 70 \text{ kg} (9.8 \text{ m/s}^2) N=686 NN = 686 \text{ N}

    The reading on the scale is 686 N\boxed{686 \text{ N}}.

Part d

0 N0 \text{ N}

The lift is in free fall.

  1. Identify the acceleration.

    In free fall, the acceleration (aa) is equal to the acceleration due to gravity, but in the downward direction, so a=−g=−9.8 m/s2a = -g = -9.8 \text{ m/s}^2.

  2. Calculate the normal force.

    N=m(g+a)N = m(g+a) N=70 kg(9.8 m/s2−9.8 m/s2)N = 70 \text{ kg} (9.8 \text{ m/s}^2 - 9.8 \text{ m/s}^2) N=70 kg(0 m/s2)N = 70 \text{ kg} (0 \text{ m/s}^2) N=0 NN = 0 \text{ N}

    The reading on the scale is 0 N\boxed{0 \text{ N}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QA 60 kg man stands on a spring scale in an elevator. The scale reads 540 N. What is the acceleration…QA body of mass 5 kg is placed in a lift. Find the reaction between the floor of the lift and the…QA man of mass 80 kg is in a lift moving upwards. Calculate the normal force exerted by the floor on…QThe mass of an elevator is 500 kg. Calculate the tension in the cable when the elevator is (i)…QA) ii) Calculate the weight of the body on the planet. b) Explain this observation. c) A man of mass…
Browse by topic:Mechanics
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

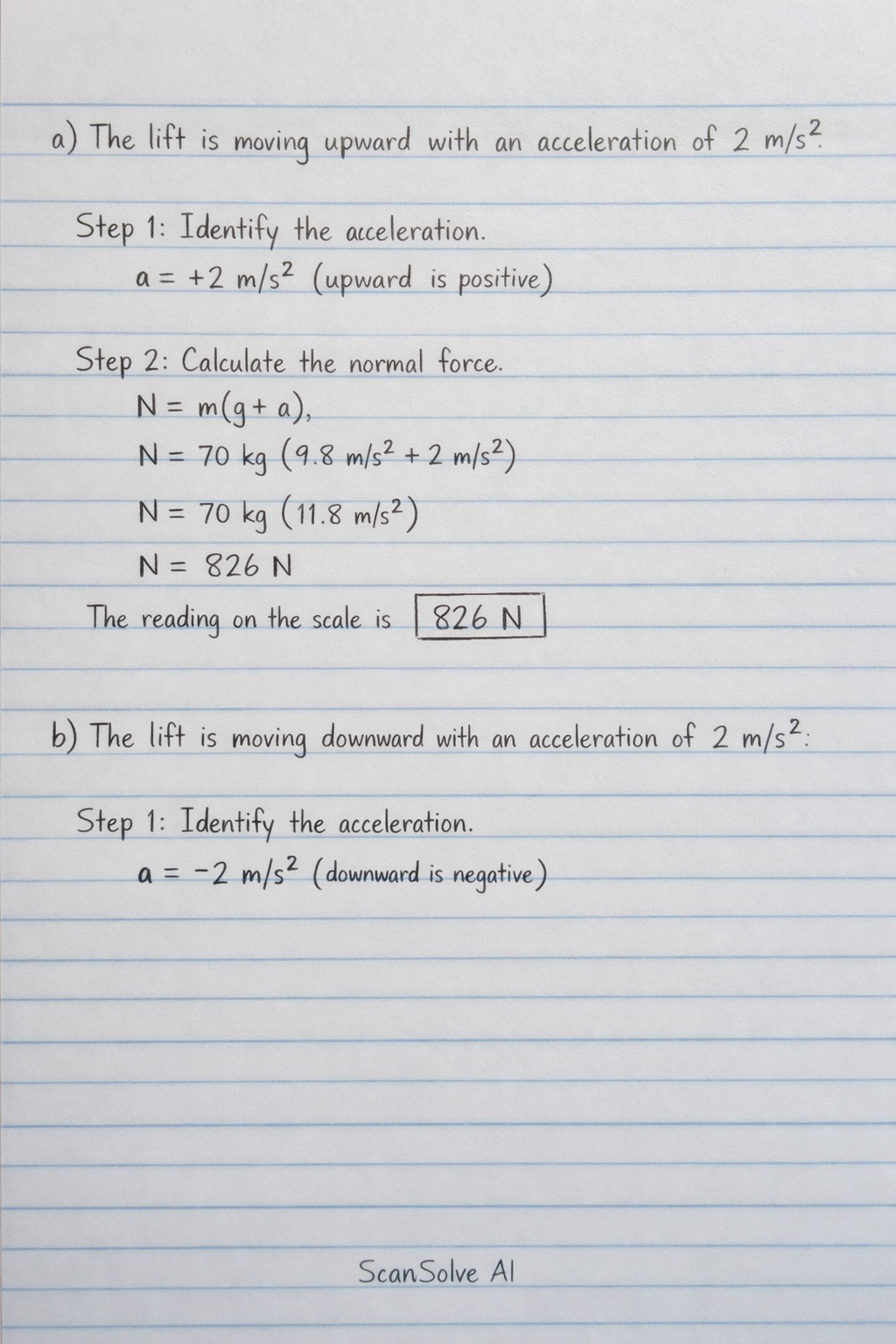

Handwritten step-by-step solution preview
