We read your photo as:
A ray from a fixed object is incident on a plane mirror at an angle of 20°. If the mirror is rotated through 30° by how many degrees would the reflected ray change its direction?
Physics
ScanSolve AI Answer
Answer
Step-by-step solution
3 stepsIdentify the given angle of rotation for the mirror.
The mirror is rotated through an angle of . Let this be .
Recall the relationship between the rotation of a plane mirror and the rotation of the reflected ray when the incident ray is fixed.
When a plane mirror is rotated by an angle about an axis in its plane, and the incident ray is kept fixed, the reflected ray rotates by an angle in the same direction.
Calculate the rotation of the reflected ray.
The angle of rotation of the reflected ray is .
The reflected ray would rotate by .
The final answer is .
Was this helpful?
Try one yourself
A new problem that tests the same skill.
Still stuck on this one?
Ask a follow-up, and the answer starts from this question.
Got a different question?Ask your own question
More Physics Questions
QA concave mirror has a radius of curvature of 20 cm. If an object is placed 30 cm away from the…QA light ray travels from oil (n=2) into glass (n=1.5). If the angle of incidence is 30 degrees, what…QA ray of light makes a glancing angle of incidence of 60° with a flat glass surface. Given that the…QHow do you draw a ray diagram for a convex mirror, and what are the characteristics of the image…QExplain the path of a light ray through a right-angled isosceles prism when the critical angle is 42…

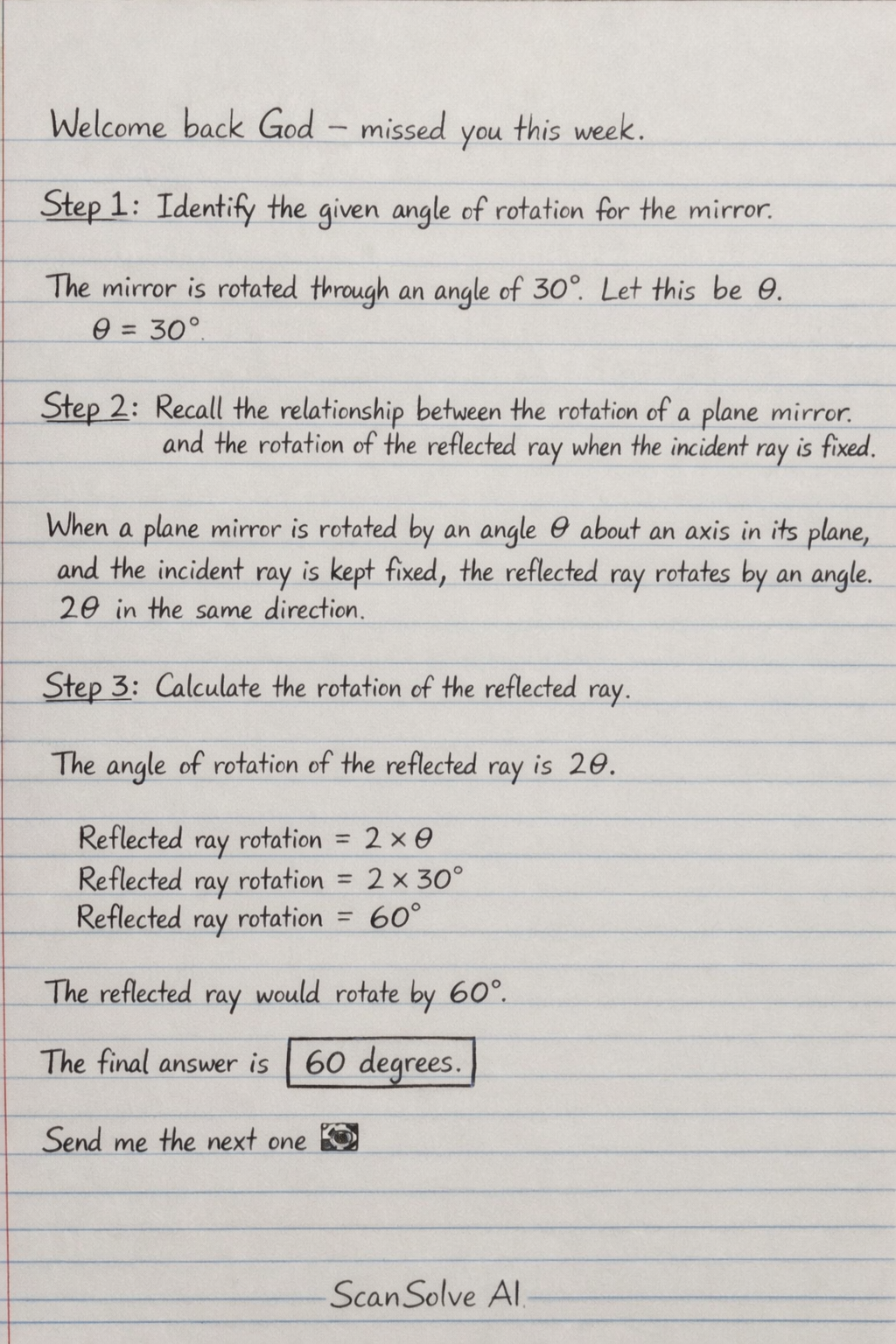

Handwritten Step-by-Step Solution
