A stone weighs 70 N in air and 50 N when fully submerged in water. Calculate its relative density and explain the apparent loss of weight.

Physics

ScanSolve AI Answer

Answers

4 parts
a(i)

70 N70 \text{ N}

a(ii)

50 N50 \text{ N}

b(i)

20 N20 \text{ N}

b(ii)
3.5

Step-by-step solution

5 steps

Part a(i)· 1 step

  1. Read the value from the spring balance W1W_1.

    The pointer for W1W_1 is at the 70 N70 \text{ N} mark.

    W1=70 NW_1 = \boxed{70 \text{ N}}

Part a(ii)

50 N50 \text{ N}

  1. Read the value from the spring balance W2W_2.

    The pointer for W2W_2 is at the 50 N50 \text{ N} mark.

    W2=50 NW_2 = \boxed{50 \text{ N}}

Part b(i)

20 N20 \text{ N}

  1. Calculate the apparent loss of weight.

    The apparent loss of weight is the difference between the weight in air and the weight in water.

    Apparent loss of weight=W1−W2\text{Apparent loss of weight} = W_1 - W_2 Apparent loss of weight=70 N−50 N\text{Apparent loss of weight} = 70 \text{ N} - 50 \text{ N} Apparent loss of weight=20 N\text{Apparent loss of weight} = \boxed{20 \text{ N}}

Part b(ii)3.5

  1. Calculate the relative density.

    Relative density is the ratio of the weight of the stone in air to the apparent loss of weight in water.

    Relative density=W1Apparent loss of weight\text{Relative density} = \frac{W_1}{\text{Apparent loss of weight}} Relative density=70 N20 N\text{Relative density} = \frac{70 \text{ N}}{20 \text{ N}} Relative density=3.5\text{Relative density} = \boxed{3.5}

Part c· 1 step

  1. Explain the apparent loss of weight.

    The apparent loss of weight is due to the upthrust (or buoyant force) exerted by the water on the submerged stone. According to Archimedes' principle, this upthrust is equal to the weight of the water displaced by the stone, which acts upwards, making the stone appear lighter.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QA stone weighs 80 N in air and 50 N in water. Calculate its apparent loss of weight and relative…QA piece of wood weighs 2 N in air and 1 N when fully submerged in water. Calculate its relative…QA pendulum bob weighs 80 N in air. When immersed in water, it weighs 70 N. When immersed in liquid…QA stone with a mass of 2400 g is submerged in water in a rectangular tank with base dimensions 17 cm…QA rock has a mass of 30g. When submerged in water, it displaces 3mL of water. What is the rock's…
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

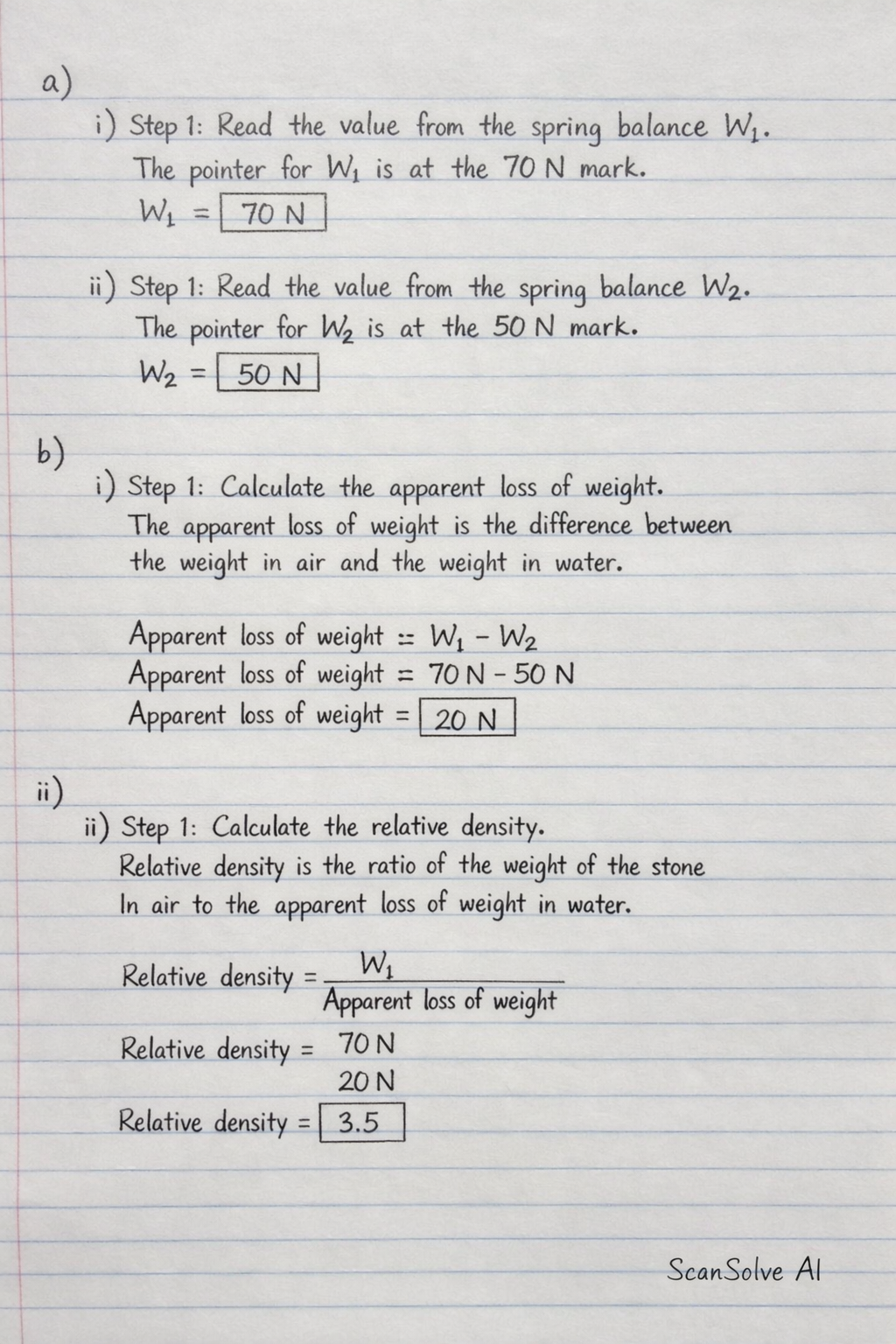

Handwritten step-by-step solution preview
