a) Two types of circuit connections are:
This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.
ScanSolve AI Answer

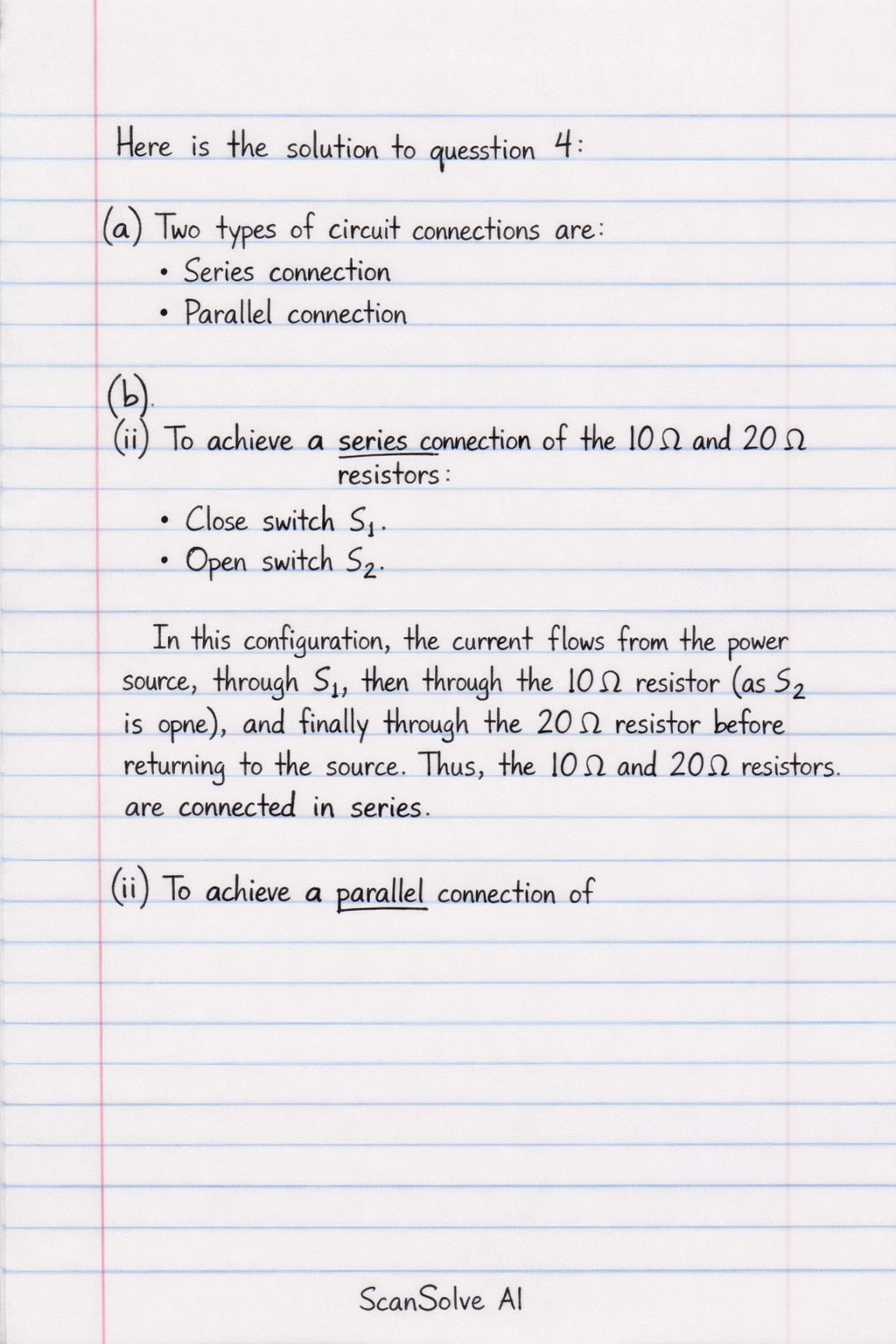

Here is the solution to question 4:
a) Two types of circuit connections are:
• Series connection
• Parallel connection
b)
i) To achieve a series connection of the 10 $\Omega$ and 20 $\Omega$ resistors:
• Close switch S1.
• Open switch S2.
In this configuration, the current flows from the power source, through S1, then through the 10 $\Omega$ resistor (as S2 is open), and finally through the 20 $\Omega$ resistor before returning to the source. Thus, the 10 $\Omega$ and 20 $\Omega$ resistors are connected in series.
ii) To achieve a parallel connection of
