Answer six questions from this part: Question 1 and any other five. Question 1 carries 5 marks while others carry 3 marks each.

Physics

ScanSolve AI Answer

Answer

c

5\text{5}

Step-by-step solution

3 steps

Part a

Two materials required for the construction of a d.c. generator are

  • Copper (for windings, armature coil, and commutator segments)
  • Soft iron or steel (for the core of the armature and field magnets)

Part b

The distinction between flat plate and focusing collectors is

  • Flat plate collectors absorb solar radiation over a large, flat surface and collect both direct and diffuse sunlight, typically achieving lower temperatures.
  • Focusing collectors use mirrors or lenses to concentrate direct sunlight onto a smaller absorber area, achieving much higher temperatures.

Part c

5\text{5}

To calculate the magnification of the eyepiece, we use the formula for the total magnification of a compound microscope.

  1. State the given values.

    The magnification produced by the objective lens, Mo=4M_o = 4.
    The total magnifying power of the microscope, M=20M = 20.

  2. Use the formula for total magnification.

    The total magnification of a compound microscope is the product of the magnification of the objective lens and the magnification of the eyepiece (MeM_e).

    M=Mo×MeM = M_o \times M_e

  3. Substitute the given values and solve for MeM_e.

    20=4×Me20 = 4 \times M_e Me=204M_e = \frac{20}{4} Me=5M_e = 5

    The magnification of the eyepiece is 5\boxed{\text{5}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QAnswer eight questions in all; five questions from Part I and three questions from Part II. PART 1…QAnswer three questions from this part. All questions carry equal marks.QAnswer any SIX questions from this paper. Each question carries 20 marks.QThis paper consists of Six questions. Answer any Five questions. Each question consists of parts (a)…QAll questions carry equal marks. Answer four questions to all All [9 marks]. [6 marks]. [11 marks]…
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

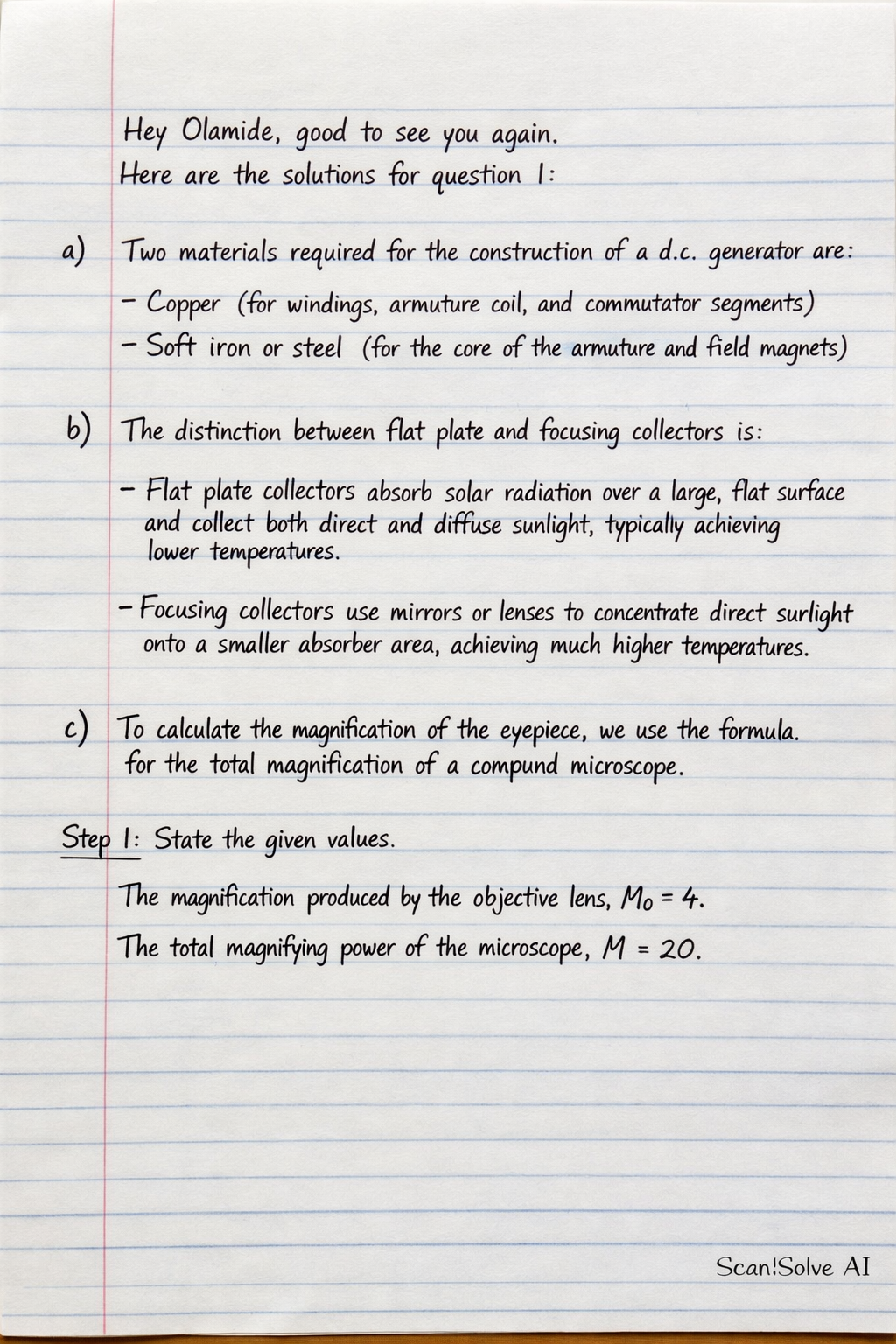

Handwritten step-by-step solution preview
