Explain the behavior of current and voltage in series and parallel circuits, including the effect of…

Question

Explain the behavior of current and voltage in series and parallel circuits, including the effect of adding/removing components and component failures.

ScanSolve AI Tutor · Accepted Answer

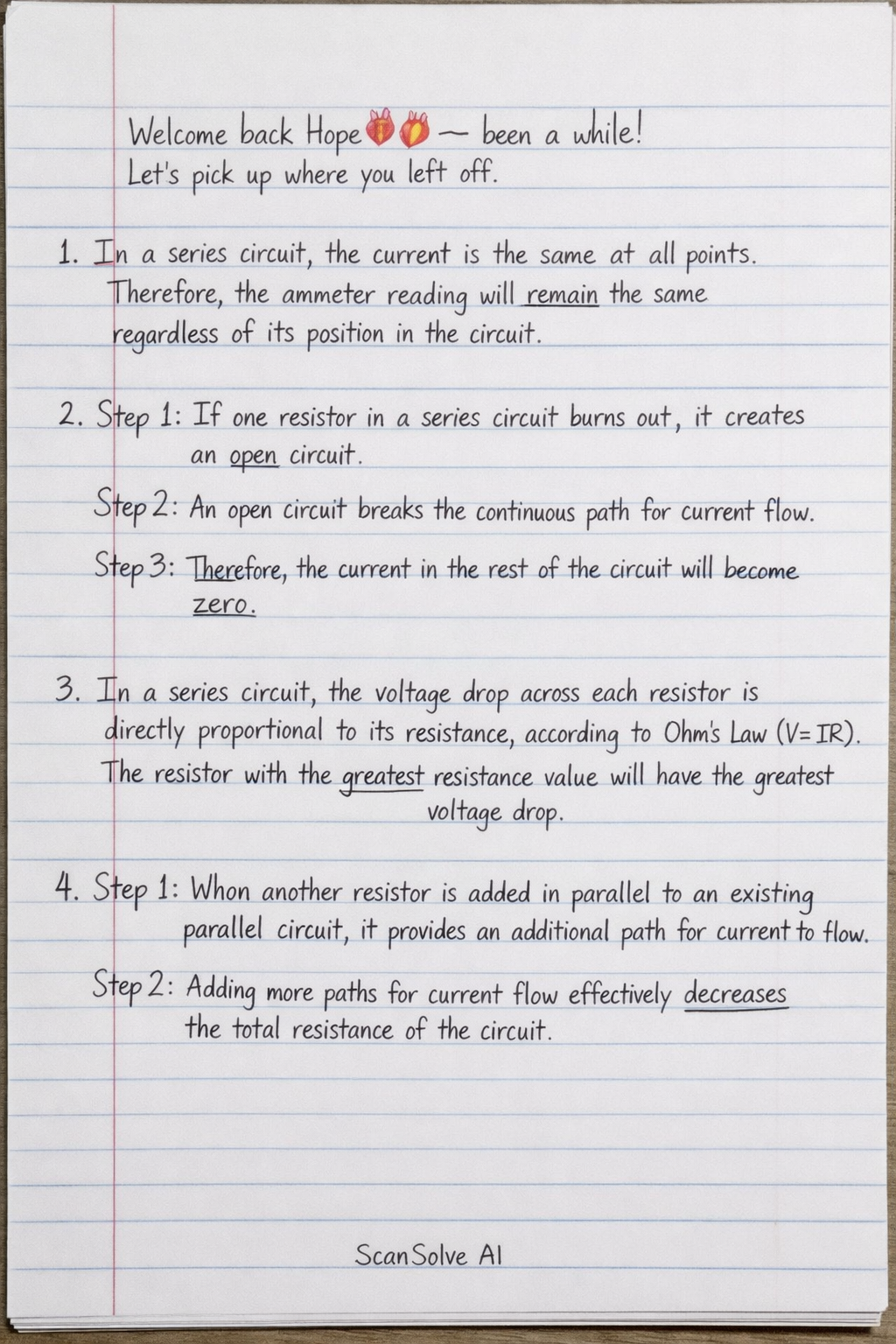

1. In a series circuit, the current is the same at all points. Therefore, the ammeter reading will remain the same regardless of its position in the circuit. 2. Step 1: If one resistor in a series circuit burns out, it creates an open circuit. Step 2: An open circuit breaks the continuous path for current flow. Step 3: Therefore, the current in the rest of the circuit will become zero. 3. In a series circuit, the voltage drop across each resistor is directly proportional to its resistance, according to Ohm's Law (V = IR). The resistor with the greatest resistance value will have the greatest voltage drop. 4. Step 1: When another resistor is added in parallel to an existing parallel circuit, it provides an additional path for current to flow. Step 2: Adding more paths for current flow effectively decreases the total resistance of the circuit. 5. Step 1: In a parallel circuit, each branch operates independently, and the total current is the sum of the currents in each branch. Step 2: If one resistor is removed from a parallel circuit, that specific branch is eliminated, but the other branches continue to draw current. Step 3: The total current (ammeter reading) will decrease because there is one less path for current to flow, but the current through the remaining resistors will not change. 6. The conclusion for experiment 1 (Series Circuit) is that the current is the same at all points in a series circuit, and the total voltage is the sum of the individual voltage drops across each resistor. 7. The conclusion for experiment 2 (Parallel Circuit) is that the voltage across each branch is the same in a parallel circuit, and the total current is the sum of the currents flowing through each parallel branch.

Explain the behavior of current and voltage in series and parallel circuits, including the effect of adding/removing components and component failures.

Step-by-step solution

An open circuit breaks the continuous path for current flow.

Therefore, the current in the rest of the circuit will become zero.

Adding more paths for current flow effectively decreases the total resistance of the circuit.

If one resistor is removed from a parallel circuit, that specific branch is eliminated, but the other branches continue to draw current.

The total current (ammeter reading) will decrease because there is one less path for current to flow, but the current through the remaining resistors will not change.
