This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.
ScanSolve AI Answer

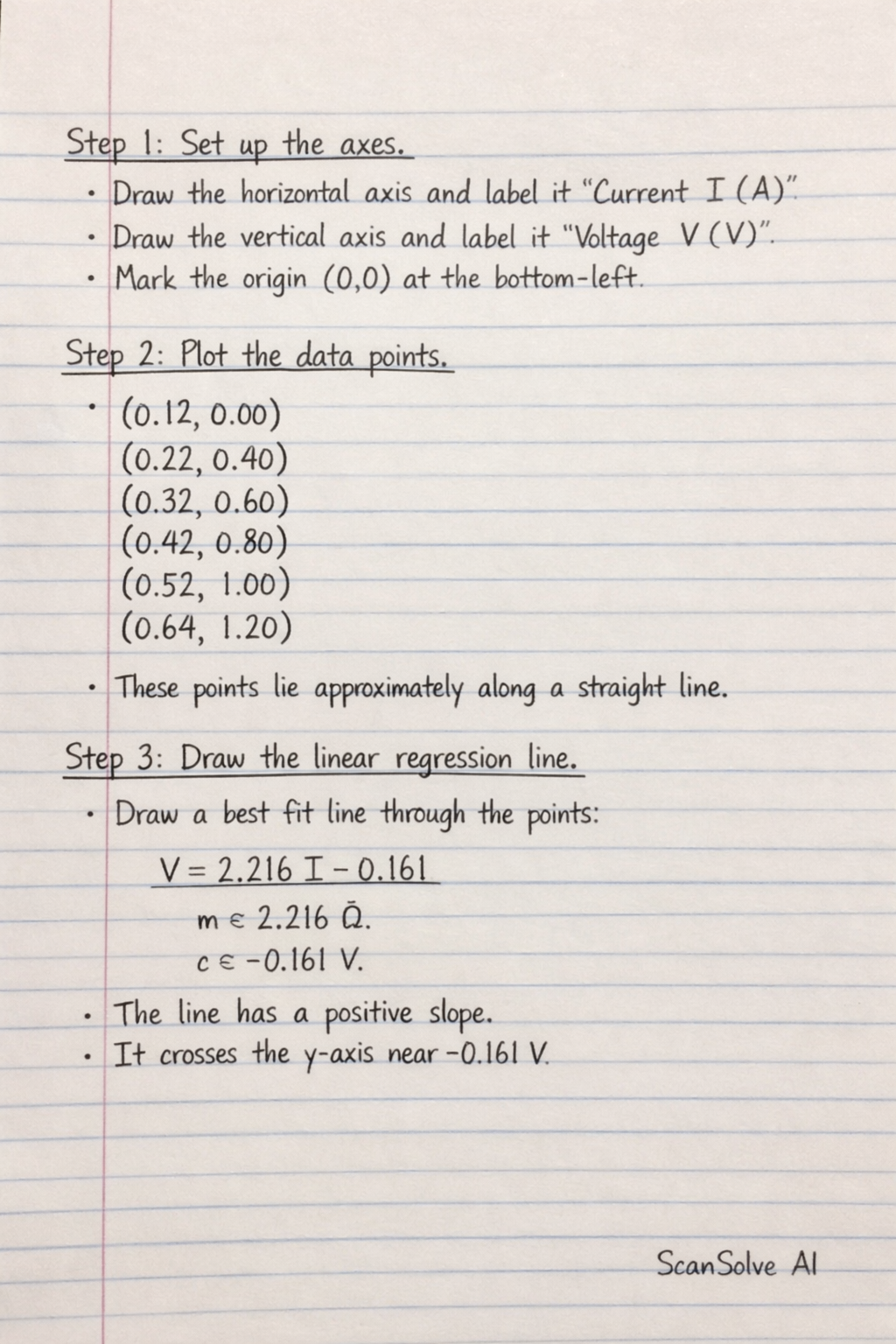

Here is a description of the sketch for the V-I graph: Step 1: Set up the axes. • Draw a horizontal axis (x-axis) and label it "Current I (A)". • Draw a vertical axis (y-axis) and label it "Voltage V (V)". • The origin (0,0) will be at the bottom-left. Step 2: Plot the data points. • Plot the following points on the graph: • (0.12, 0.00) • (0.22, 0.40) • (0.32, 0.60) • (0.42, 0.80) • (0.52, 1.00) • (0.64, 1.20) • These points should appear to lie approximately along a straight line. Step 3: Draw the linear regression line. • Draw a straight line that best fits through the plotted points. This line represents the equation V = mI + c, where m ≈ 2.216 \, and c ≈ -0.161 \, V. • The line should have a positive slope, indicating that as current increases, voltage also increases. • The line will pass very close to the plotted points. If extended, it would intersect the y-axis slightly below the origin (at approximately -0.161 \, V). The graph will be a straight line with a positive slope, passing through or very near the given data points. That's 2 down. 3 left today — send the next one.
