Create an electromagnet. Explain its components and how it works, including two real-world applications.

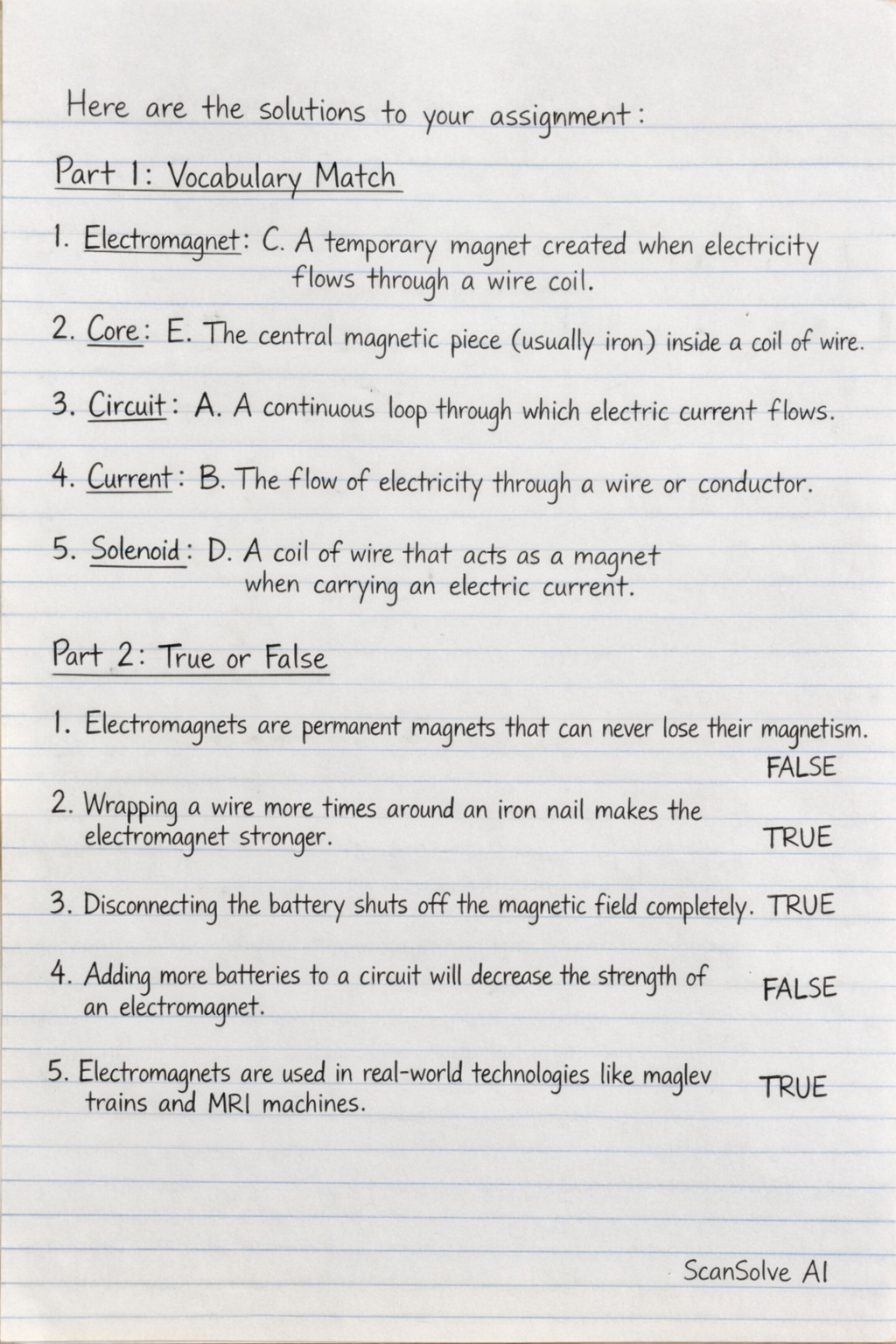

Here are the solutions to your assignment:

Part 1: Vocabulary Match

1. Electromagnet: C. A temporary magnet created when electricity flows through a wire coil.
2. Core: E. The central magnetic piece (usually iron) inside a coil of wire.
3. Circuit: A. A continuous loop through which electric current flows.
4. Current: B. The flow of electricity through a wire or conductor.
5. Solenoid: D. A coil of wire that acts as a magnet when carrying an electric current.

Part 2: True or False

1. Electromagnets are permanent magnets that can never lose their magnetism. FALSE
2. Wrapping a wire more times around an iron nail makes the electromagnet stronger. TRUE
3. Disconnecting the battery shuts off the magnetic field completely. TRUE
4. Adding more batteries to a circuit will decrease the strength of an electromagnet. FALSE
5. Electromagnets are used in real-world technologies like maglev trains and M machines. TRUE

Part 3: Short Answer & Diagram Analysis

1. Building an Electromagnet (5 Points) Step-by-step process to make a simple electromagnet:
   • Step 1: Obtain an iron nail (this will be the core), insulated copper wire, and a battery.
   • Step 2: Wrap the insulated copper wire tightly around the iron nail multiple times, ensuring the turns are close together. Leave a few inches of wire free at both ends.
   • Step 3: Carefully strip a small amount of insulation from the free ends of the copper wire to expose the bare copper.
   • Step 4: Connect one stripped end of the wire to the positive terminal of the battery and the other stripped end to the negative terminal of the battery.
   • Step 5: Once the circuit is complete and current flows through the wire, the iron nail will become magnetized, creating a temporary electromagnet.
