Draw one peint lamp circuit from circuit breaker

August 24, 2026Physics

ScanSolve AI Answer

August 24, 2026

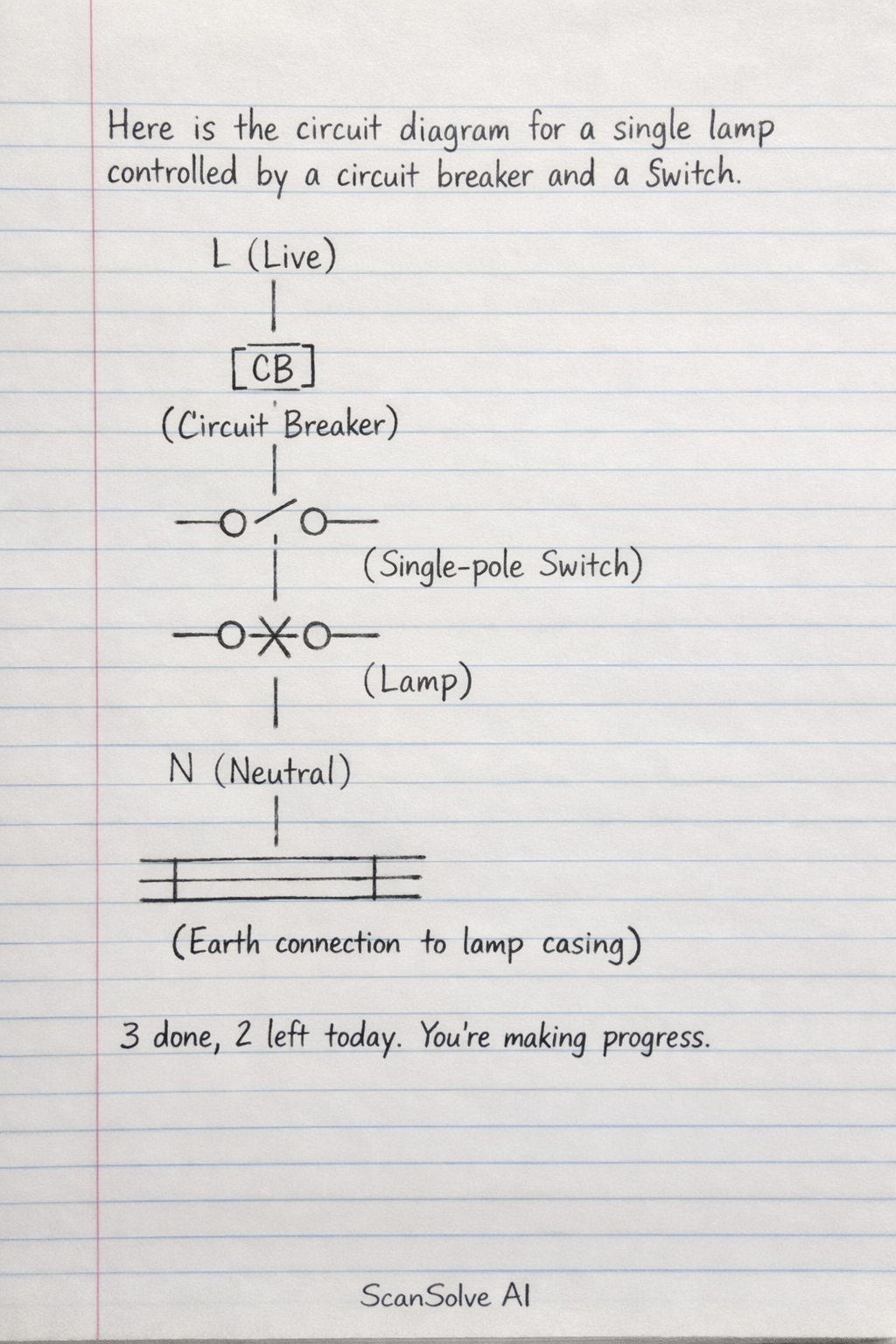

Here is the circuit diagram for a single lamp controlled by a circuit breaker and a switch.

\begin{array}{c} L (Live) \\ | \\ | \\ ---[CB]--- \\ (Circuit Breaker) \\ | \\ | \\ ---\circ/\circ--- \\ (Single-pole Switch) \\ | \\ | \\ ---\circ\texttimes\circ--- \\ (Lamp) \\ | \\ | \\ ---N (Neutral) \\ \\ ---\textbar\textbar\textbar--- \\ (Earth connection to lamp casing) \end{array}
