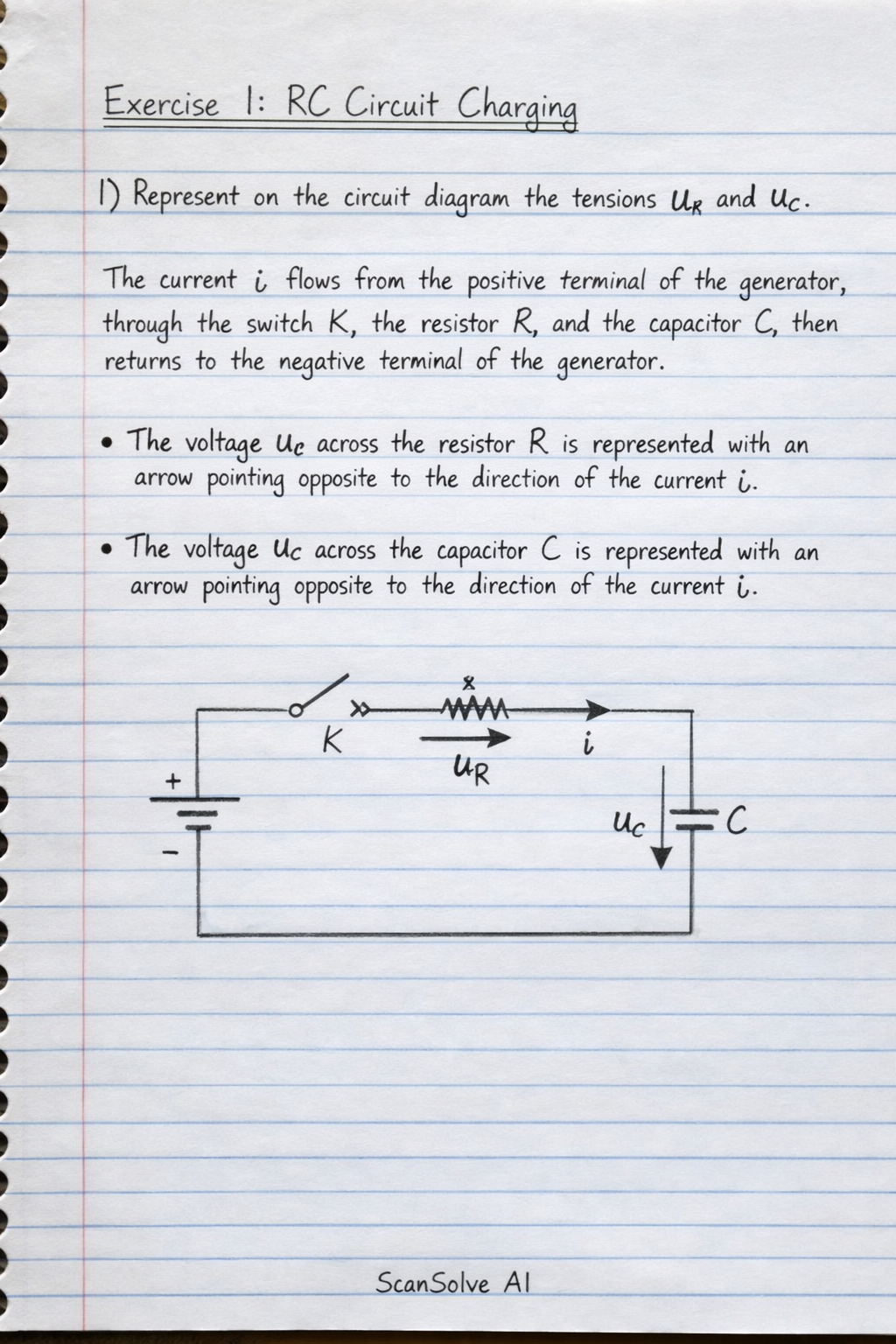

Exercise 1: RC Circuit Charging
1) Represent on the circuit diagram the tensions $u_R$ and $u_C$.
The current $i$ flows from the positive terminal of the generator, through the switch K, the resistor R, and the capacitor C, then back to the negative terminal of the generator.
The voltage $u_R$ across the resistor R is represented with an arrow pointing opposite to the direction of the current $i$.
The voltage $u_C$ across the capacitor C is represented with an arrow pointing opposite to the direction of the current $i$.
$$
\begin{center}
\begin{tikzpicture}[scale=0.8]
\draw (0,0) to[battery
