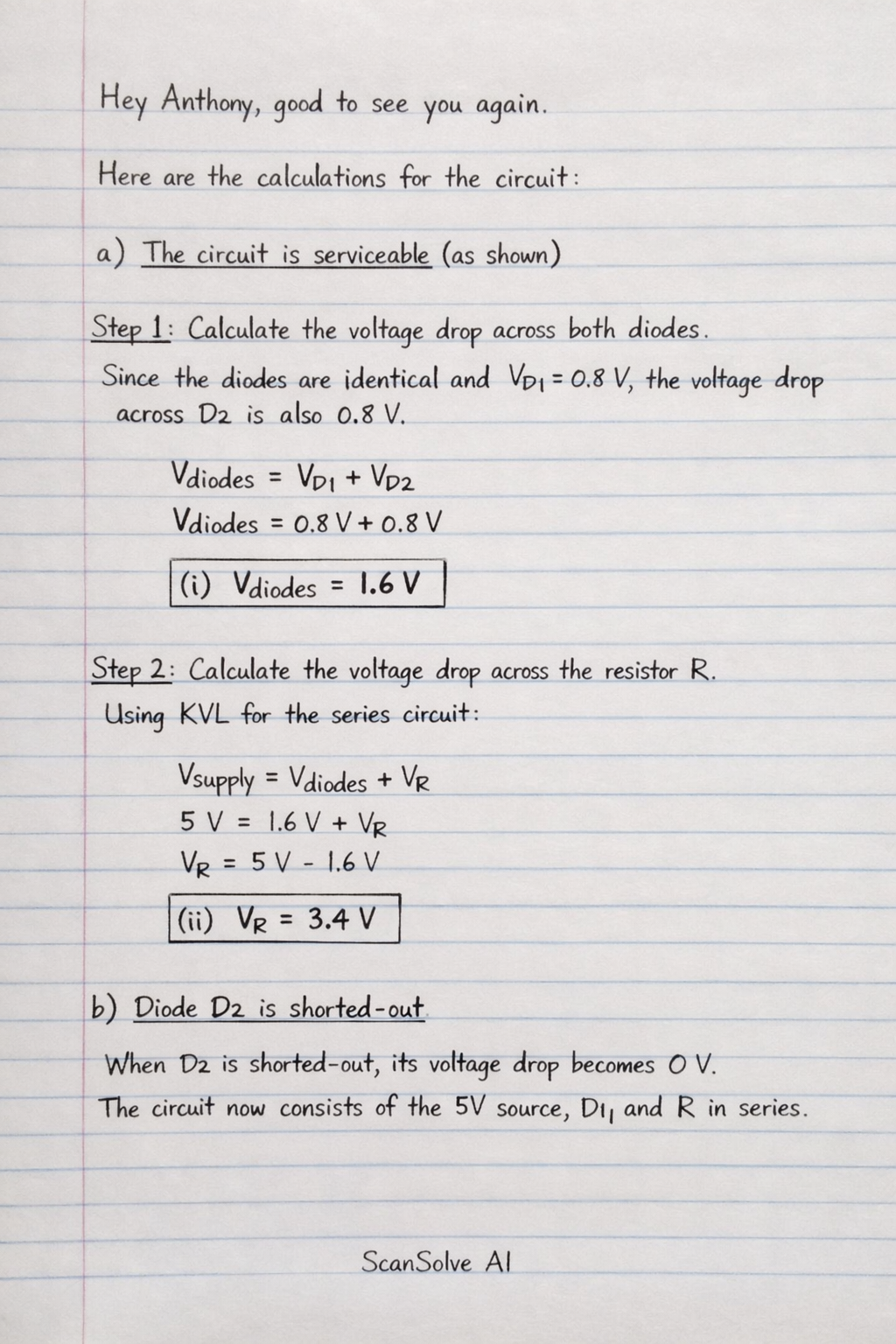

Here are the calculations for the circuit: a) The circuit is serviceable (as shown) Step 1: Calculate the voltage drop across both diodes. Since the diodes are identical and V_D1 = 0.8 \, V, the voltage drop across D2 is also 0.8 \, V. V_diodes = V_D1 + V_D2 V_diodes = 0.8 \, V + 0.8 \, V (i) V_diodes = 1.6 V Step 2: Calculate the voltage drop across the resistor R. Using Kirchhoff's Voltage Law (KVL) for the series circuit: V_supply = V_diodes + V_R 5 \, V = 1.6 \, V + V_R V_R = 5 \, V - 1.6 \, V (ii) V_R = 3.4 V b) Diode D2 is shorted-out When D2 is shorted-out, its voltage drop becomes 0 \, V. The circuit now consists of the 5V source, D1, and R in series. Step 3: Calculate the voltage drop across resistor R. Using KVL for the new series circuit: V_supply = V_D1 + V_D2 + V_R 5 \, V = 0.8 \, V + 0 \, V + V_R V_R = 5 \, V - 0.8 \, V (iii) V_R = 4.2 V Step 4: Calculate the current through the resistor R. Using Ohm's Law: I_R = (V_R)/(R) I_R = 4.2 \, V1000 \, I_R = 0.0042 \, A (i) I_R = 4.2 mA (iv) I_R = 4.2 mA Step 5: State the voltage drop across diode D1. The voltage drop across D1 remains the same as it is still forward-biased. (ii) V_D1 = 0.8 V Drop the next question! ⚡
