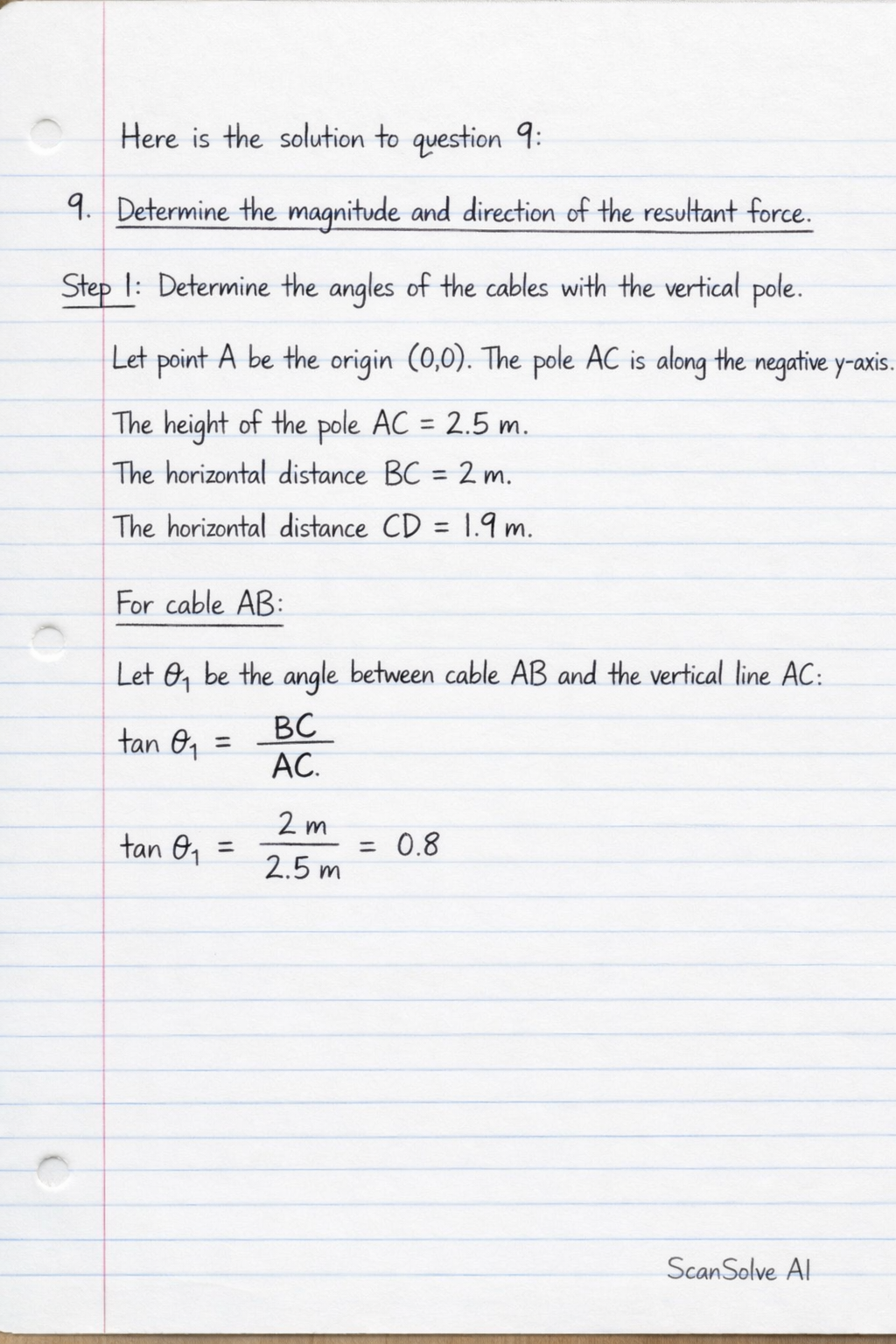

Here is the solution to question 9: 9. Determine the magnitude and direction of the resultant force. Step 1: Determine the angles of the cables with the vertical pole. Let point A be the origin (0,0). The pole AC is along the negative y-axis. The height of the pole AC = 2.5 \, m. The horizontal distance BC = 2 \, m. The horizontal distance CD = 1.9 \, m. For cable AB: Let _1 be the angle between cable AB and the vertical line AC. _1 = (BC)/(AC) = (2 \, m)/(2.5 \, m) = 0.8
