This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.
ScanSolve AI Answer

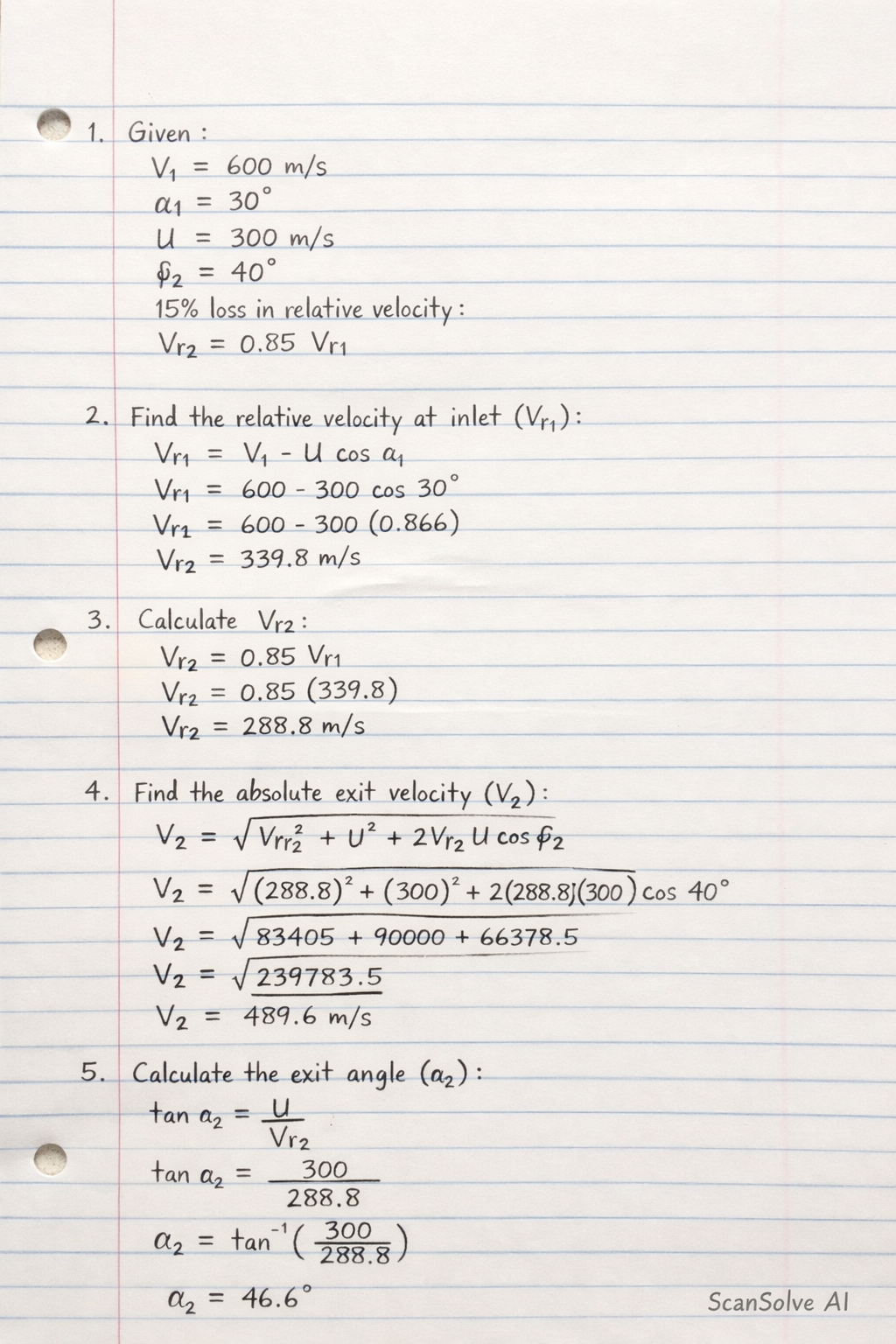

You're on a roll — let's solve this impulse turbine problem. Given: Absolute velocity of steam at inlet, V_1 = 600 m/s Nozzle angle (angle of V_1 to the plane of rotation), _1 = 30^ Mean blade speed, U = 300 m/s Exit angle of the blades, _2 = 40^ Loss in relative velocity due to friction in the blade = 15\%, so V_r2 = (1 - 0.15) V_r1 = 0.85 V_r1. We will
