Q5: Through which resistor is there always a current flowing, regardless of the position of the switches?

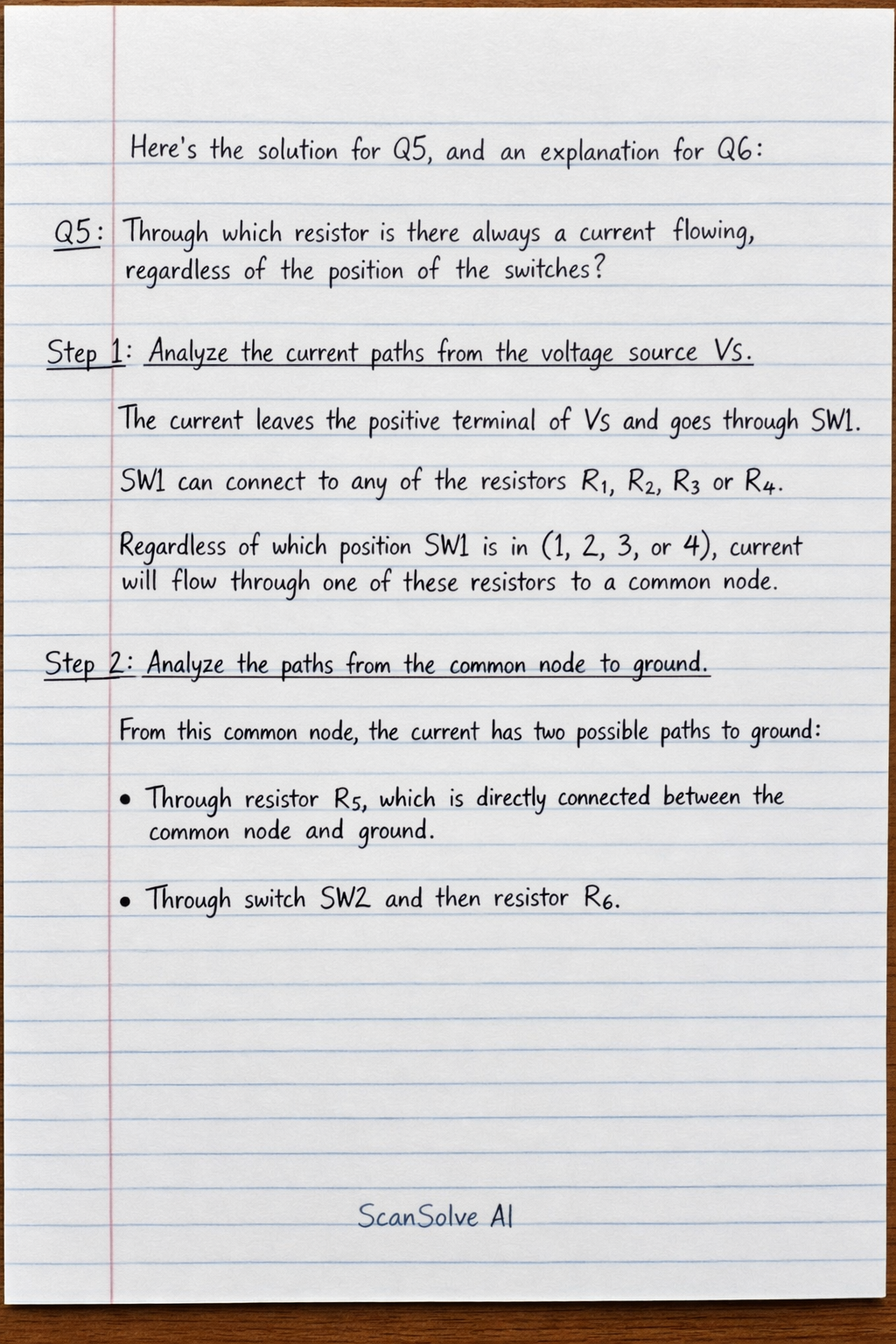

Here's the solution for Q5, and an explanation for Q6: Q5: Through which resistor is there always a current flowing, regardless of the position of the switches? Step 1: Analyze the current paths from the voltage source V_S. The current leaves the positive terminal of V_S and goes through switch SW1. Switch SW1 can connect to any of the resistors R_1, R_2, R_3, or R_4. Regardless of which position SW1 is in (1, 2, 3, or 4), current will flow through one of these resistors to a common node. Step 2: Analyze the paths from the common node to ground. From this common node, the current has two possible paths to ground: • Through resistor R_5, which is directly connected between the common node and ground. • Through switch SW2 and then resistor R_6. Step 3: Determine which resistor always has current. Since SW1 must always be in one of its four positions, there will always be a voltage at the common node. Resistor R_5 is directly connected between this common node and ground, forming a complete circuit path. Therefore, current will always flow through R_5. Current will only flow through R_6 if switch SW2 is closed. If SW2 is open, no current flows through R_6. The resistor through which there is always a current flowing, regardless of the position of the switches, is R_5. Q6: Determine the total resistance voltage at points A, B, and C in the circuit and the current through R4. To solve this question, the following information is needed but not provided in the image: • The numerical values for the voltage source V_S and all resistors (R_1, R_2, R_3, R_4, R_5, R_6). • The specific locations of points A, B, and C in the circuit diagram. • The positions of switches SW1 and SW2 (e.g., which resistor SW1 is connected to, and whether SW2 is open or closed). Without this essential information, it is not possible to calculate the total resistance, voltages at points A, B, C, or the current through R_4. Last free one today — make it count tomorrow, or type /upgrade for unlimited.
