We read your photo as:

Calculate the speed of the 1.5 kg trolley at point P using the principle of conservation of mechanical energy.

Physics

ScanSolve AI Answer

Step-by-step solution

4 steps
  1. Calculate the speed of the 1.5 kg trolley at point P using the principle of conservation of mechanical energy.

    Given:
    Mass of trolley 1, m1=1.5m_1 = 1.5 kg
    Initial height at A, hA=2.0h_A = 2.0 m
    Initial velocity at A, vA=0v_A = 0 m/s (held stationary)
    Height at P, hP=0h_P = 0 m (bottom of the incline)
    Acceleration due to gravity, g=9.8g = 9.8 m/s2^2

    According to the principle of conservation of mechanical energy:

    PEA+KEA=PEP+KEPPE_A + KE_A = PE_P + KE_P m1ghA+12m1vA2=m1ghP+12m1vP2m_1 g h_A + \frac{1}{2} m_1 v_A^2 = m_1 g h_P + \frac{1}{2} m_1 v_P^2

    Substitute the known values:

    (1.5 kg)(9.8 m/s2)(2.0 m)+12(1.5 kg)(0 m/s)2=(1.5 kg)(9.8 m/s2)(0 m)+12(1.5 kg)vP2(1.5 \text{ kg})(9.8 \text{ m/s}^2)(2.0 \text{ m}) + \frac{1}{2} (1.5 \text{ kg})(0 \text{ m/s})^2 = (1.5 \text{ kg})(9.8 \text{ m/s}^2)(0 \text{ m}) + \frac{1}{2} (1.5 \text{ kg}) v_P^2 29.4 J+0=0+0.75vP229.4 \text{ J} + 0 = 0 + 0.75 v_P^2 29.4=0.75vP229.4 = 0.75 v_P^2 vP2=29.40.75v_P^2 = \frac{29.4}{0.75} vP2=39.2v_P^2 = 39.2 vP=39.2v_P = \sqrt{39.2} vP≈6.26 m/sv_P \approx 6.26 \text{ m/s}

    The speed of the 1.5 kg trolley at point P is 6.26 m/s\boxed{\text{6.26 m/s}}.

  2. Rewrite the complete statement for the principle of conservation of linear momentum.

    In an isolated system, the total linear momentum is conserved.

  3. Calculate the speed of the combined trolleys immediately after the collision.

    This is an inelastic collision where the trolleys stick together.
    Given:
    Mass of trolley 1, m1=1.5m_1 = 1.5 kg
    Velocity of trolley 1 before collision, v1i=vP=6.26v_{1i} = v_P = 6.26 m/s (from Step 1)
    Mass of trolley 2, m2=2m_2 = 2 kg
    Velocity of trolley 2 before collision, v2i=0v_{2i} = 0 m/s (stationary)
    Combined mass after collision, M=m1+m2=1.5 kg+2 kg=3.5M = m_1 + m_2 = 1.5 \text{ kg} + 2 \text{ kg} = 3.5 kg
    Let vfv_f be the final velocity of the combined trolleys.

    According to the principle of conservation of linear momentum:

    m1v1i+m2v2i=(m1+m2)vfm_1 v_{1i} + m_2 v_{2i} = (m_1 + m_2) v_f

    Substitute the known values:

    (1.5 kg)(6.26 m/s)+(2 kg)(0 m/s)=(1.5 kg+2 kg)vf(1.5 \text{ kg})(6.26 \text{ m/s}) + (2 \text{ kg})(0 \text{ m/s}) = (1.5 \text{ kg} + 2 \text{ kg}) v_f 9.39 kg⋅m/s+0=(3.5 kg)vf9.39 \text{ kg}\cdot\text{m/s} + 0 = (3.5 \text{ kg}) v_f 9.39=3.5vf9.39 = 3.5 v_f vf=9.393.5v_f = \frac{9.39}{3.5} vf≈2.68 m/sv_f \approx 2.68 \text{ m/s}

    The speed of the combined trolleys immediately after the collision is 2.68 m/s\boxed{\text{2.68 m/s}}.

  4. Calculate the distance travelled by the combined trolleys in 3 s after the collision.

    After the collision, the combined trolleys move with constant velocity.
    Given:
    Velocity of combined trolleys, vf=2.68v_f = 2.68 m/s (from Step 3)
    Time, t=3t = 3 s

    Distance travelled, d=vf×td = v_f \times t

    d=(2.68 m/s)(3 s)d = (2.68 \text{ m/s})(3 \text{ s}) d=8.04 md = 8.04 \text{ m}

    The distance travelled by the combined trolleys in 3 s after the collision is 8.04 m\boxed{\text{8.04 m}}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

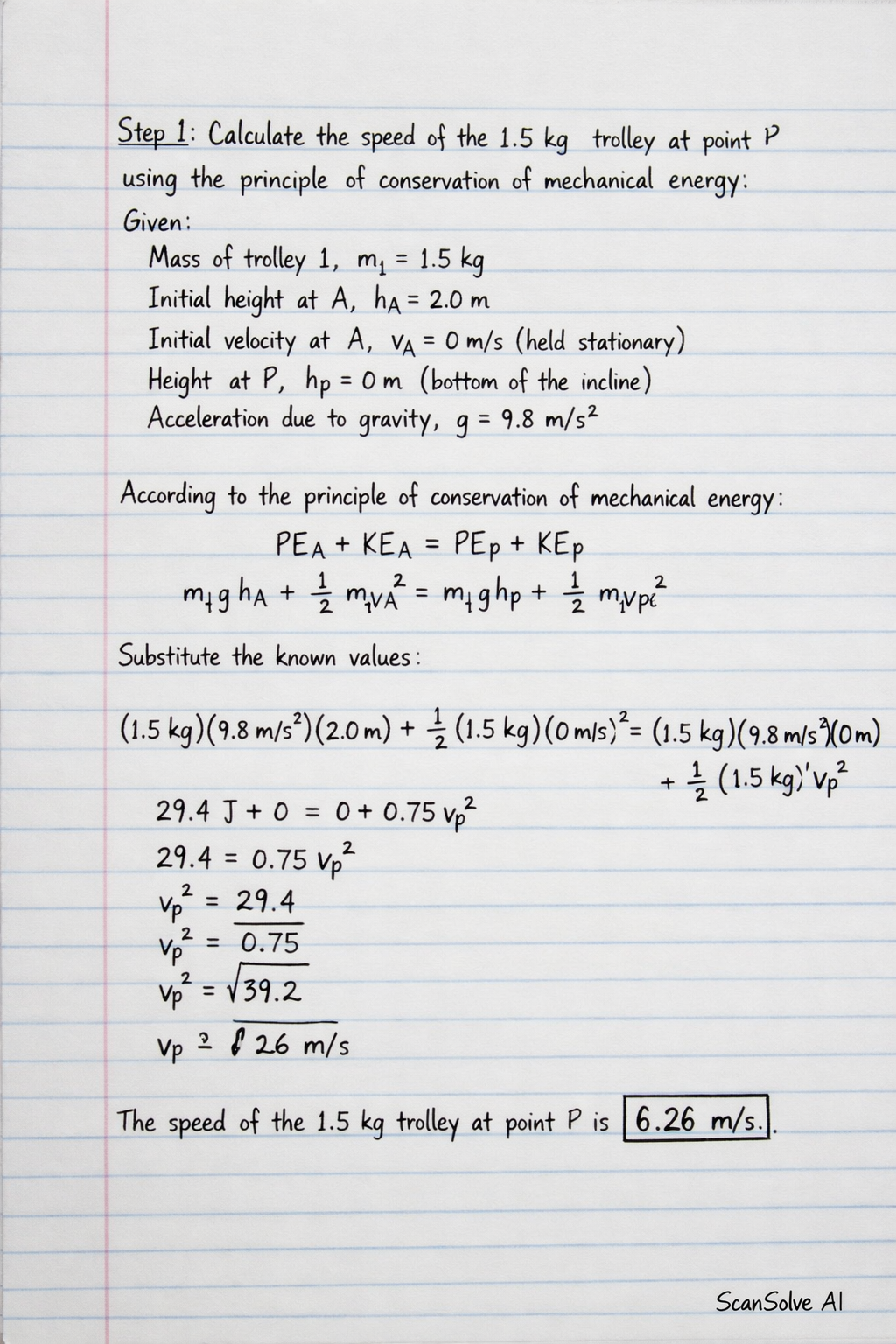

Handwritten step-by-step solution preview
