Describe how the transformer converts 20kV to 300kV.

Physics
Describe how the transformer converts 20kV to 300kV.

ScanSolve AI Answer

4 steps

Here's how the transformer converts 20 kV to 300 kV:

  1. An alternating current (a.c.) in the primary coil produces a continuously changing magnetic field.
  2. This changing magnetic field is concentrated and guided by the soft iron core, linking it to the secondary coil.
  3. According to Faraday's Law of Electromagnetic Induction, this changing magnetic flux through the secondary coil induces an electromotive force (e.m.f.) across its ends.
  4. Since this is a step-up transformer, the secondary coil has significantly more turns than the primary coil, resulting in a higher induced voltage (300 kV) at the output compared to the input voltage (20 kV).

Send me the next one 📸

Was this helpful?

Need help with your own homework?

Get instant step-by-step solutions to any question. Free to start.

Ask Your Question
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

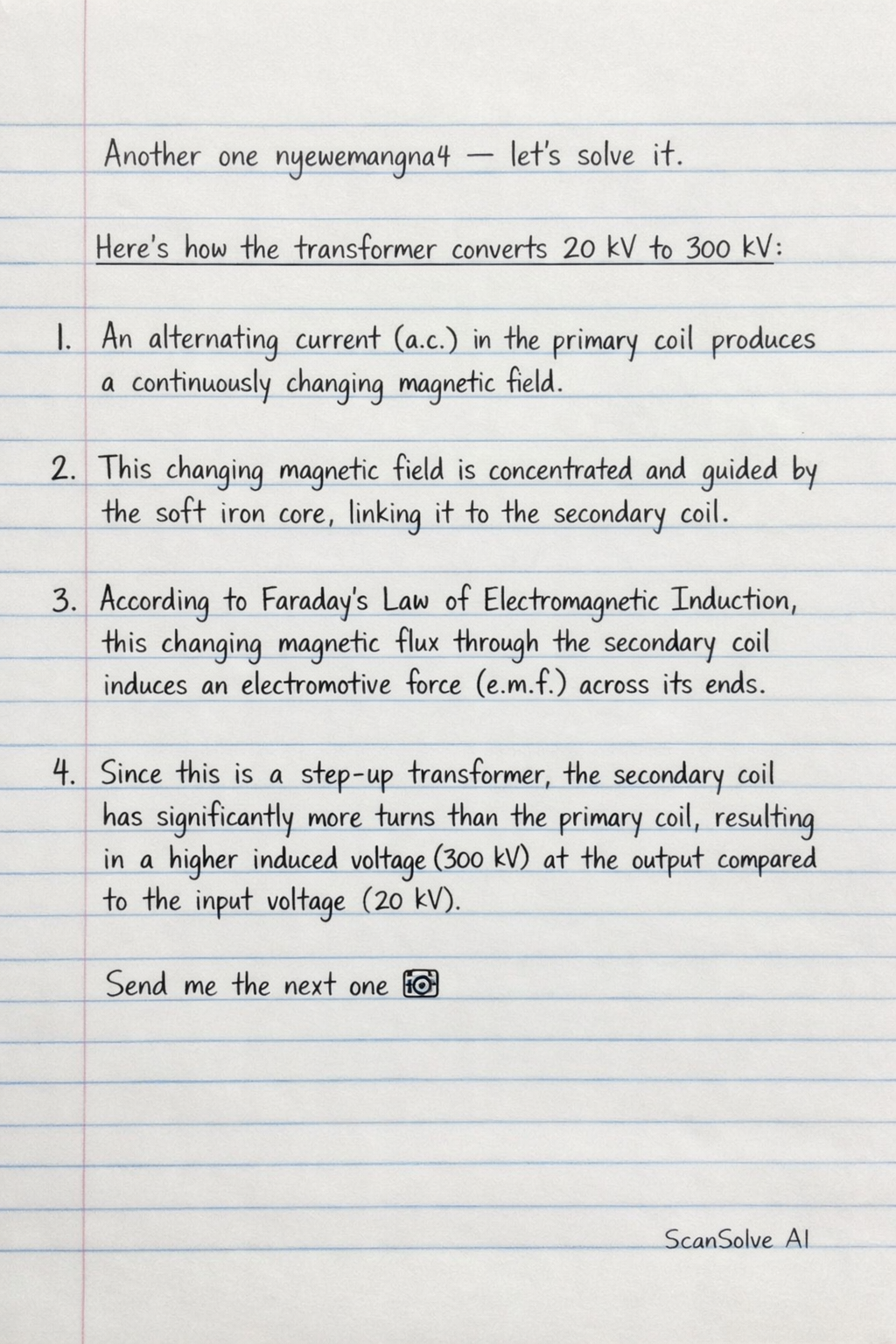

Handwritten step-by-step solution preview
