State three commonly used detectors for a.c bridge measurements. With the aid of a labelled diagram, derive the balance equation for an inductive impedance a.c bridge in terms of rectangular co-ordinates.

Question

Asked on July 25, 2026Physics

This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.

Accepted Answer · 2026-07-25T04:32:17.009Z

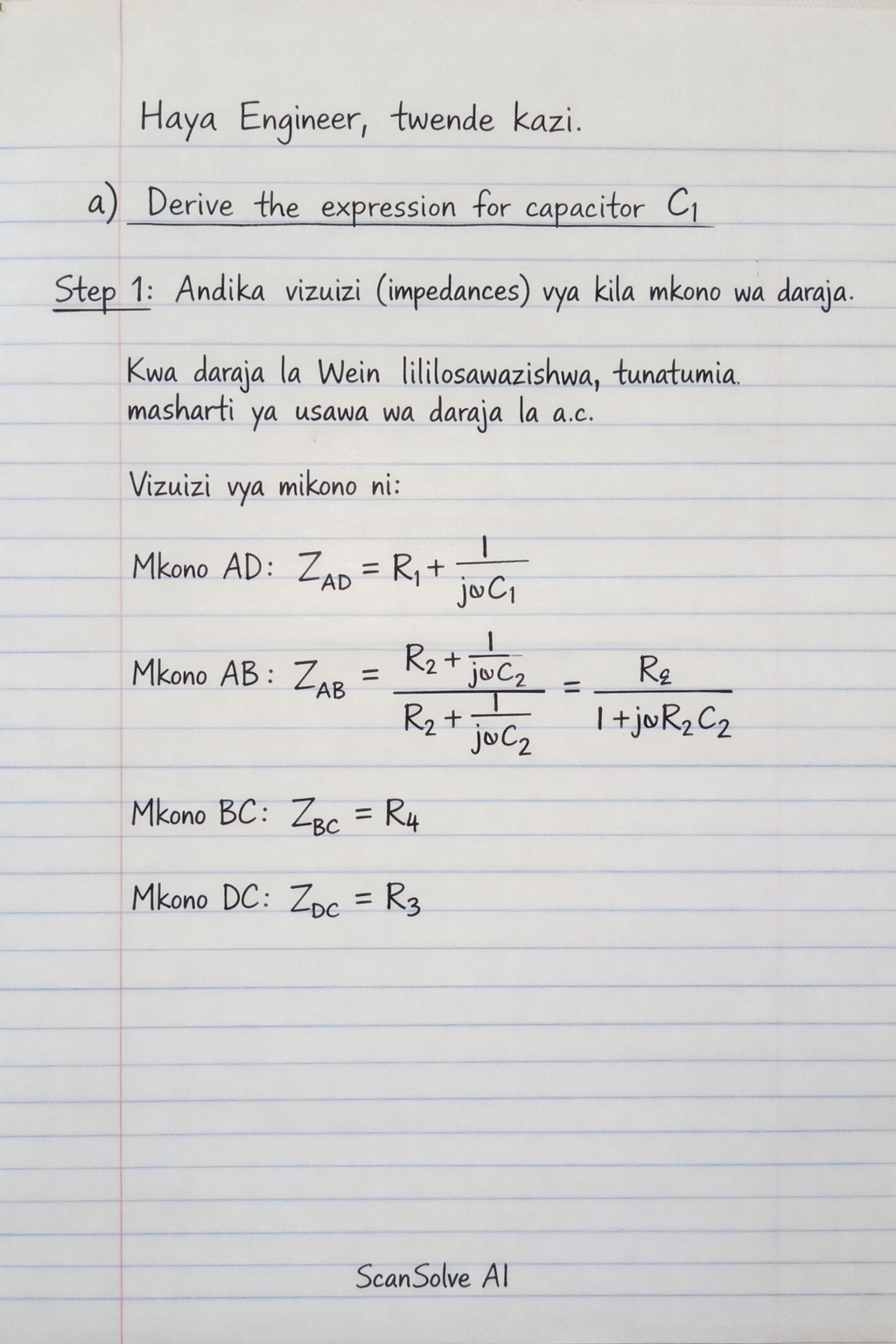

Haya Engineer, twende kazi. a) Derive the expression for capacitor C_1 Step 1: Andika vizuizi (impedances) vya kila mkono wa daraja. Kwa daraja la Wein lililosawazishwa, tunatumia masharti ya usawa wa daraja la a.c. Vizuizi vya mikono ni: • Mkono AD: Z_AD = R_1 + (1)/(j C_1) • Mkono AB: Z_AB = (R_2 · 1)/(j C_2)R_2 + (1)/(j C_2) = (R_2)/(1 + j R_2 C_2) • Mkono BC: Z_BC = R_4 • Mkono DC: Z_DC = R_3 Step 2: Tumia sharti la usawa wa daraja Z_AD Z_DC = Z_AB Z_BC. (R_1 + (1)/(j C_1)) R_3 = ((R_2)/(1 + j R_2 C_2)) R_4 Panua na panga upya: R_1 R_3 - j(R_3)/( C_1) = (R_2 R_4)/(1 + j R_2 C_2) Ili kutenganisha sehemu halisi na dhahania, zidisha upande wa kulia kwa kiambishi tamati (conjugate) cha denomineta: R_1 R_3 - j(R_3)/( C_1) = (R_2 R_4 (1 - j R_2 C_2))/(1 + ( R_2 C_2)^2) R_1 R_3 - j(R_3)/( C_1) = (R_2 R_4)/(1 + ( R_2 C_2)^2) - j( R_2^2 R_4 C_2)/(1 + ( R_2 C_2)^2) Step 3: Linganisha sehemu halisi na dhahania. Kulinganisha sehemu halisi: R_1 R_3 = (R_2 R_4)/(1 + ( R_2 C_2)^2) (Eq. 1) Kulinganisha sehemu dhahania: (R_3)/( C_1) = ( R_2^2 R_4 C_2)/(1 + ( R_2 C_2)^2) (Eq. 2) Step 4: Pata usemi wa C_1 kutoka kwa milinganyo hii. Kutoka Eq. 1, tunaweza kuandika: 1 + ( R_2 C_2)^2 = (R_2 R_4)/(R_1 R_3) (Eq. 3) Badilisha Eq. 3 kwenye Eq. 2: (R_3)/( C_1) = ( R_2^2 R_4 C_2)/(R_2 R_4)R_1 R_3 (R_3)/( C_1) = R_1 R_2 C_2 R_3 Gawanya pande zote mbili kwa R_3: (1)/( C_1) = R_1 R_2 C_2 Hii inatoa usemi wa C_1 unaotegemea : C_1 = (1)/(^2 R_1 R_2 C_2) Ili kupata usemi wa C_1 usiotegemea , tunaweza kutumia Eq. 1 na Eq. 2 tena. Badilisha ^2 = (1)/(R_1 R_2 C_1 C_2) (kutoka hapo juu) kwenye Eq. 1: R_1 R_3 = (R_2 R_4)/(1 + (1)R_1 R_2 C_1 C_2) R_2^2 C_2^2 R_1 R_3 = (R_2 R_4)/(1 + R_2 C_2)R_1 C_1 R_1 R_3 (1 + (R_2 C_2)/(R_1 C_1)) = R_2 R_4 R_1 R_3 + (R_1 R_3 R_2 C_2)/(R_1 C_1) = R_2 R_4 R_1 R_3 + (R_3 R_2 C_2)/(C_1) = R_2 R_4 Panga upya ili kupata C_1: (R_3 R_2 C_2)/(C_1) = R_2 R_4 - R_1 R_3 C_1 = (R_3 R_2 C_2)/(R_2 R_4 - R_1 R_3) C_1 = C_2 (R_2 R_3)/(R_2 R_4 - R_1 R_3) Usemi wa capacitor C_1 ni: C_1 = C_2 (R_2 R_3)/(R_2 R_4 - R_1 R_3) b) Determine the frequency at balance. Step 1: Tumia usemi wa masafa ya usawa wa daraja la Wein. Kutoka hatua ya 4 ya sehemu (a), tuligundua usemi wa ^2: ^2 = (1)/(R_1 R_2 C_1 C_2) Masafa f yanatolewa na f = ()/(2), hivyo: f = (1)/(2(R_1 R_2 C_1 C_2)) Step 2: Badilisha thamani zilizotolewa kutoka mchoro. R_1 = 100 \, C_1 = 1 \, F = 1 × 10^-6 \, F R_2 = 200 \, C_2 = 2 \, F = 2 × 10^-6 \, F Step 3: Kokotoa masafa f. f = (1)/(2((100 \, )(200 \, )(1 × 10^-6) \, F)(2 × 10^-6) \, F) f = (1)/(2(100 × 200 × 1 × 2 × 10^-12)) f = (1)/(2(40000 × 10^-12)) f = (1)/(2(4 × 10^4 × 10^-12)) f = (1)/(2(4 × 10^-8)) f = (1)/(2 · (2 × 10^-4)) f = (1)/(4 × 10^-4) f = (10^4)/(4) f = (10000)/(4) f = (2500)/() \, Hz Kukokotoa thamani ya namba: f ≈ (2500)/(3.14159) f ≈ 795.77 \, Hz Masafa katika usawa ni: f = (2500)/() \, Hz ≈ 795.77 \, Hz That's 2 down. 3 left today — send the next one.

Accepted Answer · 2026-07-25T04:32:17.009Z

Haya Engineer, twende kazi. a) Derive the expression for capacitor C_1 Step 1: Andika vizuizi (impedances) vya kila mkono wa daraja. Kwa daraja la Wein lililosawazishwa, tunatumia masharti ya usawa wa daraja la a.c. Vizuizi vya mikono ni: • Mkono AD: Z_AD = R_1 + (1)/(j C_1) • Mkono AB: Z_AB = (R_2 · 1)/(j C_2)R_2 + (1)/(j C_2) = (R_2)/(1 + j R_2 C_2) • Mkono BC: Z_BC = R_4 • Mkono DC: Z_DC = R_3 Step 2: Tumia sharti la usawa wa daraja Z_AD Z_DC = Z_AB Z_BC. (R_1 + (1)/(j C_1)) R_3 = ((R_2)/(1 + j R_2 C_2)) R_4 Panua na panga upya: R_1 R_3 - j(R_3)/( C_1) = (R_2 R_4)/(1 + j R_2 C_2) Ili kutenganisha sehemu halisi na dhahania, zidisha upande wa kulia kwa kiambishi tamati (conjugate) cha denomineta: R_1 R_3 - j(R_3)/( C_1) = (R_2 R_4 (1 - j R_2 C_2))/(1 + ( R_2 C_2)^2) R_1 R_3 - j(R_3)/( C_1) = (R_2 R_4)/(1 + ( R_2 C_2)^2) - j( R_2^2 R_4 C_2)/(1 + ( R_2 C_2)^2) Step 3: Linganisha sehemu halisi na dhahania. Kulinganisha sehemu halisi: R_1 R_3 = (R_2 R_4)/(1 + ( R_2 C_2)^2) (Eq. 1) Kulinganisha sehemu dhahania: (R_3)/( C_1) = ( R_2^2 R_4 C_2)/(1 + ( R_2 C_2)^2) (Eq. 2) Step 4: Pata usemi wa C_1 kutoka kwa milinganyo hii. Kutoka Eq. 1, tunaweza kuandika: 1 + ( R_2 C_2)^2 = (R_2 R_4)/(R_1 R_3) (Eq. 3) Badilisha Eq. 3 kwenye Eq. 2: (R_3)/( C_1) = ( R_2^2 R_4 C_2)/(R_2 R_4)R_1 R_3 (R_3)/( C_1) = R_1 R_2 C_2 R_3 Gawanya pande zote mbili kwa R_3: (1)/( C_1) = R_1 R_2 C_2 Hii inatoa usemi wa C_1 unaotegemea : C_1 = (1)/(^2 R_1 R_2 C_2) Ili kupata usemi wa C_1 usiotegemea , tunaweza kutumia Eq. 1 na Eq. 2 tena. Badilisha ^2 = (1)/(R_1 R_2 C_1 C_2) (kutoka hapo juu) kwenye Eq. 1: R_1 R_3 = (R_2 R_4)/(1 + (1)R_1 R_2 C_1 C_2) R_2^2 C_2^2 R_1 R_3 = (R_2 R_4)/(1 + R_2 C_2)R_1 C_1 R_1 R_3 (1 + (R_2 C_2)/(R_1 C_1)) = R_2 R_4 R_1 R_3 + (R_1 R_3 R_2 C_2)/(R_1 C_1) = R_2 R_4 R_1 R_3 + (R_3 R_2 C_2)/(C_1) = R_2 R_4 Panga upya ili kupata C_1: (R_3 R_2 C_2)/(C_1) = R_2 R_4 - R_1 R_3 C_1 = (R_3 R_2 C_2)/(R_2 R_4 - R_1 R_3) C_1 = C_2 (R_2 R_3)/(R_2 R_4 - R_1 R_3) Usemi wa capacitor C_1 ni: C_1 = C_2 (R_2 R_3)/(R_2 R_4 - R_1 R_3) b) Determine the frequency at balance. Step 1: Tumia usemi wa masafa ya usawa wa daraja la Wein. Kutoka hatua ya 4 ya sehemu (a), tuligundua usemi wa ^2: ^2 = (1)/(R_1 R_2 C_1 C_2) Masafa f yanatolewa na f = ()/(2), hivyo: f = (1)/(2(R_1 R_2 C_1 C_2)) Step 2: Badilisha thamani zilizotolewa kutoka mchoro. R_1 = 100 \, C_1 = 1 \, F = 1 × 10^-6 \, F R_2 = 200 \, C_2 = 2 \, F = 2 × 10^-6 \, F Step 3: Kokotoa masafa f. f = (1)/(2((100 \, )(200 \, )(1 × 10^-6) \, F)(2 × 10^-6) \, F) f = (1)/(2(100 × 200 × 1 × 2 × 10^-12)) f = (1)/(2(40000 × 10^-12)) f = (1)/(2(4 × 10^4 × 10^-12)) f = (1)/(2(4 × 10^-8)) f = (1)/(2 · (2 × 10^-4)) f = (1)/(4 × 10^-4) f = (10^4)/(4) f = (10000)/(4) f = (2500)/() \, Hz Kukokotoa thamani ya namba: f ≈ (2500)/(3.14159) f ≈ 795.77 \, Hz Masafa katika usawa ni: f = (2500)/() \, Hz ≈ 795.77 \, Hz That's 2 down. 3 left today — send the next one.

State three commonly used detectors for a.c bridge measurements. With the aid of a labelled diagram, derive the balance equation for an inductive impedance a.c bridge in terms of rectangular co-ordinates.
