Determine the total equivalent capacitance of a parallel circuit with three branches. Branch 1 has a 4 uF capacitor. Branch 2 has two series capacitors (5 uF and 3 uF). Branch 3 has a 2 uF capacitor.

March 31, 2026Physics

ScanSolve AI Answer

March 31, 2026

Answer

4 \mu\text{F}$.

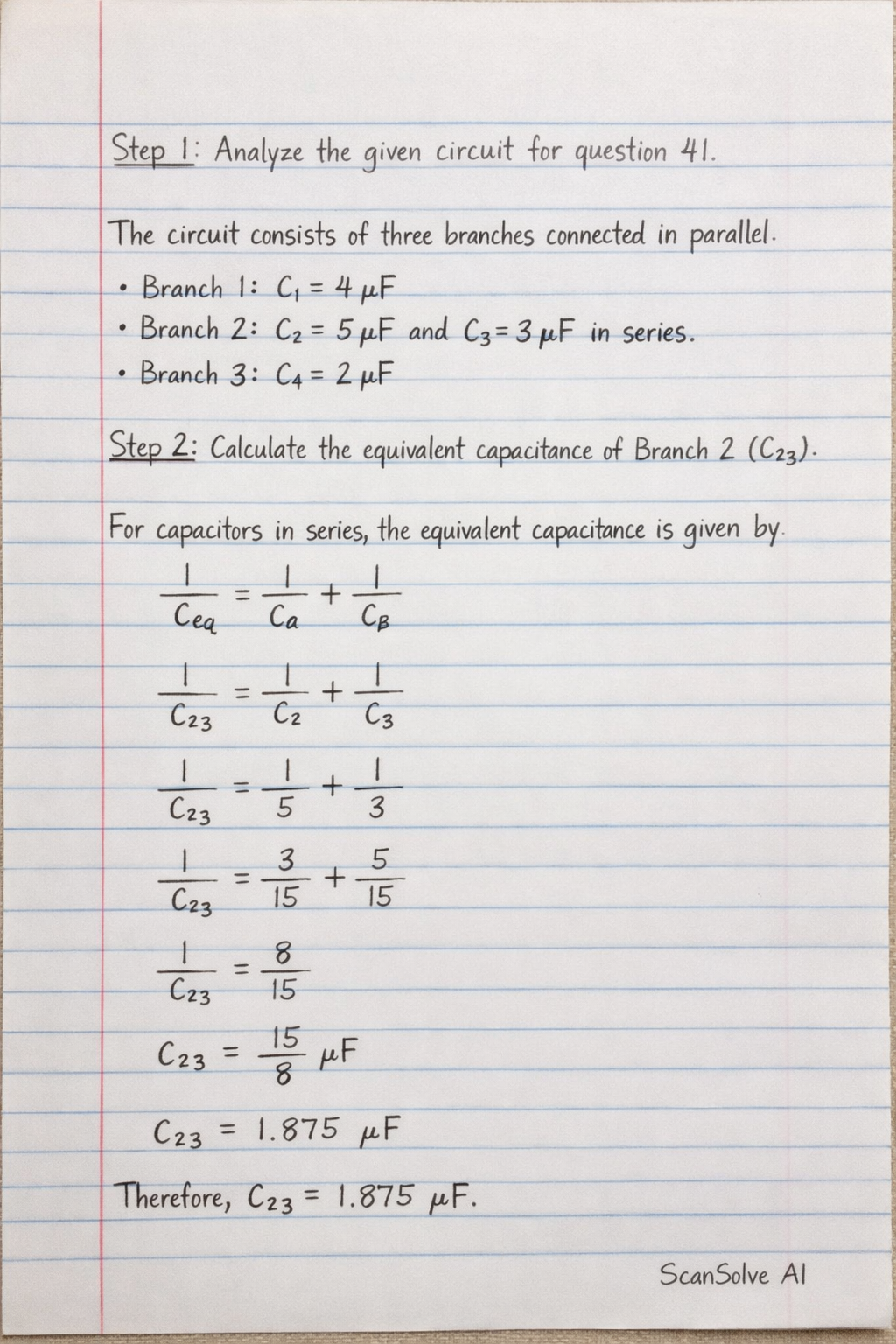

Step 1: Analyze the given circuit for question 41. The circuit consists of three branches connected in parallel. • Branch 1: A capacitor $C_1 = 4 \mu\text{F}$ . • Branch 2: Two capacitors $C_2 = 5 \mu\text{F}$ and $C_3 = 3 \mu\text{F}$ connected in series. • Branch 3: A capacitor $C_4 = 2 \mu\text{F}$ .

Step 2: Calculate the equivalent capacitance of Branch 2 ( $C_{23}$ ). For capacitors in series, the equivalent capacitance is given by $\frac{1}{C_{eq}} = \frac{1}{C_a} +
