Explain the Zeroth Law of Thermodynamics, describe the Carnot cycle using a P-V diagram, and discuss the principles of heat engines.

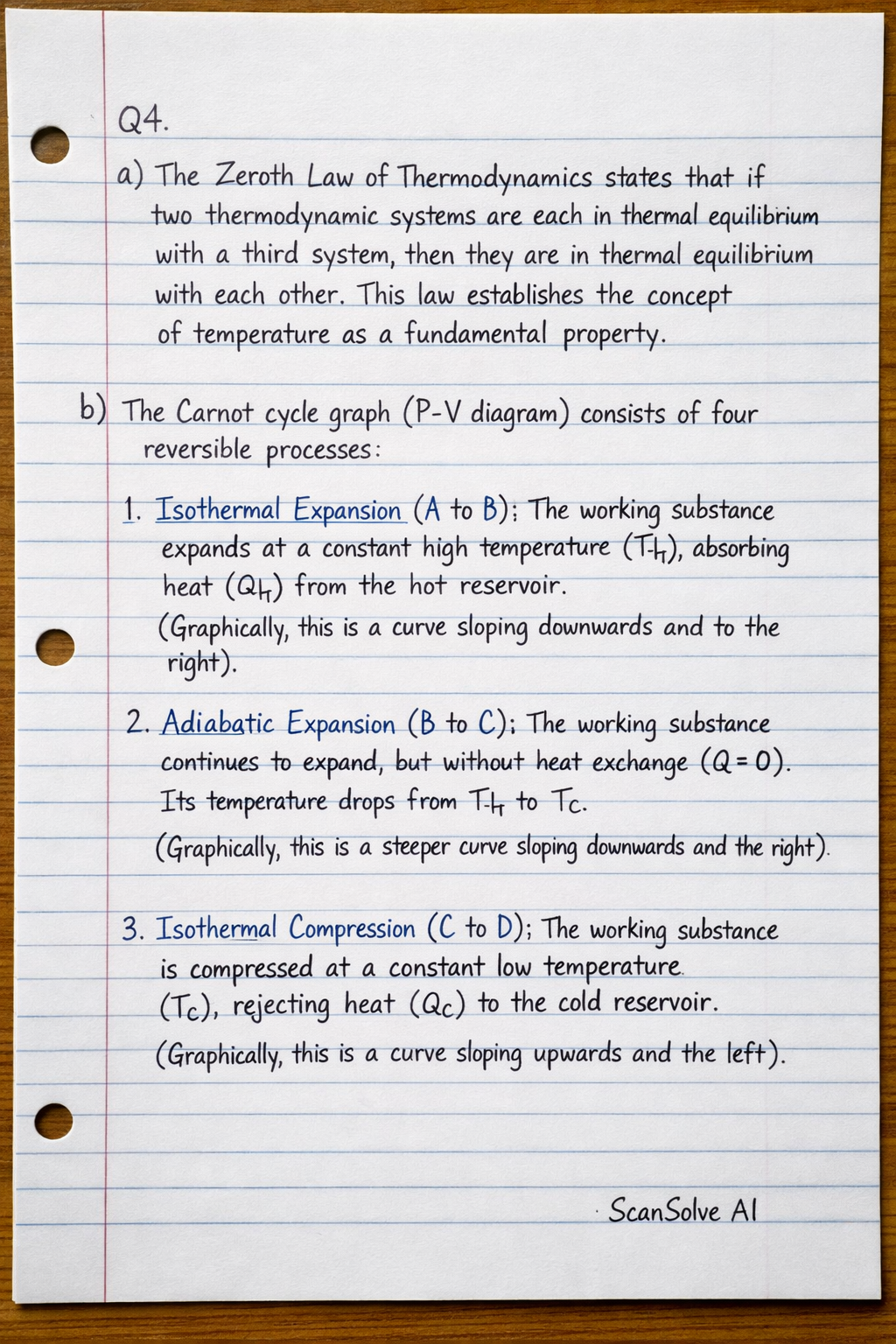

Q4. a) The Zeroth Law of Thermodynamics states that if two thermodynamic systems are each in thermal equilibrium with a third system, then they are in thermal equilibrium with each other. This law establishes the concept of temperature as a fundamental property. b) The Carnot cycle graph (P-V diagram) consists of four reversible processes: 1. Isothermal Expansion (A to B): The working substance expands at a constant high temperature (T_H), absorbing heat (Q_H) from the hot reservoir. (Graphically, this is a curve sloping downwards and to the right). 2. Adiabatic Expansion (B to C): The working substance continues to expand, but without heat exchange (Q=0). Its temperature drops from T_H to T_C. (Graphically, this is a steeper curve sloping downwards and to the right). 3. Isothermal Compression (C to D): The working substance is compressed at a constant low temperature (T_C), rejecting heat (Q_C) to the cold reservoir. (Graphically, this is a curve sloping upwards and to the left). 4. Adiabatic Compression (D to A): The working substance is further compressed without heat exchange (Q=0). Its temperature rises from T_C back to T_H. (Graphically, this is a steeper curve sloping upwards and to the left, completing the cycle). The area enclosed by the cycle represents the net work done (W) by the engine. c) The principles of heat engines are: • A heat engine operates by taking heat from a high-temperature reservoir (source). • It converts a portion of this heat into mechanical work. • It rejects the remaining heat to a low-temperature reservoir (sink). • The engine operates in a cyclic process, returning to its initial state after each cycle. Q5. a) The Fleming's Left-Hand Rule is used to determine the direction of the force on a current-carrying conductor placed in a magnetic field. • Thumb: Represents the direction of the Force (or motion) on the conductor. • Forefinger: Represents the direction of the Magnetic Field (North to South). • Middle Finger: Represents the direction of the Current (positive to negative). b) The force on a current-carrying conductor in a uniform magnetic field depends on three factors: 1. Strength of the magnetic field (B) 2. Magnitude of the current (I) 3. Length of the conductor (L) within the magnetic field (and the angle between the current and the magnetic field). c) i. isolated north pole: Magnetic field lines would originate from the pole and radiate outwards in all directions. ii. isolated south pole: Magnetic field lines would converge towards the pole from all directions. iii. two dissimilar poles together (North and South): Magnetic field lines would emerge from the North pole and enter the South pole, forming continuous loops outside the magnets, indicating attraction. iv. two like poles together (North and North, or South and South): Magnetic field lines would emerge from both North poles (or enter both South poles) and repel each other, bending away from the region between the poles, indicating repulsion. Q6. a) A step-down transformer is an electrical device that converts high-voltage, low-current alternating current (AC) from its primary coil into low-voltage, high-current AC in its secondary coil. This is achieved by having fewer turns in the secondary winding compared to the primary winding. b) Five losses in a transformer: 1. Copper Losses (I²R Losses): Heat generated due to the resistance of the primary and secondary windings when current flows through them. 2. Eddy Current Losses: Circulating currents induced in the transformer core by the changing magnetic flux, leading to heat generation. 3. Hysteresis Losses: Energy loss due to the repeated magnetization and demagnetization of the transformer core material as the AC current reverses direction. 4. Flux Leakage: A portion of the magnetic flux produced by the primary winding does not link with the secondary winding, reducing efficiency. 5. Mechanical Losses (Humming Losses): Vibrations and noise produced by the alternating magnetic field. c) Four uses of a transformer: 1. Voltage Transformation: Stepping up or stepping down AC voltage for transmission and distribution of electrical power. 2. Impedance Matching: Matching the impedance between different circuits to maximize power transfer. 3. Isolation: Providing electrical isolation between two circuits, preventing direct current flow and enhancing safety. 4. Current Measurement: Used in current transformers to measure large AC currents safely. Last free one today — make it count tomorrow, or type /upgrade for unlimited.
