Describe the industrial preparation of nitric (V) acid using the Ostwald process, including the chemical equations for each step.
Chemistry
ScanSolve AI Answer
Step-by-step solution
4 stepshere is the solution to the question:
- The following is a flowchart that shows the industrial preparation of nitric (V) acid. (Since I cannot draw a flowchart, I will describe the steps sequentially.) Industrial Preparation of Nitric (V) Acid (Ostwald Process)
Catalytic Oxidation of Ammonia
Ammonia ($\text{NH}_3$) and air (source of $\text{O}_2$) are mixed and passed over a heated **platinum-rhodium catalyst** at about $800-900^\circ\text{C}$ and $4-10$ atmospheres pressure. This produces nitric oxide ($\text{NO}$) and water. $$ 4\text{NH}_3\text{(g)} + 5\text{O}_2\text{(g)} \xrightarrow{\text{Pt/Rh catalyst}} 4\text{NO(g)} + 6\text{H}_2\text{O(g)} $$Oxidation of Nitric Oxide
The hot nitric oxide is cooled and then reacted with excess air (oxygen) in an oxidation chamber. This converts nitric oxide to nitrogen dioxide ($\text{NO}_2$). $$ 2\text{NO(g)} + \text{O}_2\text{(g)} \rightarrow 2\text{NO}_2\text{(g)} $$Absorption of Nitrogen Dioxide in Water
The nitrogen dioxide is then passed into an absorption tower where it reacts with water, usually sprayed from the top. This forms nitric (V) acid ($\text{HNO}_3$) and regenerates nitric oxide ($\text{NO}$). $$ 3\text{NO}_2\text{(g)} + \text{H}_2\text{O(l)} \rightarrow 2\text{HNO}_3\text{(aq)} + \text{NO(g)} $$Recycling of Nitric Oxide
The nitric oxide ($\text{NO}$) produced in the absorption tower is recycled back to the oxidation chamber (Step 2) to be re-oxidized to nitrogen dioxide, making the process more efficient.
Was this helpful?
Still stuck on this one?
Ask a follow-up, and the answer starts from this question.
Got a different question?Ask your own question
More Chemistry Questions
QDescribe the industrial production of oxygen and the concentration of nitric acid.QThe following flow chart shows the industrial manufacture of Nitric (V) acid. a) Identify substance…QDescribe how nitric acid and sulfuric acid are manufactured.QHow is trioxonitrate (V) acid prepared in the laboratory?QDescribe the Contact Process for the industrial manufacture of sulfuric acid, including reactants…

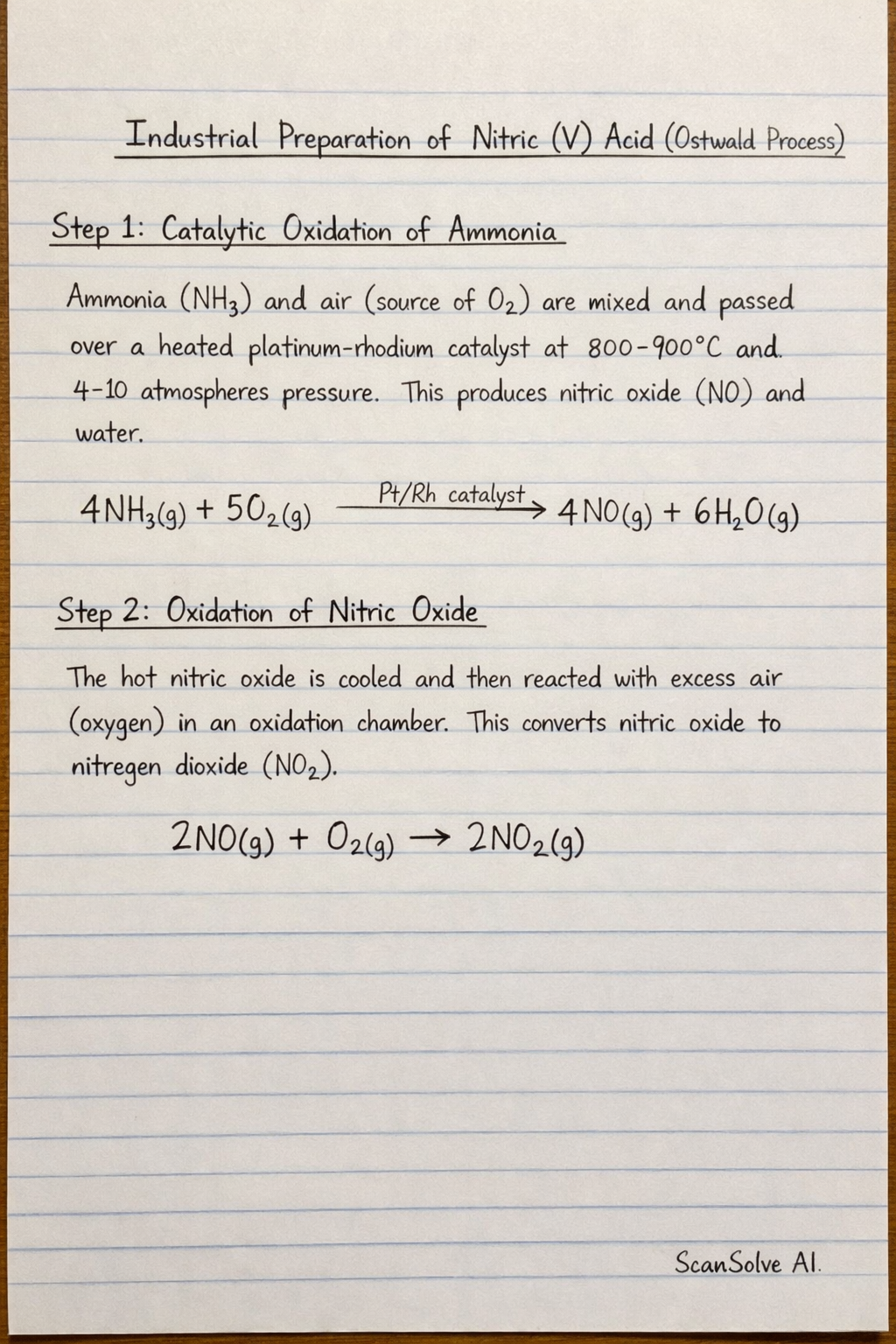

Handwritten Step-by-Step Solution
