Find the value of x calculate the reaction of the pivot

Chemistry

ScanSolve AI Answer

Step-by-step solution

6 steps

To solve this problem, we will use the principles of moments and forces for an object in equilibrium.

To find the value of x:
For the beam to be in rotational equilibrium, the sum of the clockwise moments about the pivot must equal the sum of the anticlockwise moments about the pivot.

  1. Identify the moments.

    • Anticlockwise moments:
      • Force of 30 N30 \text{ N} at 3 m3 \text{ m} from the pivot: 30 N×3 m30 \text{ N} \times 3 \text{ m}
      • Force of 40 N40 \text{ N} at 2 m2 \text{ m} from the pivot: 40 N×2 m40 \text{ N} \times 2 \text{ m}
    • Clockwise moment:
      • Force of x Nx \text{ N} at 3 m3 \text{ m} from the pivot: x N×3 mx \text{ N} \times 3 \text{ m}

  2. Apply the principle of moments.

    (30 N×3 m)+(40 N×2 m)=x N×3 m(30 \text{ N} \times 3 \text{ m}) + (40 \text{ N} \times 2 \text{ m}) = x \text{ N} \times 3 \text{ m} 90 N m+80 N m=3x N m90 \text{ N m} + 80 \text{ N m} = 3x \text{ N m} 170 N m=3x N m170 \text{ N m} = 3x \text{ N m}

  3. Solve for xx.

    x=170 N m3 mx = \frac{170 \text{ N m}}{3 \text{ m}} x=56.67 Nx = 56.67 \text{ N}

    The value of x is 56.67 N\boxed{56.67 \text{ N}}.

    To calculate the reaction of the pivot (R):
    For the beam to be in translational equilibrium, the sum of the upward forces must equal the sum of the downward forces.

  4. Identify the forces.

    • Upward force: RR (reaction force at the pivot)
    • Downward forces: 30 N30 \text{ N}, 40 N40 \text{ N}, and x Nx \text{ N}

  5. Apply the condition for translational equilibrium.

    R=30 N+40 N+x NR = 30 \text{ N} + 40 \text{ N} + x \text{ N}

  6. Substitute the value of xx found in the previous calculation.

    R=30 N+40 N+56.67 NR = 30 \text{ N} + 40 \text{ N} + 56.67 \text{ N} R=126.67 NR = 126.67 \text{ N}

    The reaction force R at the pivot is 126.67 N\boxed{126.67 \text{ N}}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Chemistry Questions

QFind value of xQA uniform plank of length 3.00 m and weight 44.0 N rests on two pivots, Y and X. Pivot Y is 0.30 m…QFind the value of x from the given determinant equation.Qb) i) State the principle of moments. ii) Determine the value of X, assuming that the beam is…QFind the value of x in the given triangle.
See all Chemistry questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

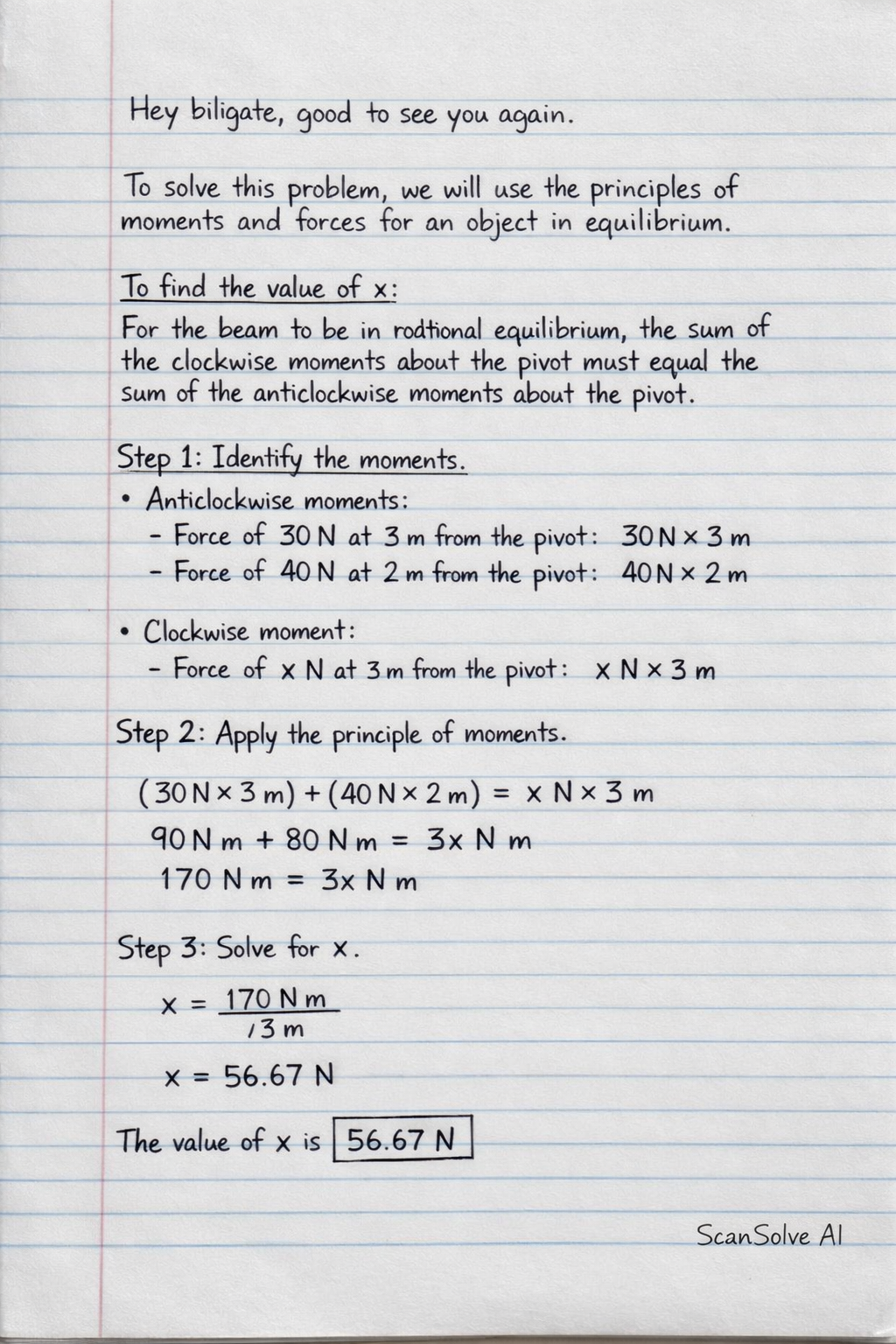

Handwritten step-by-step solution preview
