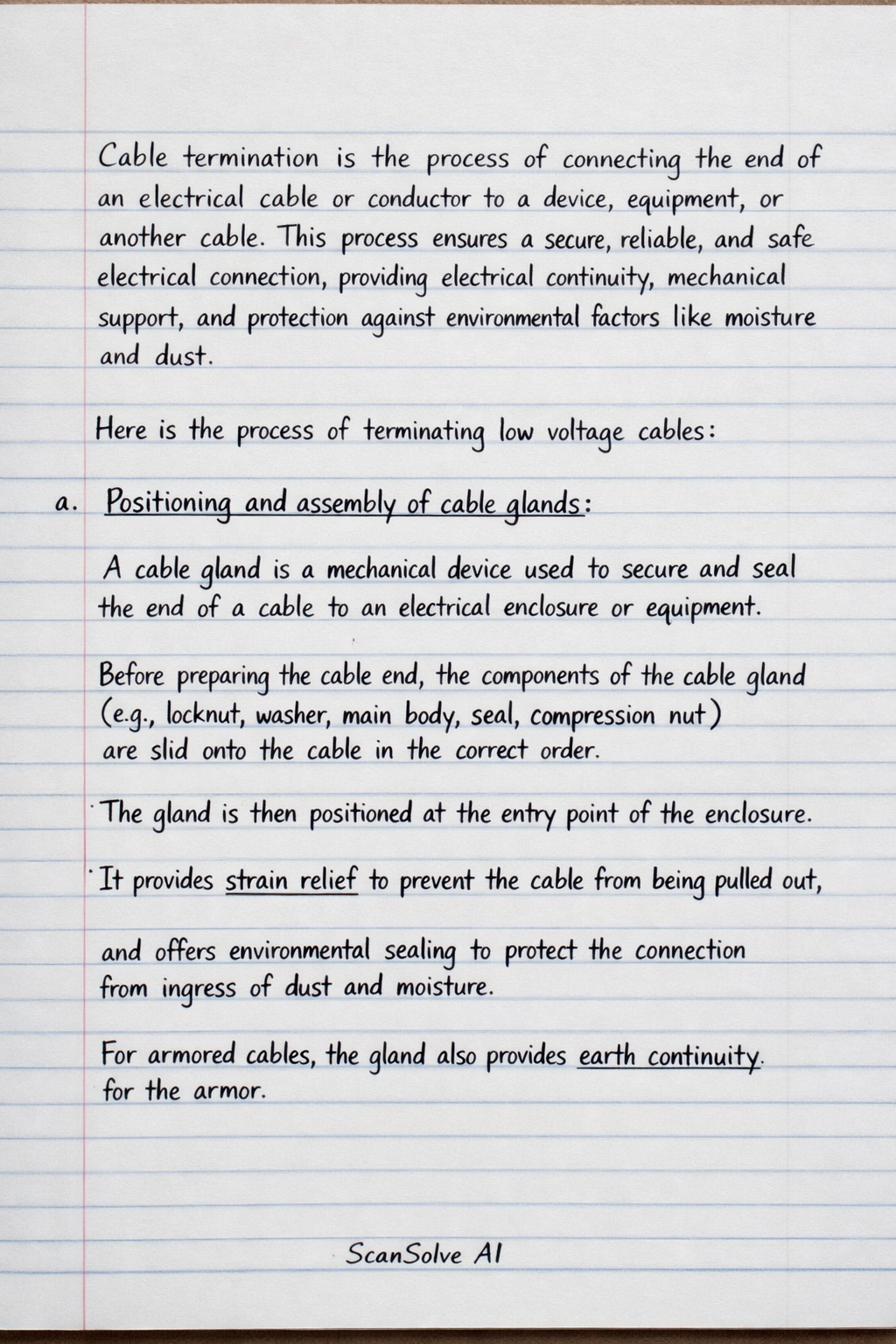

Cable termination is the process of connecting the end of an electrical cable or conductor to a device, equipment, or another cable. This process ensures a secure, reliable, and safe electrical connection, providing electrical continuity, mechanical support, and protection against environmental factors like moisture and dust. Here is the process of terminating low voltage cables: a. Positioning and assembly of cable glands: A cable gland is a mechanical device used to secure and seal the end of a cable to an electrical enclosure or equipment. Before preparing the cable end, the components of the cable gland (e.g., locknut, washer, main body, seal, compression nut) are slid onto the cable in the correct order. The gland is then positioned at the entry point of the enclosure, providing strain relief to prevent the cable from being pulled out and offering environmental sealing to protect the connection from ingress of dust and moisture. For armored cables, the gland also provides earth continuity for the armor. b. Preparation of cable ends: The cable end is carefully prepared according to the type of cable and the termination method. This involves: • Removing the outer sheath of the cable to expose the inner conductors. • For armored cables, cutting back the armor to the appropriate length and securing it within the cable gland. • Stripping the insulation from each individual conductor to expose the bare copper or aluminum conductor. The length of insulation removed must be precise to ensure full contact with the terminal without exposing excess bare conductor or trapping insulation under the terminal. • If required, crimping appropriate lugs or ferrules onto the exposed conductors to ensure a robust and reliable connection, especially for stranded cables. c. Securing and tightening of connections: Once the cable ends are prepared, the conductors are connected to the designated terminals of the equipment or device. • Each prepared conductor (with or without a lug/ferrule) is inserted into its respective terminal. • Connections are then secured by tightening screws, bolts, or using spring-loaded mechanisms. It is crucial to tighten connections to the manufacturer's specified torque settings using a calibrated torque tool. • Under-tightening can lead to high resistance, overheating, and potential fire hazards, while over-tightening can damage the conductor, terminal, or insulation. • Finally, the cable gland's compression nut is tightened to secure the cable firmly in place and complete the environmental seal. All connections are visually inspected to ensure no stray strands are present and that polarity and phase sequence are correct.
