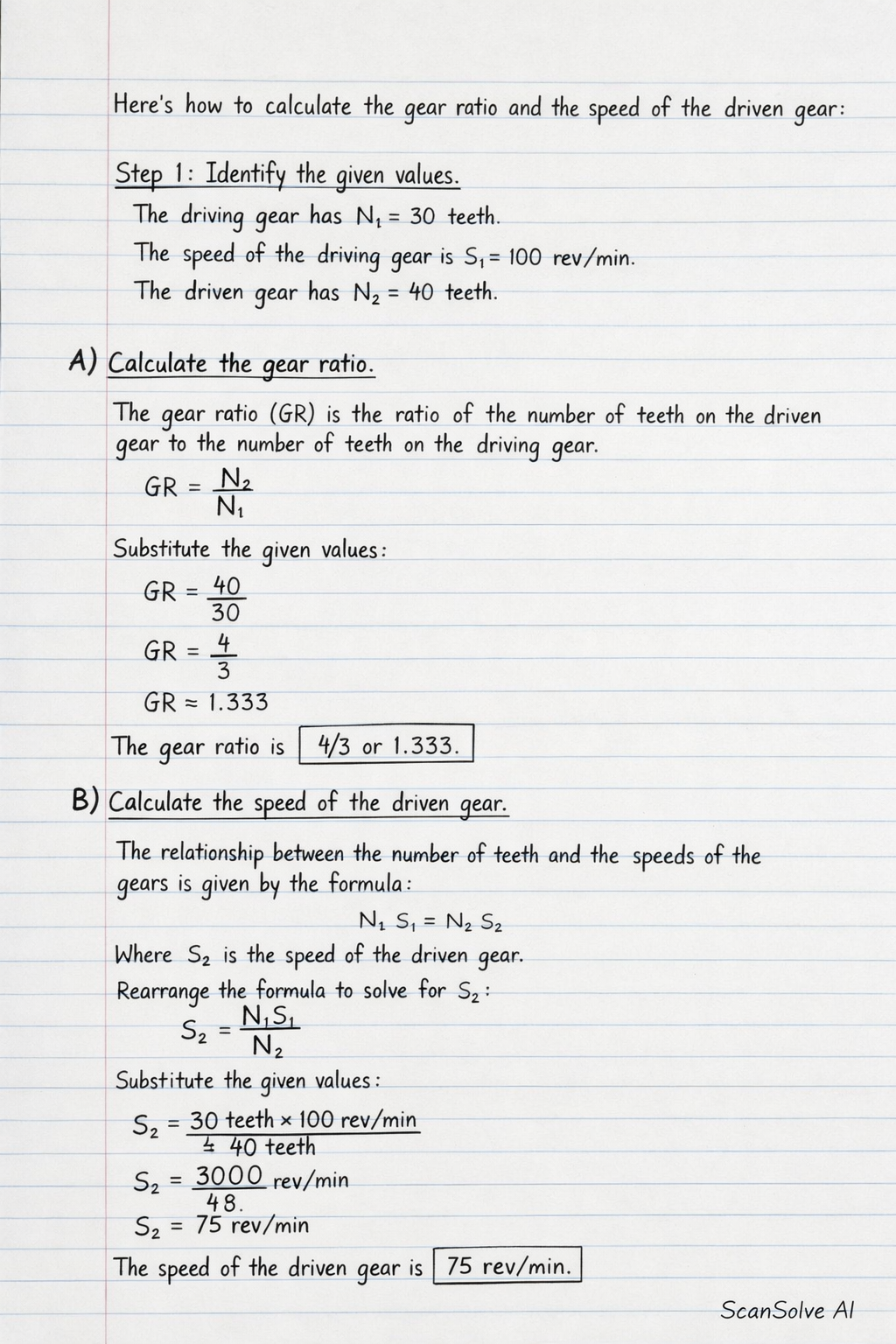

Here's how to calculate the gear ratio and the speed of the driven gear: Step 1: Identify the given values. The driving gear has N_1 = 30 teeth. The speed of the driving gear is S_1 = 100 rev/min. The driven gear has N_2 = 40 teeth. A) Calculate the gear ratio. The gear ratio (GR) is the ratio of the number of teeth on the driven gear to the number of teeth on the driving gear. GR = (N_2)/(N_1) Substitute the given values: GR = (40)/(30) GR = (4)/(3) GR ≈ 1.333 The gear ratio is 4/3 or 1.333. B) Calculate the speed of the driven gear. The relationship between the number of teeth and the speeds of the gears is given by the formula: N_1 S_1 = N_2 S_2 Where S_2 is the speed of the driven gear. Rearrange the formula to solve for S_2: S_2 = (N_1 S_1)/(N_2) Substitute the given values: S_2 = 30 teeth × 100 rev/min40 teeth S_2 = (3000)/(40) rev/min S_2 = 75 rev/min The speed of the driven gear is 75 rev/min. Send me the next one 📸
