We read your photo as:
2.1 Two or more spur gears meshed together are called a ... A. Pinion B. Gear train C. Gear ratio D. Idler gears
Physics
ScanSolve AI Answer
Answer
B
Gear train
Here is the corrected answer for question 1.2.1:
1.2. Underline the correct answer.
- 1.2.1: Two or more spur gears meshed together are called a...
- When two or more gears are meshed together to transmit motion and power, the entire assembly is known as a gear train. A pinion is a single gear, typically the smaller one in a pair.
- Answer: B. Gear train
Was this helpful?
Try one yourself
A new problem that tests the same skill.
Still stuck on this one?
Ask a follow-up, and the answer starts from this question.
Got a different question?Ask your own question
More Physics Questions
Q2.3 What type of gear train is shown in the photograph? 1.2.4 A camera tripod uses which type of…QIn a given gear system, a driven gear with 30 teeth has a speed of 100rev/min, drives the driven…QExplain the direction of rotation for meshing gears and the role and effect of idler gears in a gear…Q3.3 Do you think geartrain B will provide a speed advantage? Explain your answer. 1.3.4 Explain how…QA 20° involute pinion with a pitch circle diameter of 192 mm is meshing gear. Calculate: The…

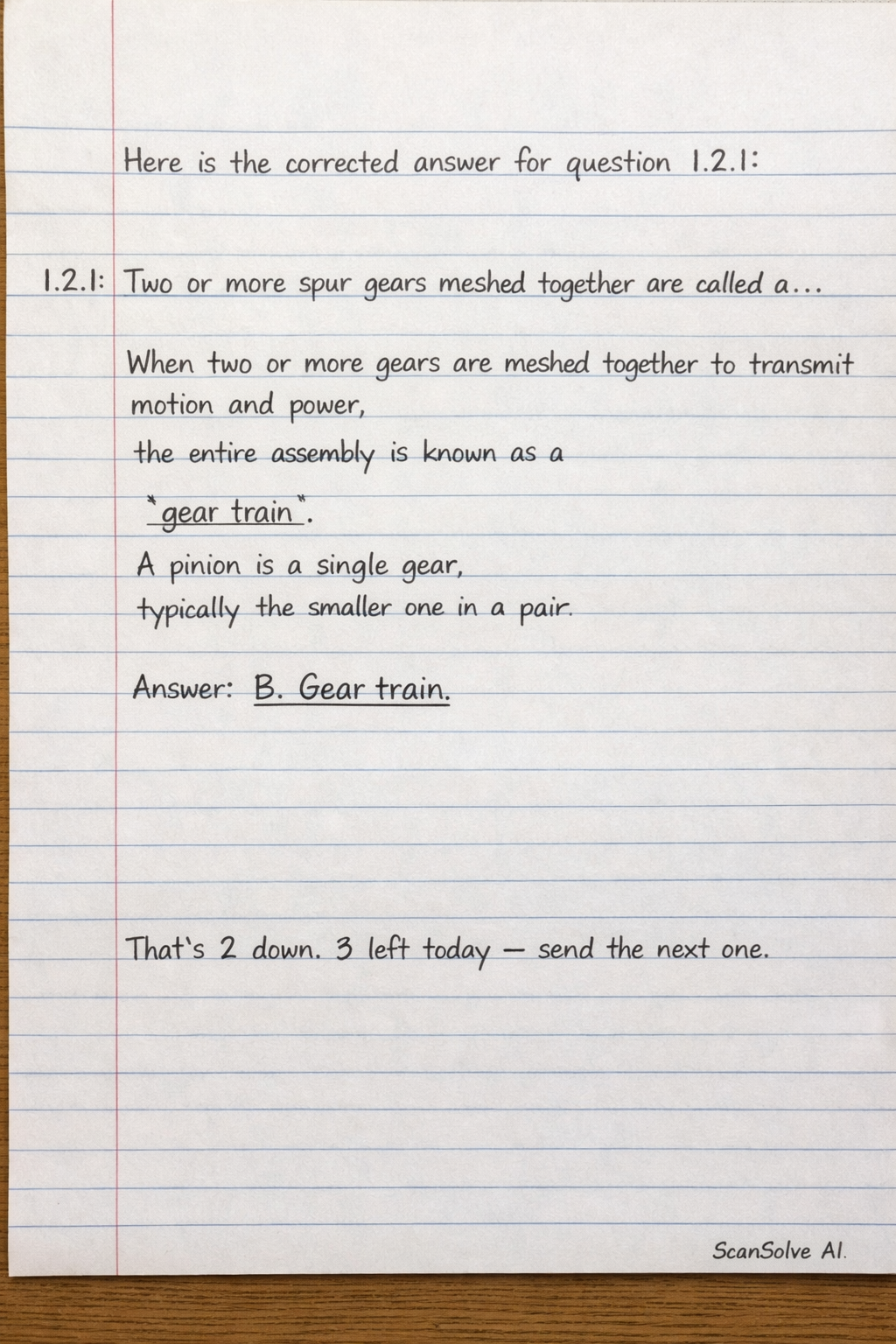

Handwritten Step-by-Step Solution
